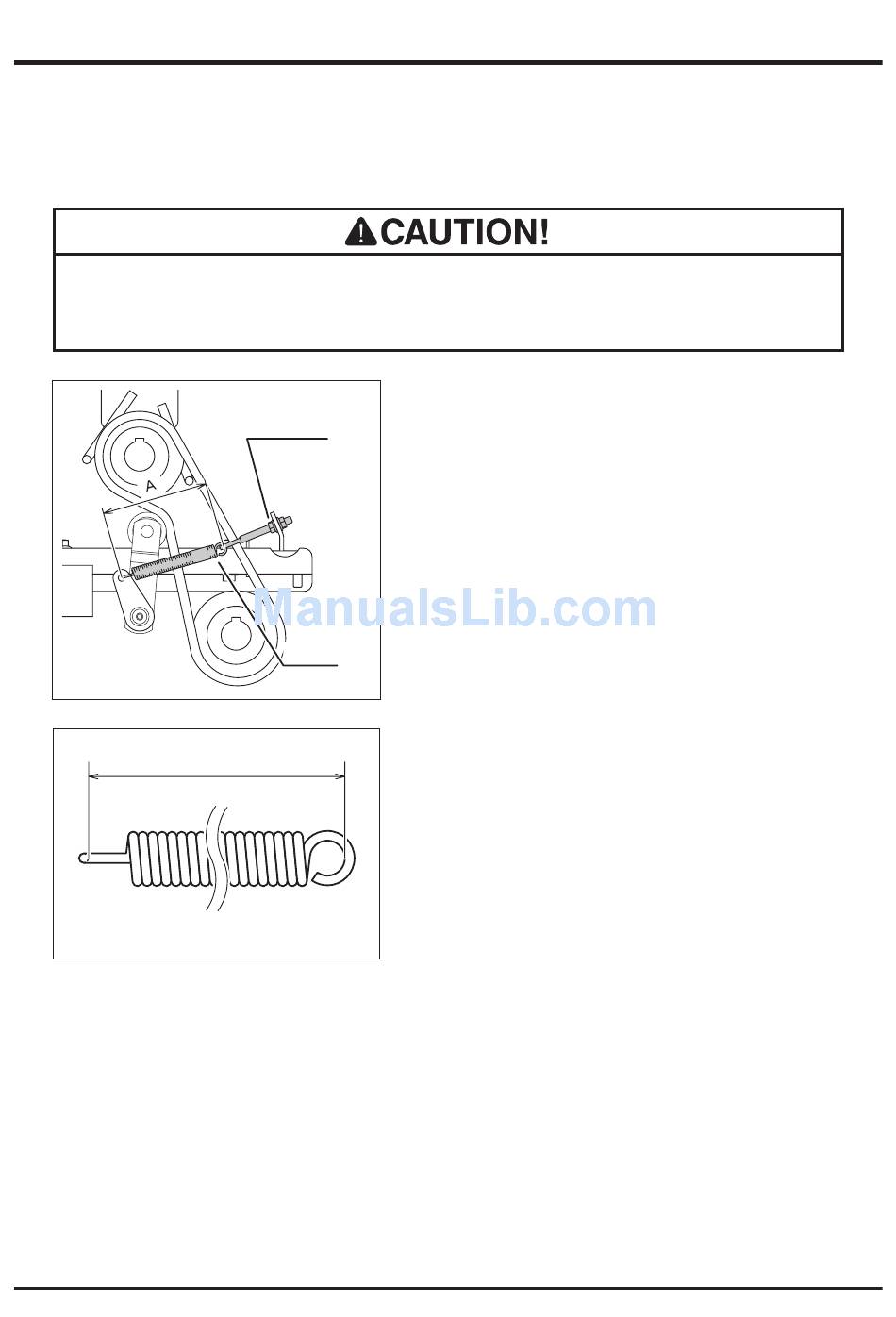

Drive Belt
• Adjust belt tension properly. Inproperly tensioned belt may reduce performance
and its service life.
5321M-0508-100E
5323M-0508-030E
Maintenance
Adjust Nut
Spring
A
1.
Remove upper rear cover.
2.
Check V-belt tension. Inspect that the length
A of spring is within the range of 135mm+/-
3mm. If it is out of this range, adjust spring
with adjust nut.
3.
Visually inspect belt. Replace belt if it is
damaged. For replacement, contact your
CANYCOM representative.
4.
Install upper rear cover back in place.
