Drain Plug
5347M-0507-060E
Maintenance
HST Oil Reservoir
MIN
Release Lever
Inspecting

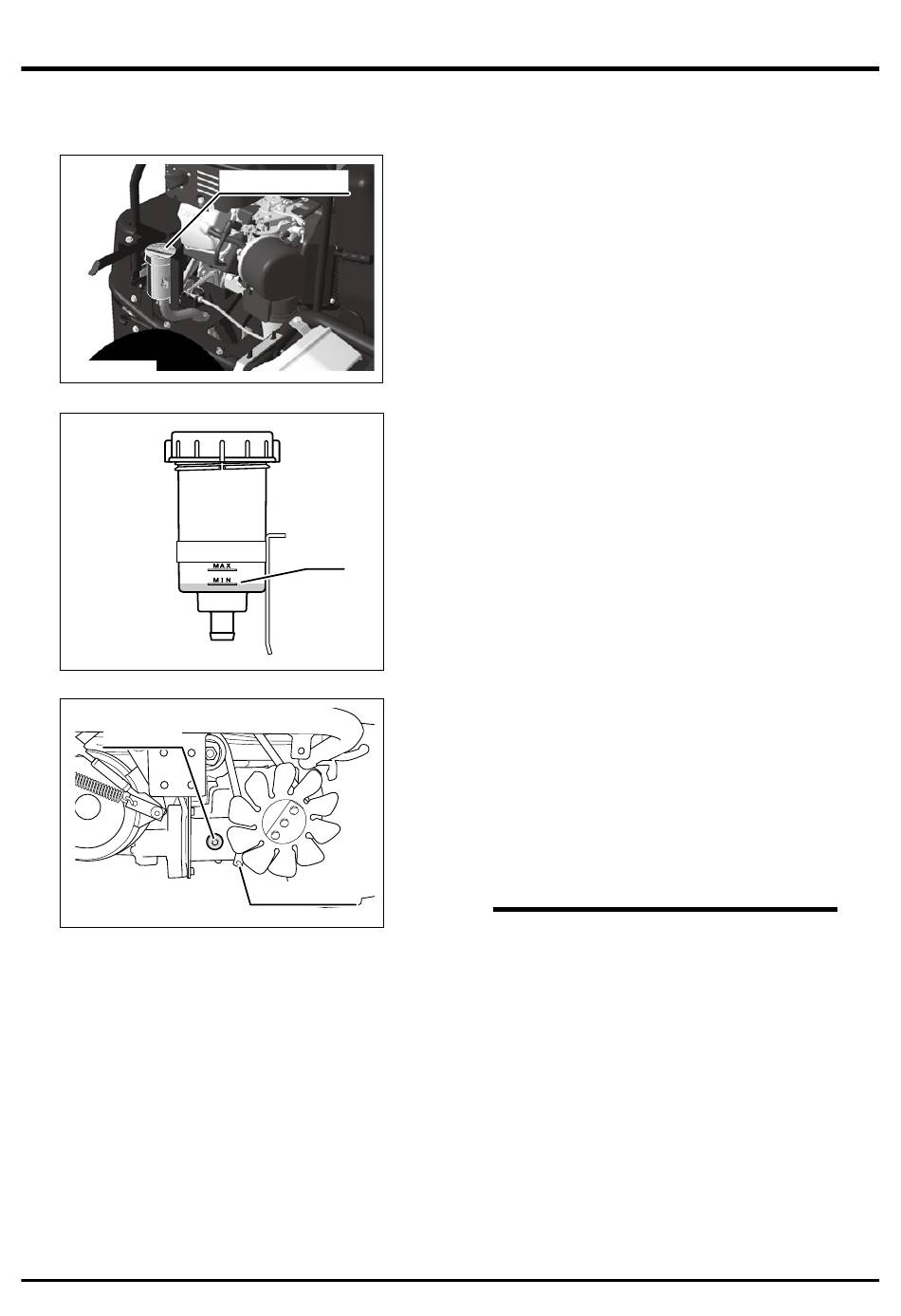

1. Park machine on level ground.
2. Remove right rear fender.
3. Visually inspect that oil level is between [MIN]
and [MAX] lines on oil reservoir. If it is below
[MIN], fill oil.
4. Install right rear fender.
Filling
1. Remove right rear fender.
2. Remove cap on HST oil reservoir.
3. Fill specified HST fluid into reservoir so that
oil level is above [MIN] line on reservoir.
4. Reinstall cap back in place and screw it
securely.
5. Install right rear fender.
Changing
1. Remove right rear fender.
2. Remove lower rear cover.
3. Have an appropriate oil drain pan.
4. Remove filler cap.
5. Remove drain plug to drain HST oil.
NOTE
• HST system cannot be fully drained due to
its design.
• Do not operate drive pedal or drive lever
with HST oil drained. Doing so lets air
into the circuit, necessitating to bleed the
circuit.
