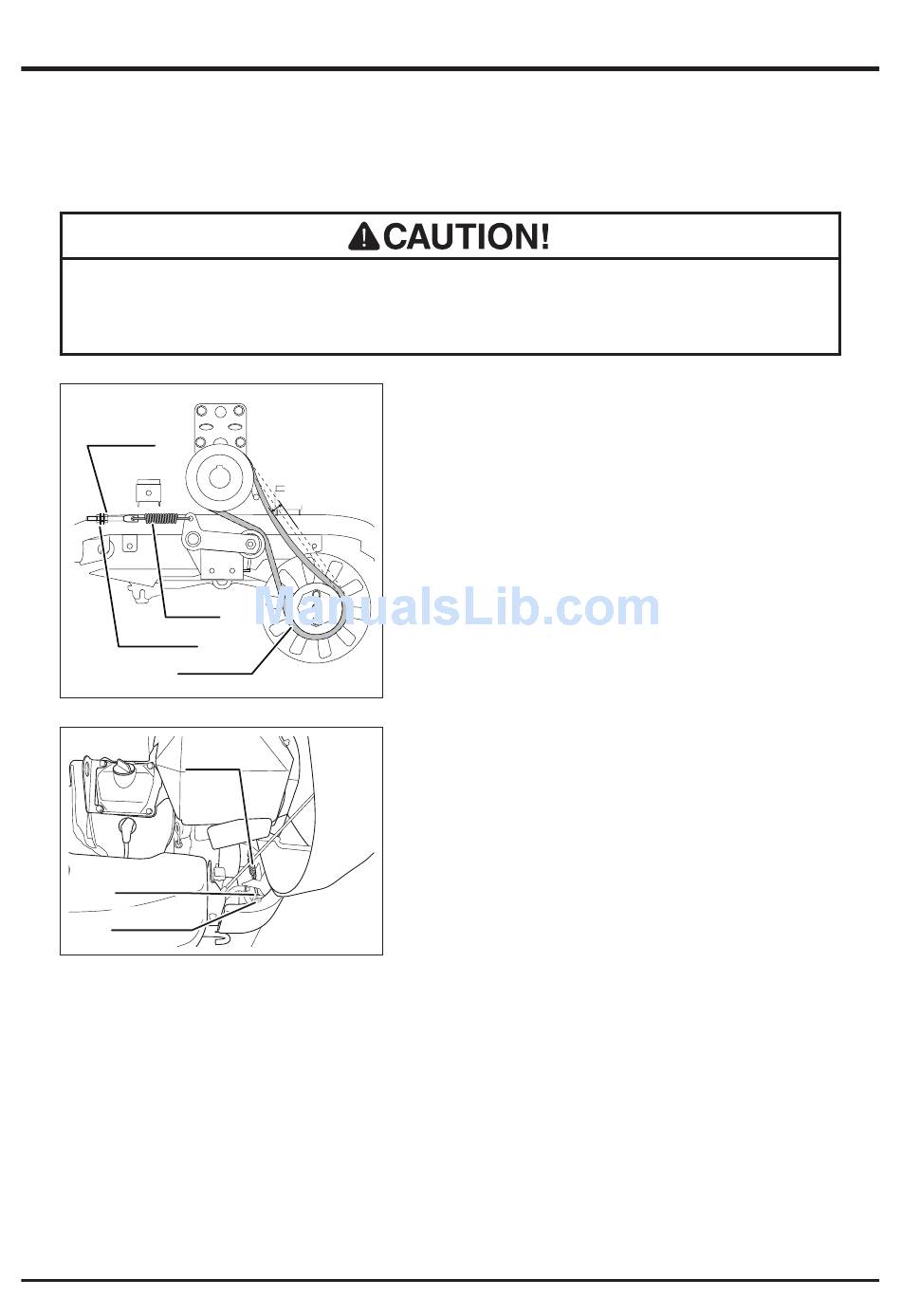

Drive Belt
• Adjust belt tension properly. Inproperly tensioned belt may reduce performance
and its service life.
Lock Nut
Spring
Adjust Nut
Drive Belt
5347M-0507-080E
Spring
Lock Nut
Adjust Nut
5332M-0507-110E
Maintenance
1.
2.
A
3.
4.
-65-
Open engine hood.
Check V-belt tension. Push V- belt by finger
and check that deflection at center point A is
in the range of 10 to 20 mm. If it is out of this
range, adjust with adjust nut.
Visually inspect belt. Replace belt if it is
damaged. For replacement, contact your
CANYCOM representative.
Close engine hood.
5
