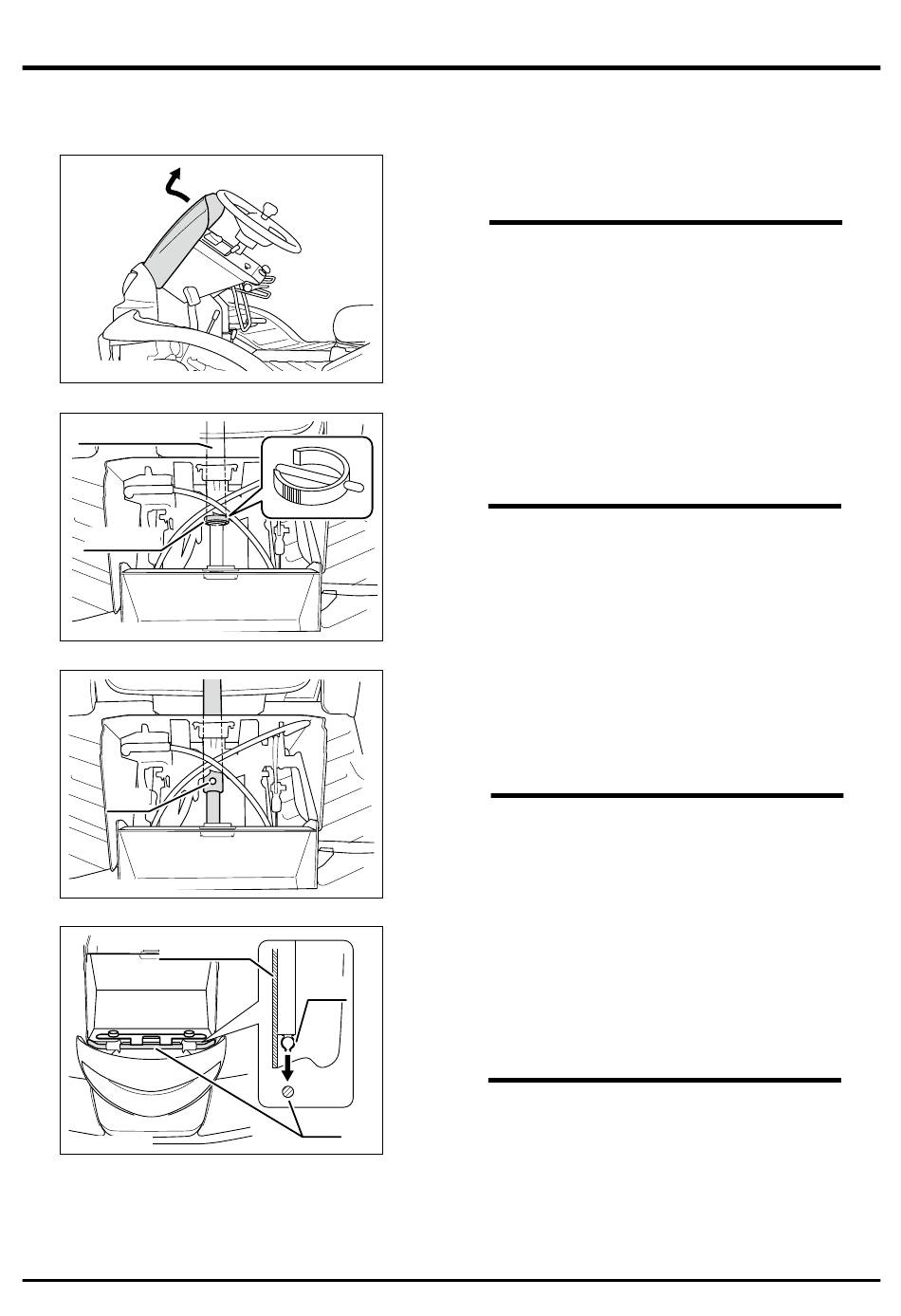

Steering Column
Fixing Pin
5332M-0401-120E
Hole
5332M-0401-130E
Front Cover
5332M-0401-140E
Operation
2. Pull out front cover.
NOTE
• Inside of the front cover is made as tool
box. Use this box to store items such as
tools or substitute cutting blades.
3. Remove fixing pin from steering column in
the front of machine.
NOTE
• If fixing ping is in the difficult direction to
remove, steer the steering wheel to change
direction of the pin so that the pin can be
easily removed.
4. Adjust steering wheel height in prefered
position. Line up holes on steering shafts and
insert pin.
NOTE
• Move steering wheel up and down to check
if the steering wheel is fixed securely.
5. Raise steering wheel angle.
6. Fit clip on back side of front cover into the
Clip
rod.
7. Latch top edge of the front cover.
NOTE
• Pay attention not to catch the front cover by
Rod
the plate on both sides when installing front
cover.
