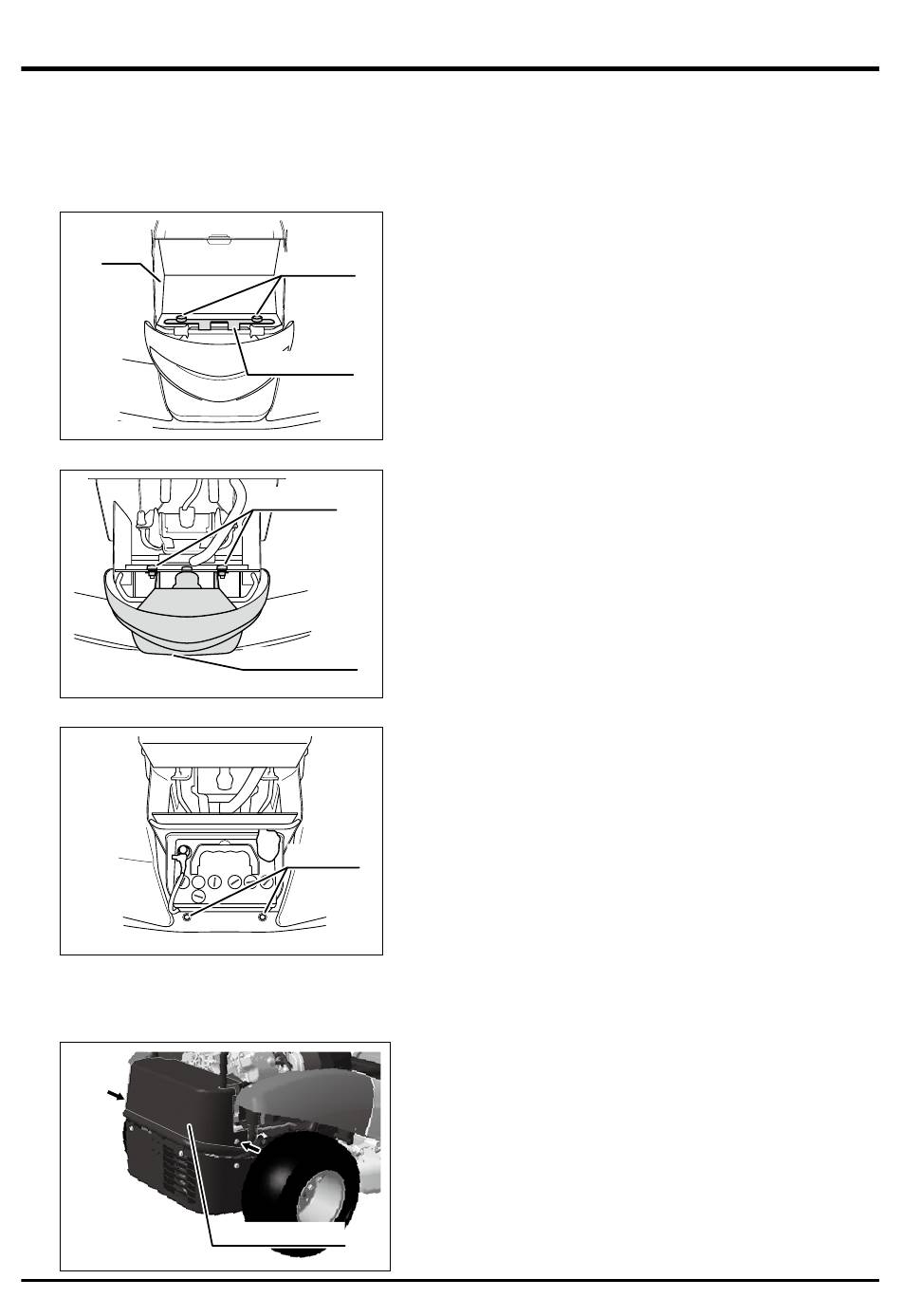

Head Lamp

Tray
5332M-0509-030E
5347M-0509-040E
5332M-0509-060E

Upper Rear Cover

5355M-0505-030E
Maintenance
Knob Bolt
Fixing Bracket
Flange Bolt
Head Lamp Unit
Grommet
Upper Rear Cover
1. Remove front cover.
2. Remove 2 knob bolts fixing the tray.
3. Remove fixing bracket and lift tray.
4. Remove 2 flange bolts fixing head lamp unit
to remove head lamp unit.
5. Insert projections at the bottom of head lamp
unit into holes of grommet on bumper and
install it in reverse order.
1. Remove 2 bolts.
2. Remove upper rear cover.
-51-
