5

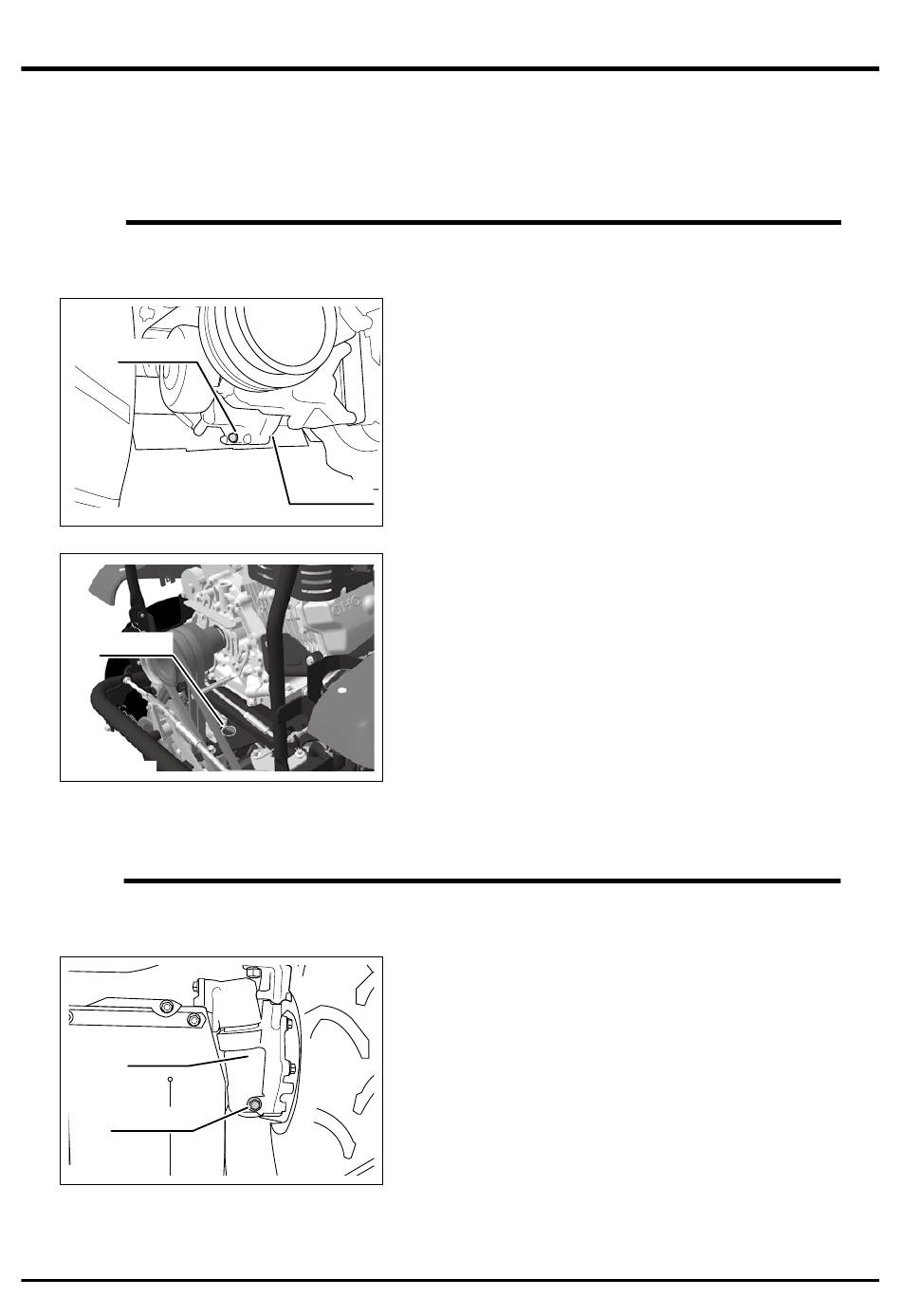

Transmission Oil
NOTE
• Oil to use and capacity: Page 45.
Drain Plug
5332M-0507-040E
Filler Cap
5355M-0507-010E
Front Axle Oil (CMX1402)
NOTE
• Oil to use and capacity: Page 45.
Knuckle
Drain Plug
5332M-0507-100E
Maintenance
1.
Park machine on level ground.
2.
Have an appropriate oil drain pan.
3.
Remove transmission oil drain plug to drain
oil.
4.
Install drain plug back in place.
Check Bolt
5.
Remove upper rear cover.
6.
Remove transmission oil filler cap.
7.
Remove check bolt.
8.
Fill specified amount of correct oil into filler,
up to check bolt hole.
9.
Put check bolt back in place.
10. Put filler plug back in place.
11. Install upper rear cover.
1.
Park machine on level ground.
2.
Have an appropriate oil drain pan.
3.
Remove drain plug on the left front knuckle
to drain oil.
4.
Remove drain plug on the right front knucle
to drain oil as well.
-60-
