Head Lamp

Tray
5332M-0509-030E
Head Lamp Unit
5332M-0509-040E
5332M-0509-060E
Maintenance
3.
Clip
4.
NOTE
Rod
1.
2.
Knob Bolt
3.
Fixing Bracket
4.
Knob Bolt
5.
Grommet

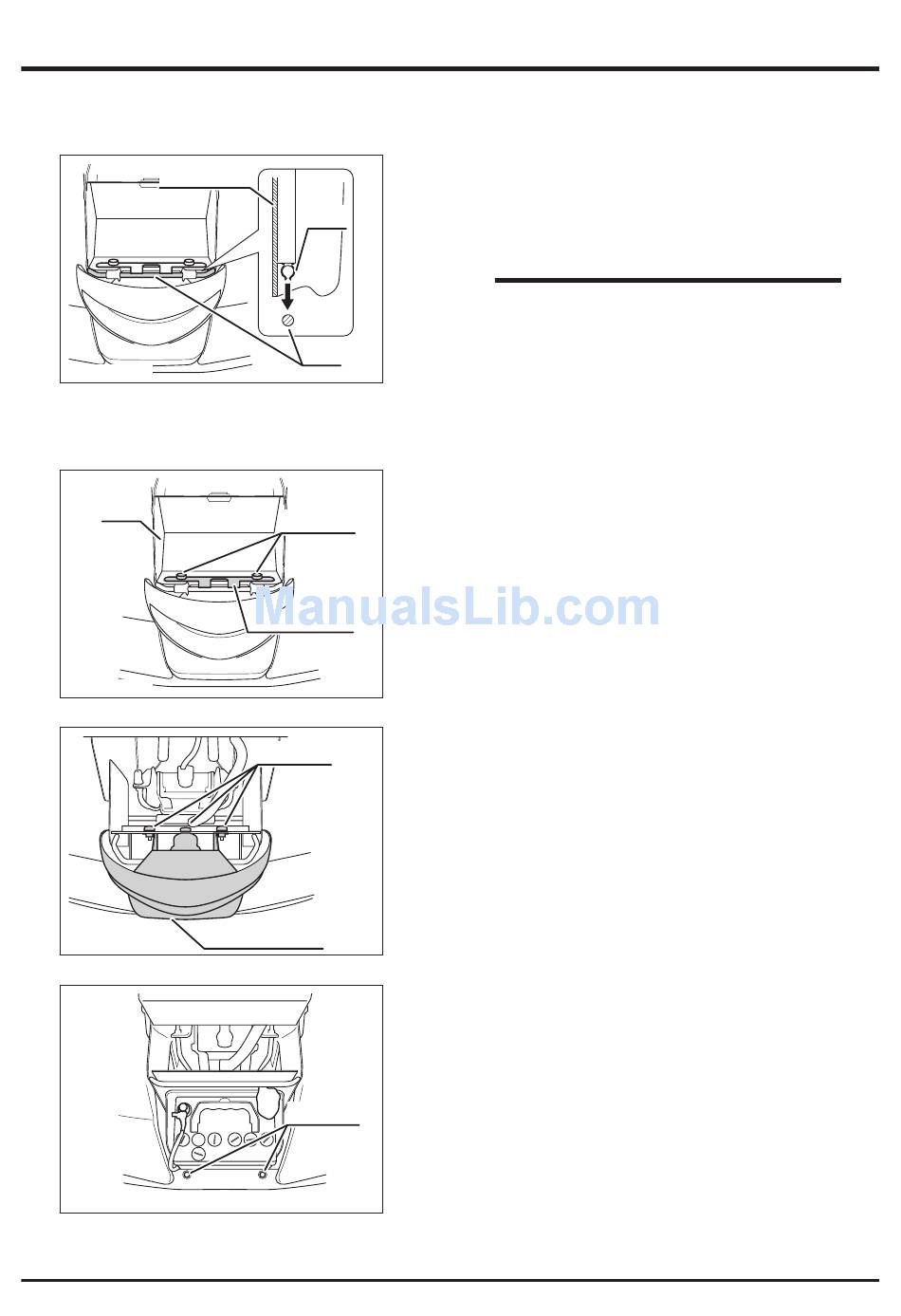

Raise steering wheel to the maximum angle
and fit clip on the back of front cover to rods.
Fit upper part of front cover.
• Beware not to catch front cover by the
plates on both sides when you installing
front cover.
Remove front cover.
Remove 2 knob bolts fixing the tray.
Remove fixing bracket and lift tray.
Remove 3 knob bolts fixing head lamp unit to
remove head lamp unit.
Insert projections at the bottom of head lamp
unit into holes of grommet on bumper and
install adversely.
