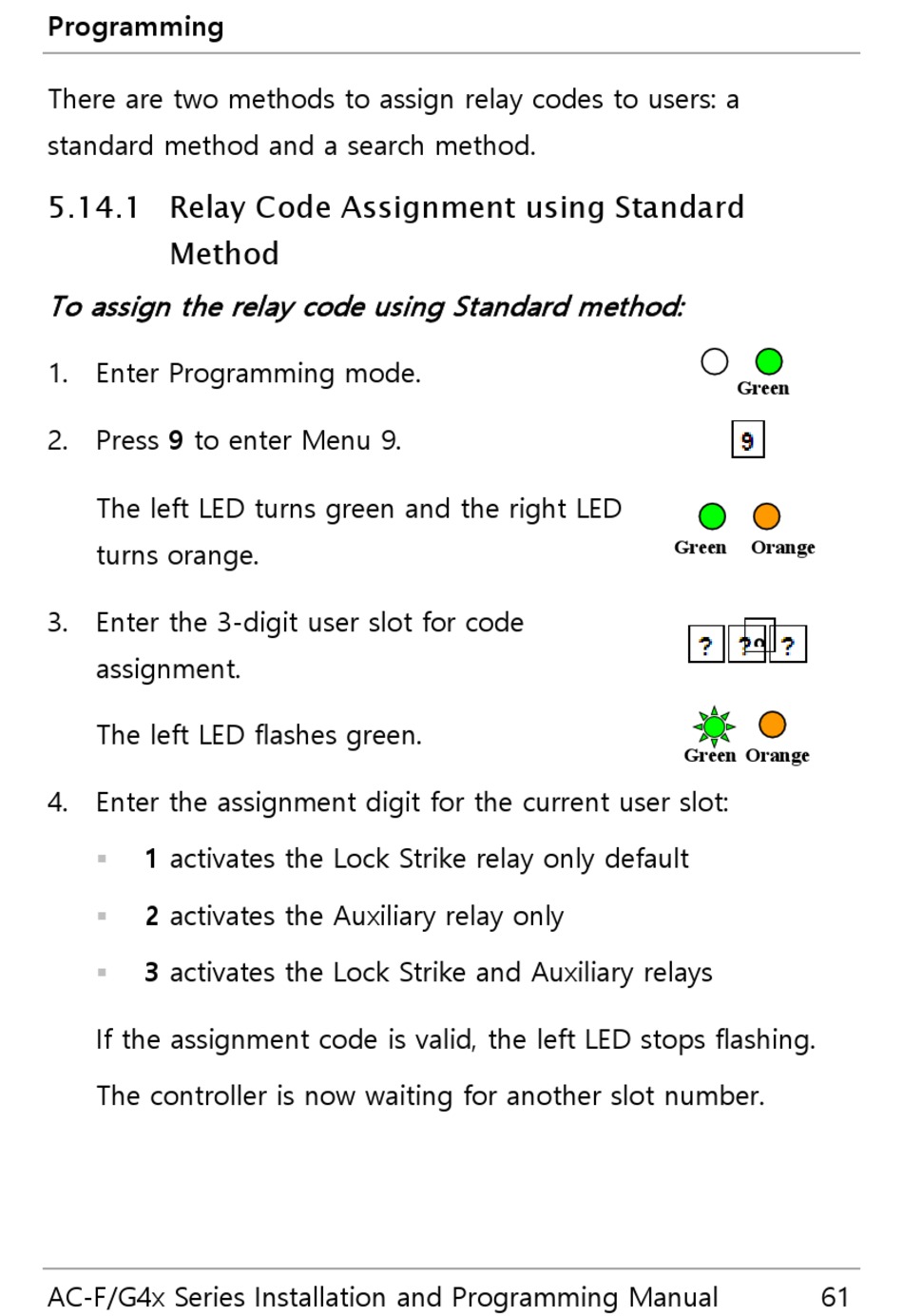

Programming
There are two methods to assign relay codes to users: a
standard method and a search method.
5.14.1 Relay Code Assignment using Standard
Method
To assign the relay code using Standard method:
1. Enter Programming mode.
2. Press 9 to enter Menu 9.
The left LED turns green and the right LED
turns orange.
3. Enter the 3-digit user slot for code
assignment.
The left LED flashes green.
4. Enter the assignment digit for the current user slot:
1 activates the Lock Strike relay only default

2 activates the Auxiliary relay only

3 activates the Lock Strike and Auxiliary relays

If the assignment code is valid, the left LED stops flashing.
The controller is now waiting for another slot number.
AC-F/G4x Series Installation and Programming Manual
Green
Green Orange
9
Green Orange
61
