Installation

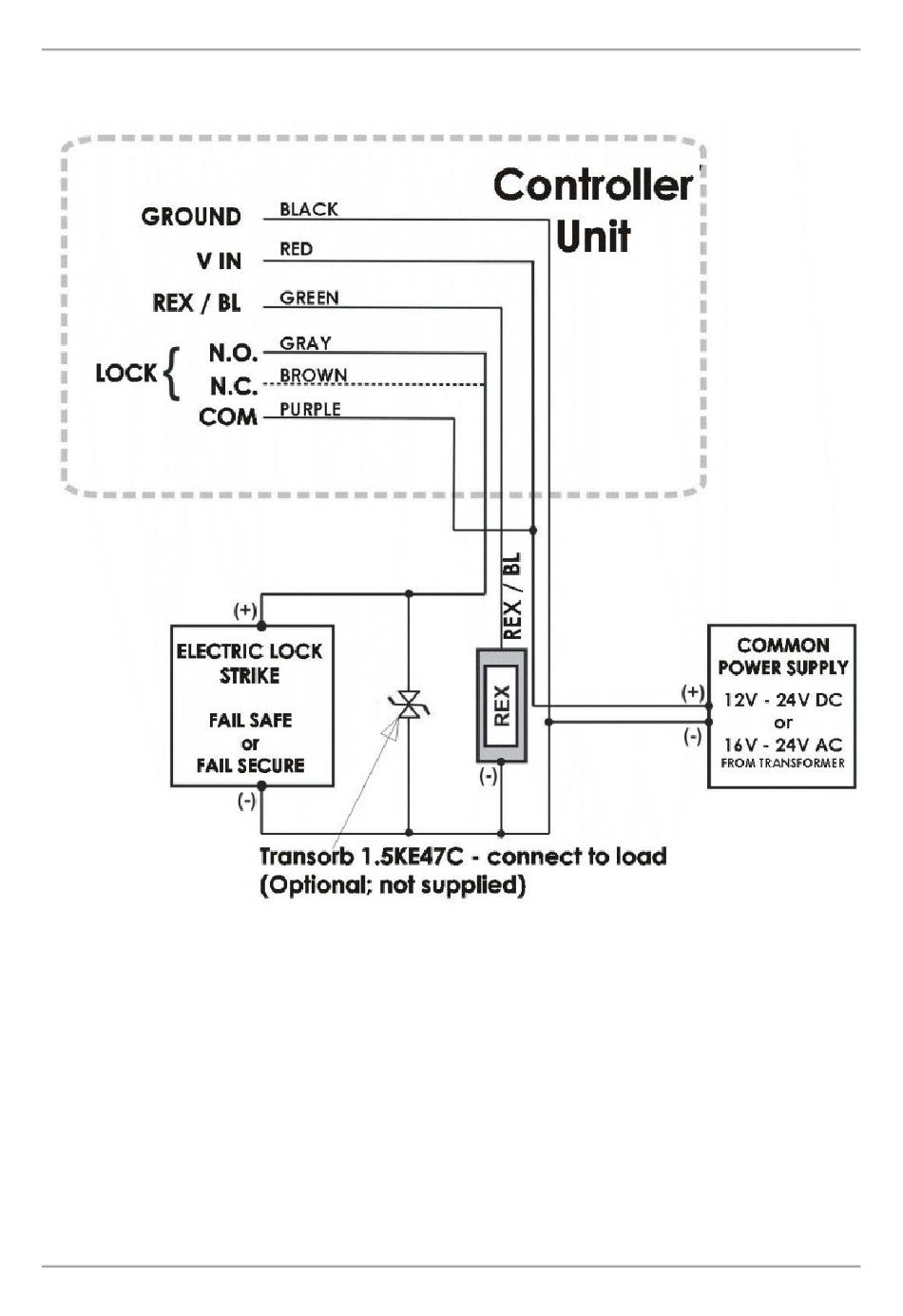

Figure 2: Wiring Diagram for Lock Strike Relay and REX
20
AC-F/G4x Series Installation and Programming Manual
