Installation
5. Drill an additional 10-mm (
installing the reader on a metallic surface, cover the inside of
the hole with a grommet or electrical tape.
6. Insert the unit's cable wire into the cable hole and wire the
unit as described in Section 3.2.
7. Screw the back plate into the surface. Ensure the screws are
the size specified on the installation template.
The unit can also be mounted using strong epoxy glue.
After application, firmly hold the unit in place until the glue
dries.
8. Carefully re-attach the front cover of the unit.
9. Secure the front cover by using the supplied security Torx
screw. A Torx security screw tool is provided to tighten the
security Torx screw.
AC-F/G4x Series Installation and Programming Manual

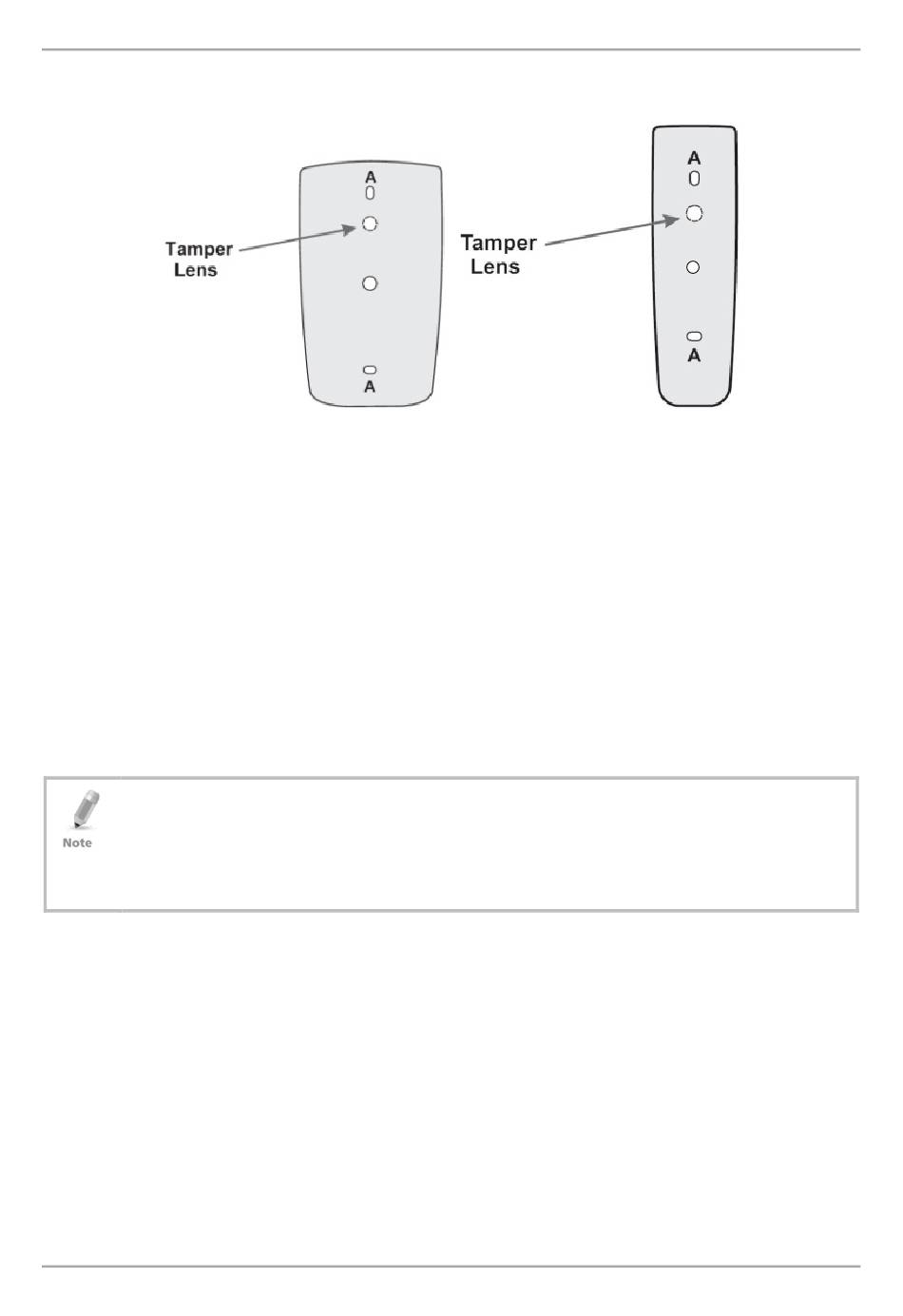

Figure 1: Drilling Holes Identification

/ ") hole for the cable. When
