Technical Information

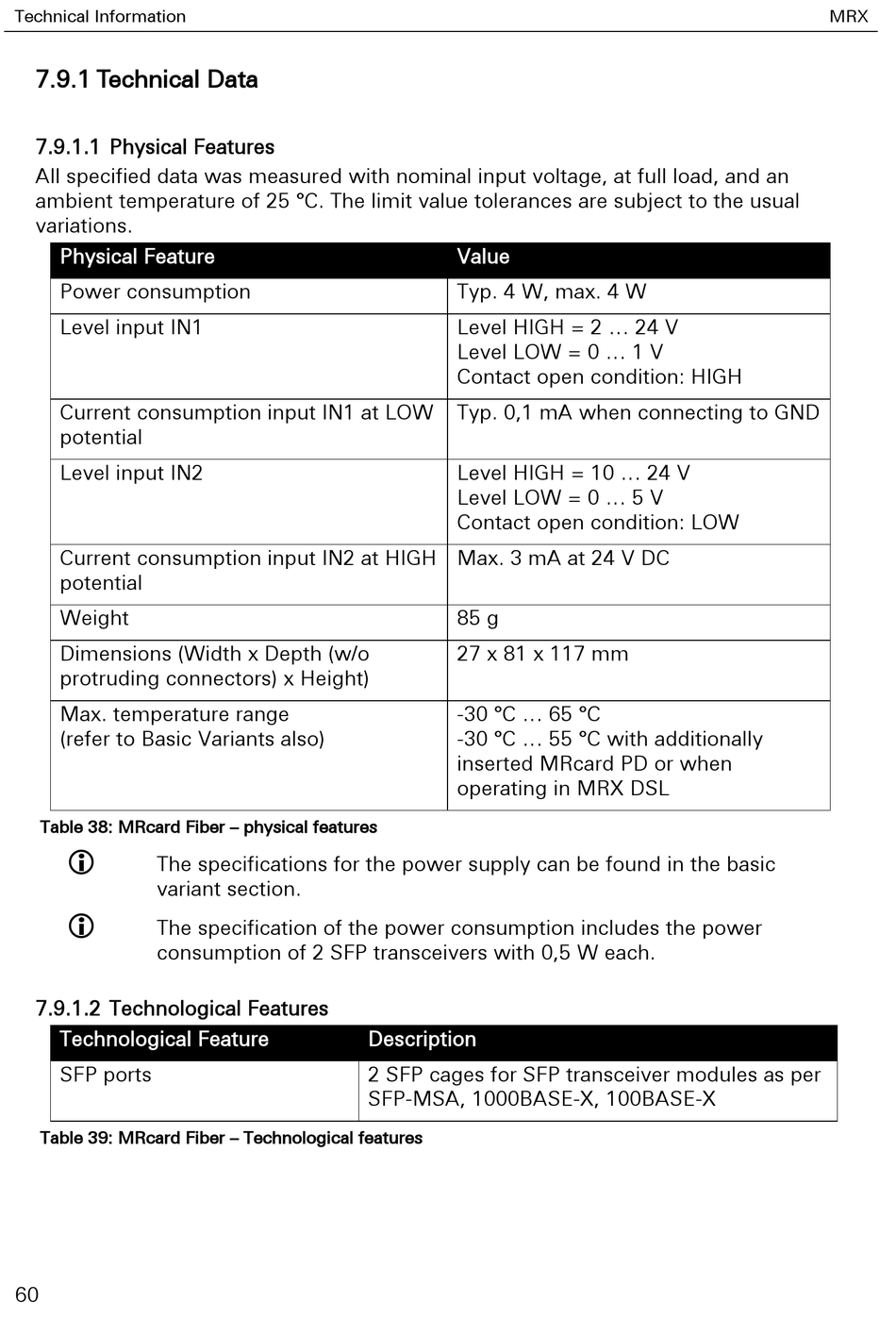

7.9.1 Technical Data
7.9.1.1 Physical Features
All specified data was measured with nominal input voltage, at full load, and an
ambient temperature of 25 °C. The limit value tolerances are subject to the usual
variations.
Physical Feature
Power consumption
Level input IN1
Current consumption input IN1 at LOW
potential
Level input IN2
Current consumption input IN2 at HIGH
potential
Weight
Dimensions (Width x Depth (w/o
protruding connectors) x Height)
Max. temperature range
(refer to Basic Variants also)
Table 38: MRcard Fiber – physical features
The specifications for the power supply can be found in the basic
variant section.
The specification of the power consumption includes the power
consumption of 2 SFP transceivers with 0,5 W each.
7.9.1.2 Technological Features
Technological Feature
SFP ports
Table 39: MRcard Fiber – Technological features
60
Value
Typ. 4 W, max. 4 W
Level HIGH = 2 ... 24 V
Level LOW = 0 ... 1 V
Contact open condition: HIGH
Typ. 0,1 mA when connecting to GND
Level HIGH = 10 ... 24 V
Level LOW = 0 ... 5 V
Contact open condition: LOW
Max. 3 mA at 24 V DC
85 g
27 x 81 x 117 mm
-30 °C ... 65 °C
-30 °C ... 55 °C with additionally
inserted MRcard PD or when
operating in MRX DSL
Description
2 SFP cages for SFP transceiver modules as per
SFP-MSA, 1000BASE-X, 100BASE-X
MRX
