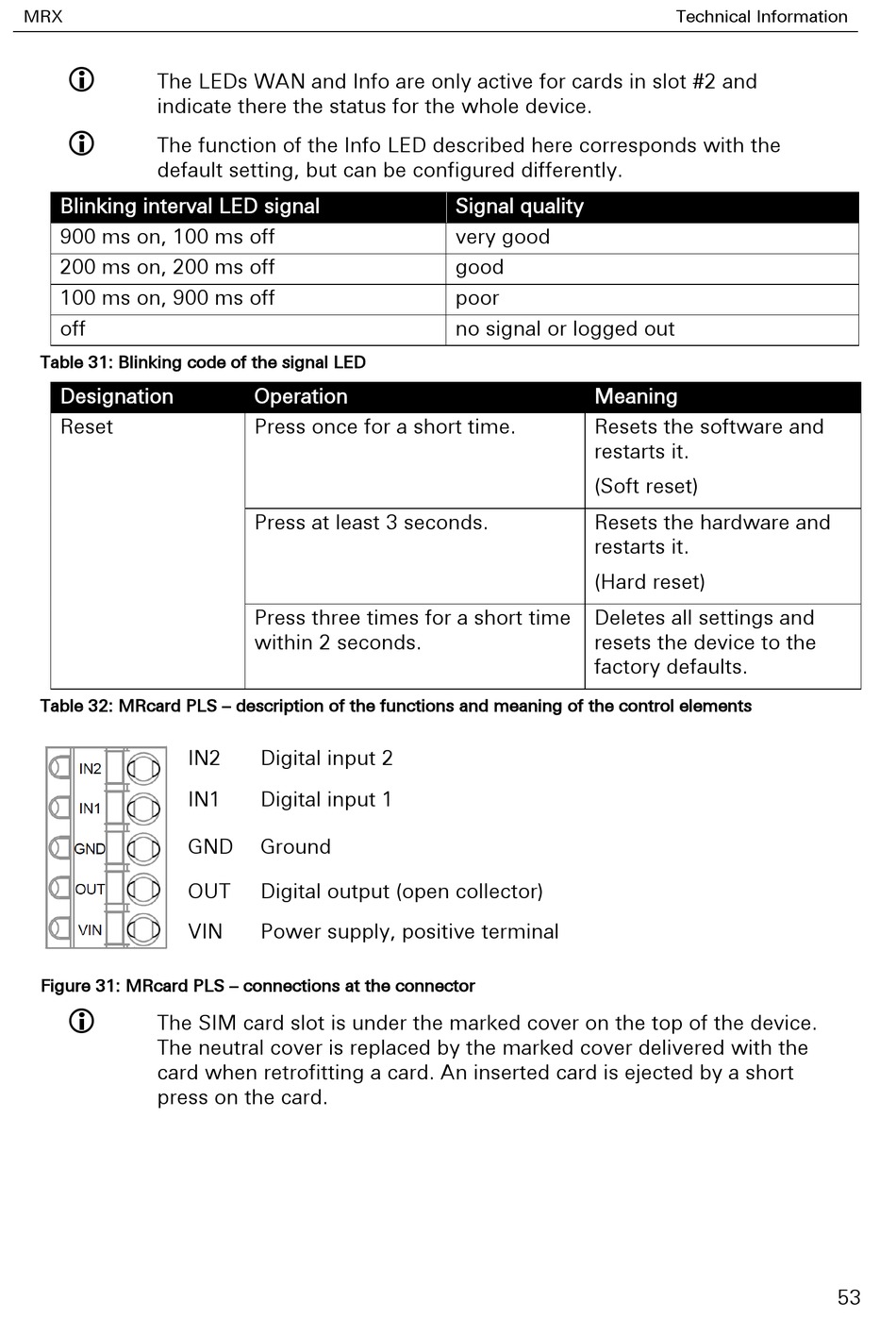

MRX
The LEDs WAN and Info are only active for cards in slot #2 and
indicate there the status for the whole device.
The function of the Info LED described here corresponds with the
default setting, but can be configured differently.
Blinking interval LED signal
900 ms on, 100 ms off
200 ms on, 200 ms off
100 ms on, 900 ms off
off
Table 31: Blinking code of the signal LED
Designation
Reset
Table 32: MRcard PLS – description of the functions and meaning of the control elements
IN2
IN1
GND
OUT
VIN
Figure 31: MRcard PLS – connections at the connector
The SIM card slot is under the marked cover on the top of the device.
The neutral cover is replaced by the marked cover delivered with the
card when retrofitting a card. An inserted card is ejected by a short
press on the card.
Operation
Press once for a short time.
Press at least 3 seconds.
Press three times for a short time
within 2 seconds.
Digital input 2
Digital input 1
Ground
Digital output (open collector)
Power supply, positive terminal
Signal quality
very good
good
poor
no signal or logged out
Meaning
Resets the software and
restarts it.
(Soft reset)
Resets the hardware and
restarts it.
(Hard reset)
Deletes all settings and
resets the device to the
factory defaults.
Technical Information
53
