Technical Information
Physical Feature
Power consumption
Level input IN1
Current consumption input IN1 at LOW
potential
Level input IN2
Current consumption input IN2 at HIGH
potential
Digital output (open collector), max.
load
Max. voltage drop of the output in
condition ON
Max. transmission power cellular
engine
PLS:
EGSM 900
GSM 1800
UMTS 900/1800/2100
LTE 800/900/1800/2100/2600
PLS-US:
EGSM 850/900
GSM 1800/1900
UMTS 850/AWS (1700)/1900
LTE 700/850/AWS (1700)/1900
Weight
Dimensions (Width x Depth (w/o
protruding connectors) x Height)
Max. temperature range
(refer to Basic Variants also)

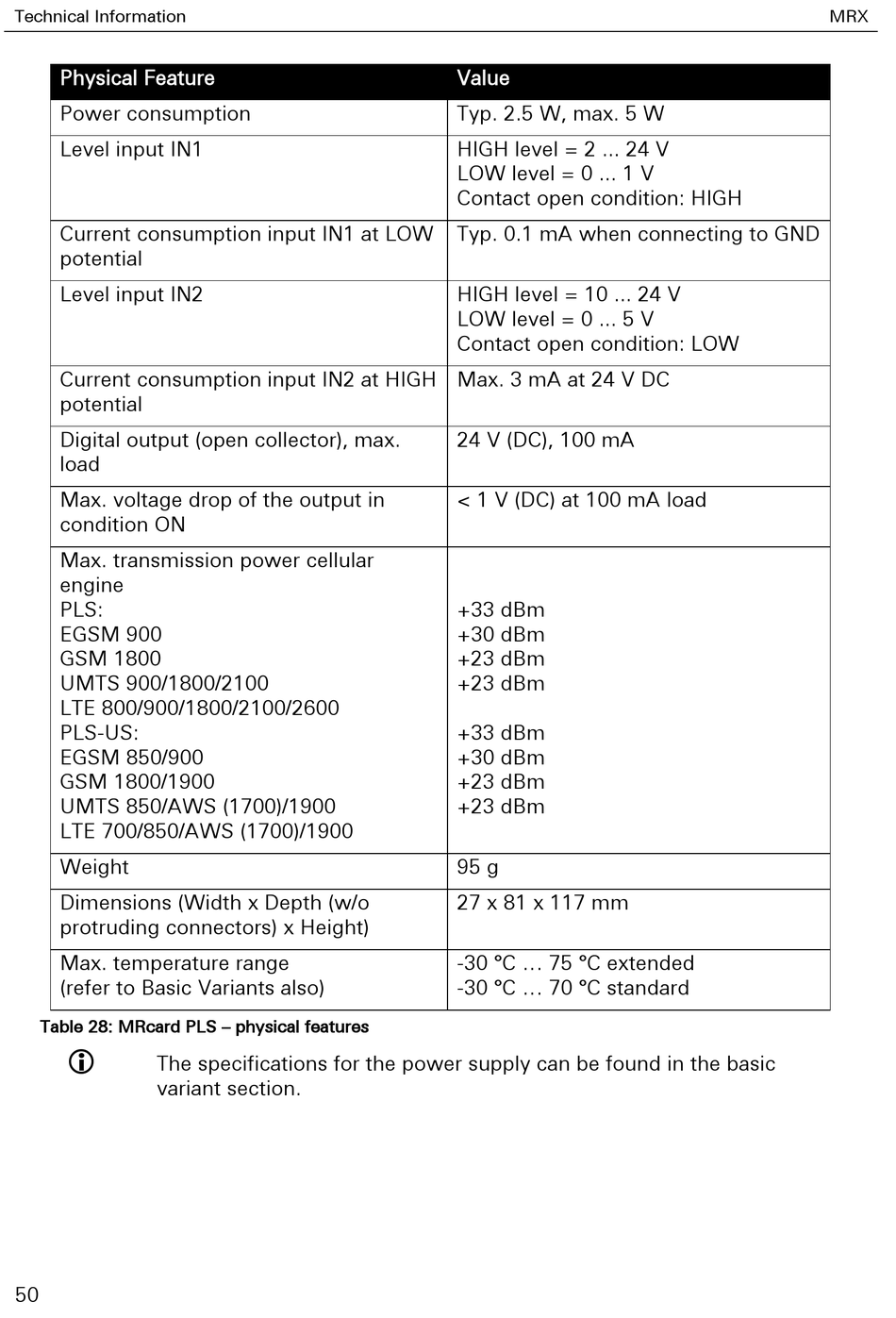

Table 28: MRcard PLS – physical features

The specifications for the power supply can be found in the basic
variant section.
50
Value
Typ. 2.5 W, max. 5 W
HIGH level = 2 ... 24 V
LOW level = 0 ... 1 V
Contact open condition: HIGH
Typ. 0.1 mA when connecting to GND
HIGH level = 10 ... 24 V
LOW level = 0 ... 5 V
Contact open condition: LOW
Max. 3 mA at 24 V DC
24 V (DC), 100 mA
< 1 V (DC) at 100 mA load
+33 dBm
+30 dBm
+23 dBm
+23 dBm
+33 dBm
+30 dBm
+23 dBm
+23 dBm
95 g
27 x 81 x 117 mm
-30 °C ... 75 °C extended
-30 °C ... 70 °C standard
