7.7.2.4 Digital output

The router provides a digital output that is designed as open collector output. You'll

find more information in Table 28. The figure below shows two examples for the

connection of the output, the connection of a relay on the left and the connection

of an LED on the right.

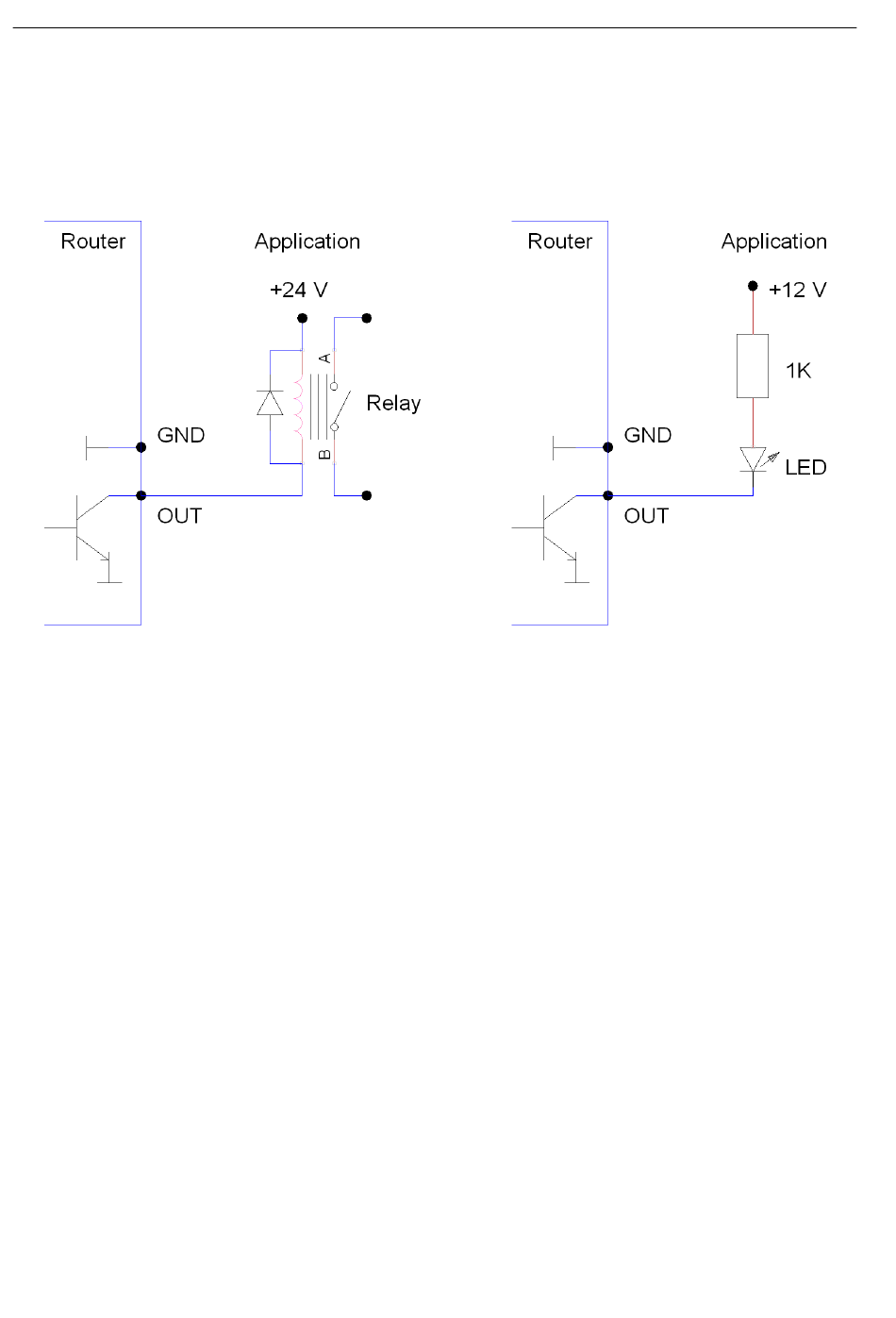

Figure 34: MRcard PLS – Digital open collector output – connection examples

7.7.3 Antennas for MIMO / Rx Diversity

For information regarding antennas for MIMO / Rx Diversity, refer to the MRcard PL

section on page 37.

7.8

The MRcard IO is a plug-in card to extend the basic variants and include four digital

inputs, four digital outputs (normally open relay), three analogue inputs as well as

an analogue output. The technical data of the basic variants are extended by the

following data with inserted MRcard IO.

7.8.1.1 Physical Features

All specified data was measured with nominal input voltage, at full load, and an

ambient temperature of 25 °C. The limit value tolerances are subject to the usual

variations.
