Assembly

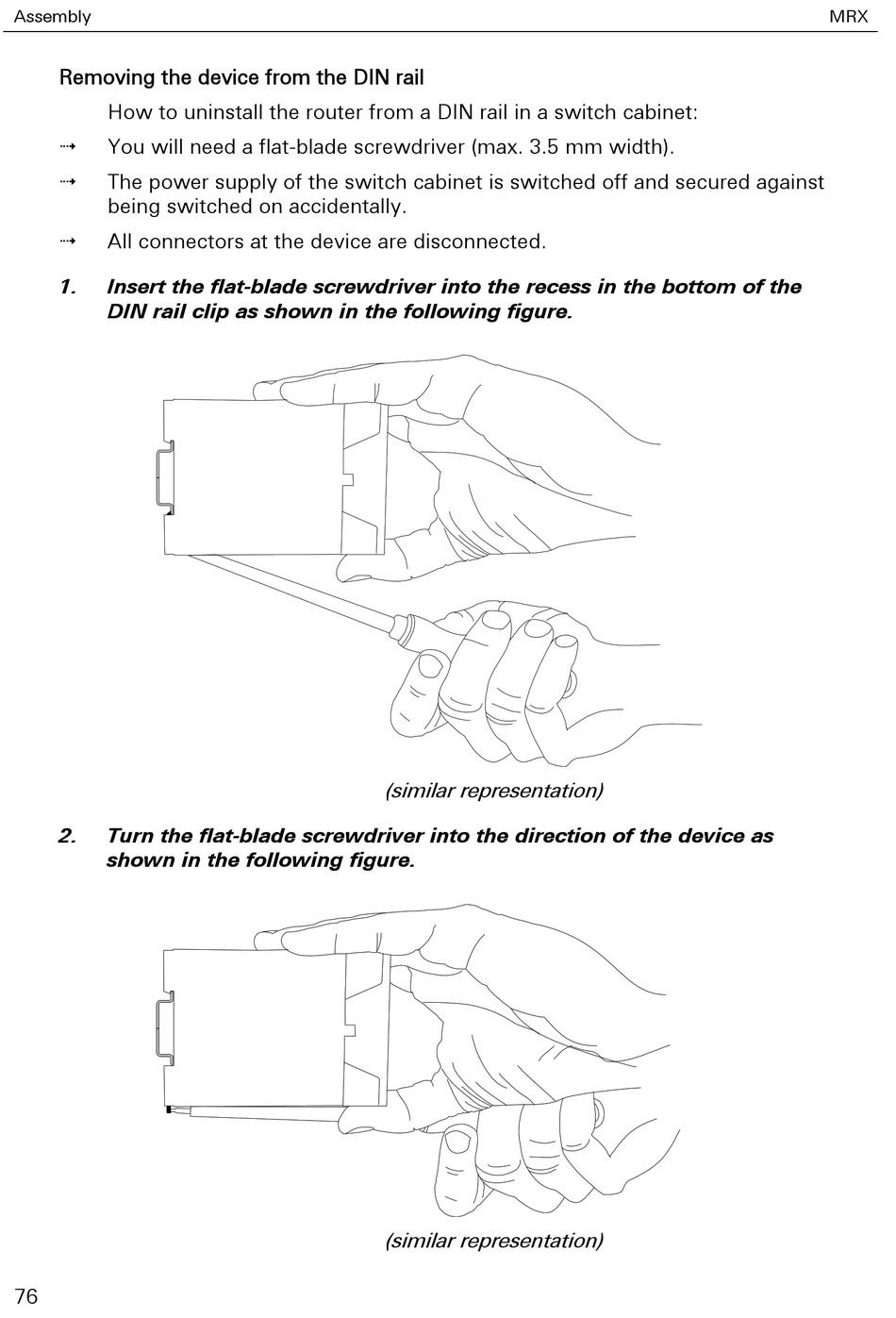

Removing the device from the DIN rail
How to uninstall the router from a DIN rail in a switch cabinet:
You will need a flat-blade screwdriver (max. 3.5 mm width).
The power supply of the switch cabinet is switched off and secured against
being switched on accidentally.
All connectors at the device are disconnected.
1.
Insert the flat-blade screwdriver into the recess in the bottom of the
DIN rail clip as shown in the following figure.
2.
Turn the flat-blade screwdriver into the direction of the device as
shown in the following figure.
76
(similar representation)
(similar representation)
MRX
