MRcard Installation
8.4

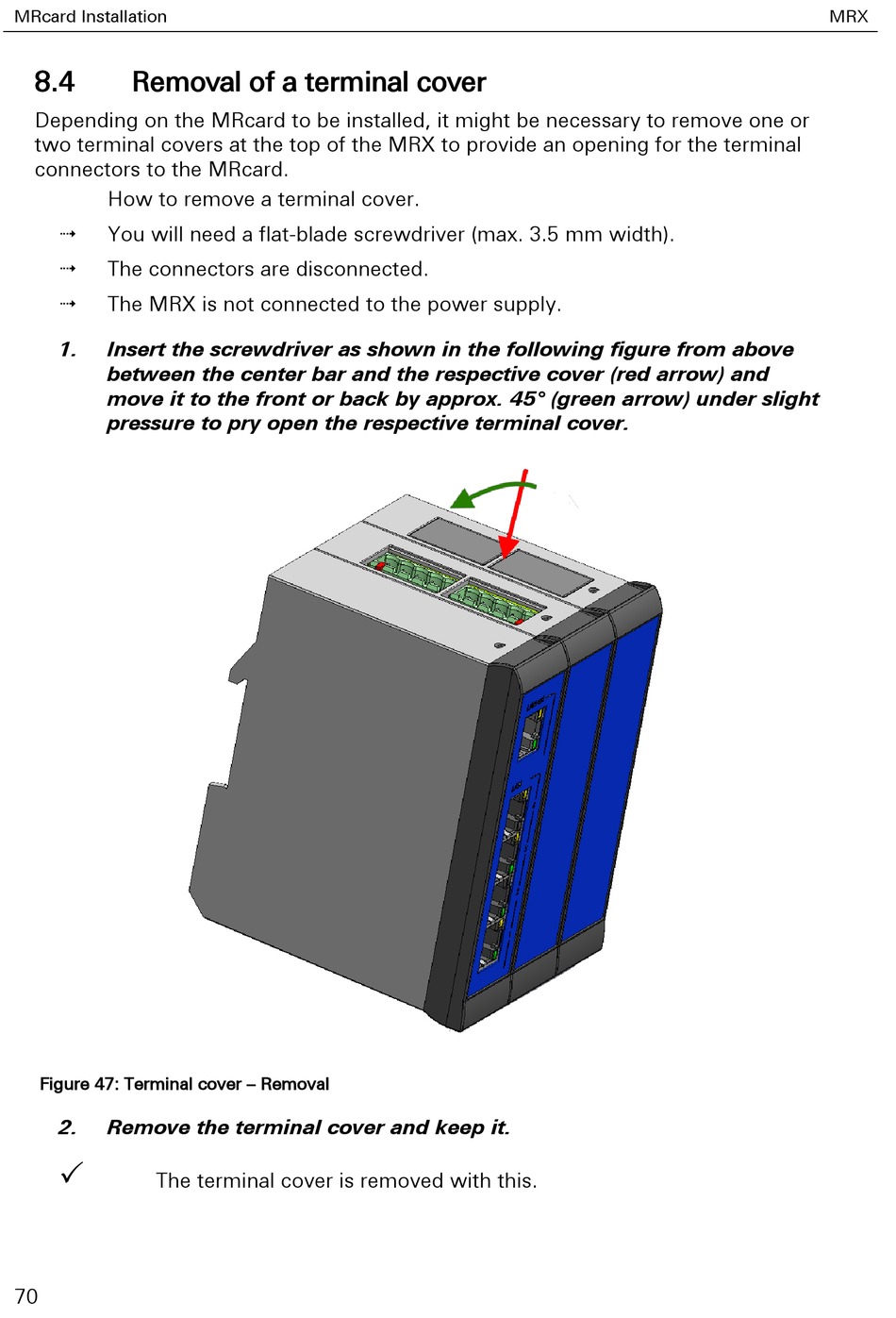

Removal of a terminal cover
Depending on the MRcard to be installed, it might be necessary to remove one or
two terminal covers at the top of the MRX to provide an opening for the terminal
connectors to the MRcard.
How to remove a terminal cover.
You will need a flat-blade screwdriver (max. 3.5 mm width).
The connectors are disconnected.
The MRX is not connected to the power supply.
1.
Insert the screwdriver as shown in the following figure from above
between the center bar and the respective cover (red arrow) and
move it to the front or back by approx. 45° (green arrow) under slight
pressure to pry open the respective terminal cover.
Figure 47: Terminal cover – Removal
2.
Remove the terminal cover and keep it.
The terminal cover is removed with this.
70
MRX
