MRX

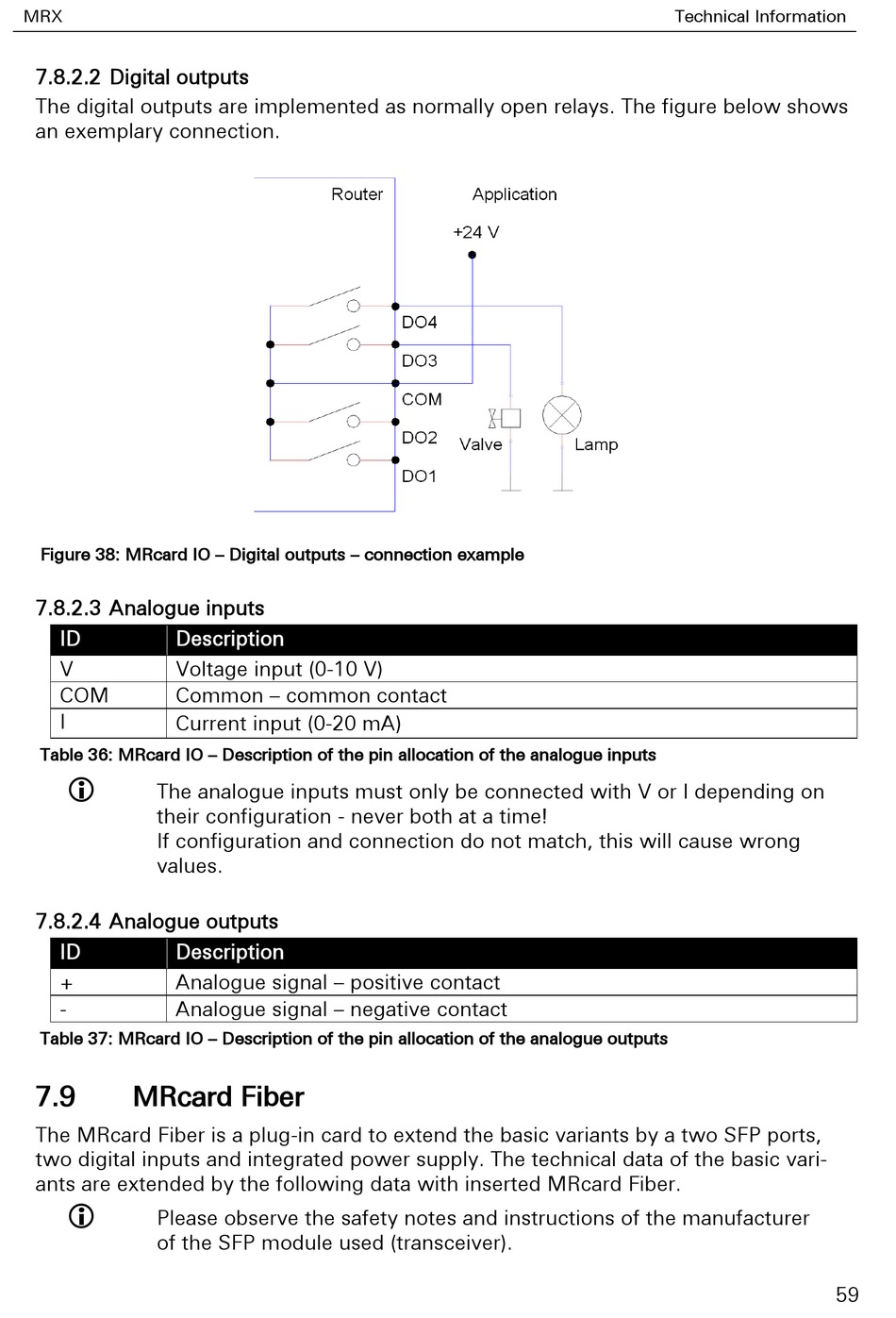

7.8.2.2 Digital outputs
The digital outputs are implemented as normally open relays. The figure below shows
an exemplary connection.
Figure 38: MRcard IO – Digital outputs – connection example
7.8.2.3 Analogue inputs
ID Description
V Voltage input (0-10 V)
COM Common – common contact
I
Current input (0-20 mA)
Table 36: MRcard IO – Description of the pin allocation of the analogue inputs

The analogue inputs must only be connected with V or I depending on
their configuration - never both at a time!
If configuration and connection do not match, this will cause wrong
values.
7.8.2.4 Analogue outputs
ID Description
+ Analogue signal – positive contact
- Analogue signal – negative contact
Table 37: MRcard IO – Description of the pin allocation of the analogue outputs
7.9

MRcard Fiber

The MRcard Fiber is a plug-in card to extend the basic variants by a two SFP ports,
two digital inputs and integrated power supply. The technical data of the basic vari-
ants are extended by the following data with inserted MRcard Fiber.

Please observe the safety notes and instructions of the manufacturer
of the SFP module used (transceiver).
Technical Information
59
