insys icom 336 LL Manual

19“ modem
Hide thumbs Also See for 336 LL:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
INSYS 19" 336 LL
Modem

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 336 LL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for insys icom 336 LL

Summary of Contents for insys icom 336 LL

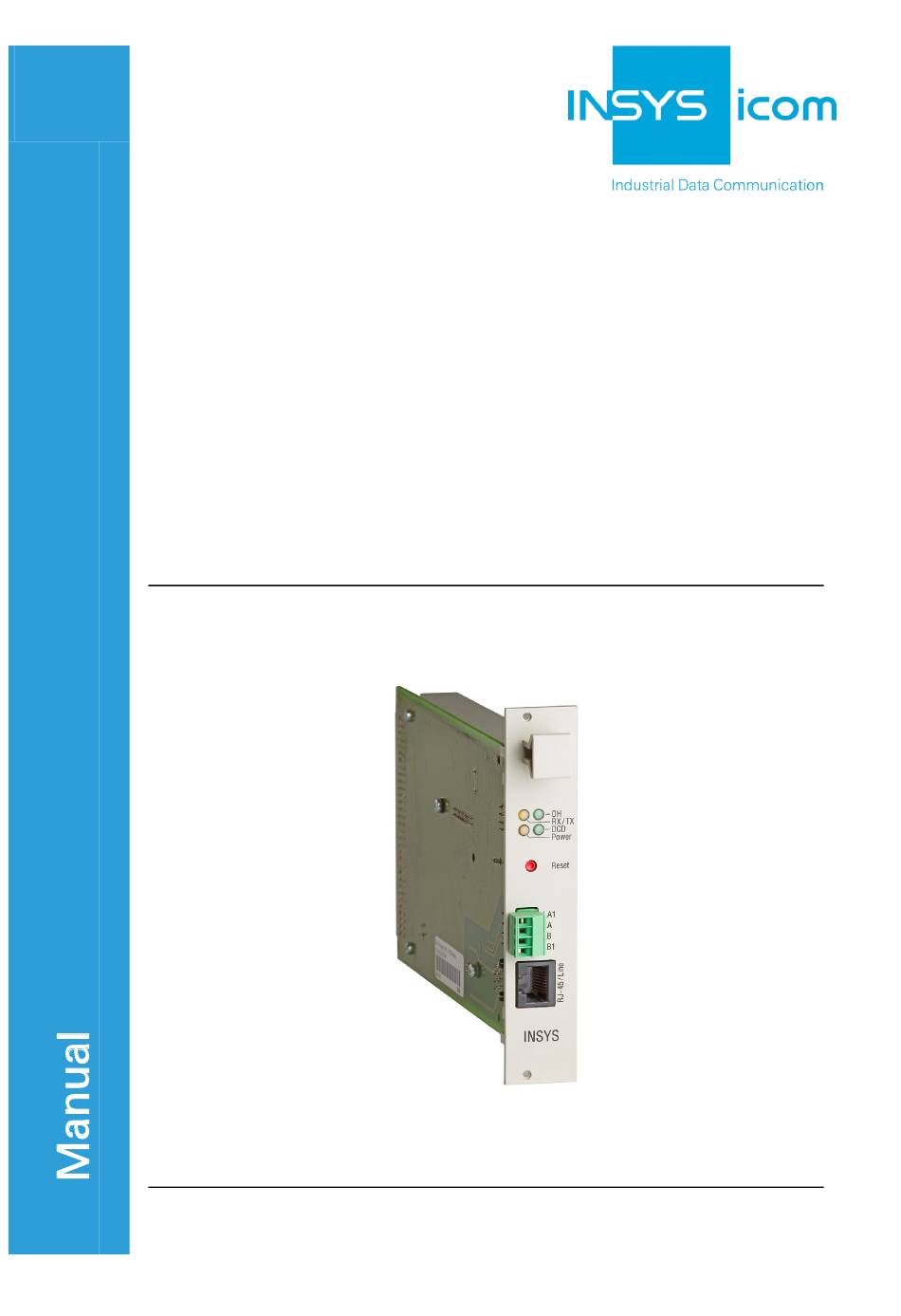

  • Page 1 INSYS 19“ 336 LL Modem...
  • Page 3 Copyright © July 12 INSYS MICROELECTRONICS GmbH Any duplication of this manual is prohibited. All rights on this documentation and the devices are with INSYS MICROELECTRONICS GmbH Regensburg. Trademarks The use of a trademark not shown below is not an indication that it is freely avail- able for use.

  • Page 4: Table Of Contents

    Content Preface.....................6 Defects Liability Terms ..................6 Marking of Warnings and Notes................7 1.2.1 Symbols and Key Words ................7 Symbols and the Formatting in this Manual ............8 Safety.......................9 Usage According to the Regulations ..............9 Permissible Technical Limits................10 Responsibilities of the Operator................10 Qualification of the Personnel................10 Instructions for Transport and Storage ..............10 Markings on the Product ..................11...
  • Page 5 11.8 Adjusting the Transmission Level ................38 11.9 Set the Operating Modes Answer or Originate ............39 11.10 Switching on the Remote Configuration..............40 11.11 Remote Configuration of the INSYS 19“ 336 LL Modem........40 11.12 Connection Safeguard ..................42 11.13 Reset ........................42 Maintenance ..................43 Diagnosis and Testing of the Path............45...

  • Page 6: Preface

    Preface INSYS 19“ 336 LL Preface This manual allows for the safe and efficient use of the product. The manual is part of the product and must always be stored accessible for installation, commission- ing and operating personnel. Defects Liability Terms...

  • Page 7: Marking Of Warnings And Notes

    INSYS 19“ 336 LL Preface Marking of Warnings and Notes 1.2.1 Symbols and Key Words Danger! Risk of severe or fatal injury One of these symbols in conjunction with the key word Danger indicates an imminent danger. It will cause death or severe in- juries if not avoided.

  • Page 8: Symbols And The Formatting In This Manual

    Preface INSYS 19“ 336 LL Symbols and the Formatting in this Manual This section describes the definition, formatting and symbols used in this manual. The various symbols are meant to help you read and find the information relevant to you. The following text is structured like a typical operating instruction of this manual.

  • Page 9: Safety

    INSYS 19“ 336 LL Safety Safety The Safety section provides an overview about the safety instructions, which must be observed for the operation of the product. The product is constructed according to the currently valid state-of-the-art technol- ogy and reliable in operation. It has been checked and left the factory in flawless condition concerning safety.

  • Page 10: Permissible Technical Limits

    Safety INSYS 19“ 336 LL Permissible Technical Limits The product is only intended for the use within the permissible technical limits specified in the data sheets. The following permissible limits must be observed:  The ambient temperature limits must not be fallen below or exceeded.

  • Page 11: Markings On The Product

    INSYS 19“ 336 LL Safety Markings on the Product The identification plate of the product is either a print or a label on a face of the product. Amongst other things, it contains the following markings, which are ex- plained in detail here.

  • Page 12: Safety Instructions For Electrical Installation

    Safety INSYS 19“ 336 LL Safety Instructions for Electrical Installation The electrical connection must only be made by authorised expert personnel ac- cording to the wiring diagrams. The notes to the electrical connection in the manual must be observed. Otherwise, the protection category might be affected.
  • Page 13 INSYS 19“ 336 LL Safety Caution! Overvoltage and voltage peaks from the mains supply! Fire hazard and damage of the product due to overvoltage. Install suitable overvoltage protection. Caution! Damage due to chemicals! Ketones and chlorinated hydrocarbons dissolve the plastic housing and damage the surface of the device.

  • Page 14: Scope Of Delivery

    INSYS 19“ 336 LL Scope of Delivery The scope of delivery for the INSYS 19“ 336 LL Modem includes all accessories listed be- low. Please check if all accessories are included in the box. If a part is missing or dam- aged, please contact your distributor.

  • Page 15: Technical Data

    INSYS 19“ 336 LL Technical Data Technical Data Physical Features Danger! Overvoltage. Fire hazard! The modem must be secured with a suitable fuse against overvoltage. All specified data was measured with a nominal input voltage, at full load, and an ambi- ent temperature of 25 °C.

  • Page 16: Display And Control Elements

    Display and Control Elements INSYS 19“ 336 LL Display and Control Elements Figure 1: LEDs on the front panel Position Description Handle tab TX-LED (Transmit Data LED) Data Carrier Detect LED Reset key Off Hook LED RX-LED (Receive Data LED)

  • Page 17: Meaning Of The Displays

    Function of the Control Elements Description Operation Meaning Reset key Press at least 1 second. Sets the INSYS 19“ 336 LL Modem into configura- tion mode. Press at least 3 seconds. Resets the INSYS 19“ 336 LL Modem. Handle tab...

  • Page 18: Connections

    Connections INSYS 19“ 336 LL Connections Front Panel Connections Figure 2: Connections on the front panel of the device Position Description Plug-in terminal phone line connector Phoenix Phone line connection (RJ45 line jack) Table 6: Description of the connections on the front panel of the device...

  • Page 19: Layout Phoenix Plug-In Terminals

    INSYS 19“ 336 LL Connections Layout Phoenix Plug-in Terminals Terminal Description Leased line (terminal LA1) Leased line (terminal LA) Leased line (terminal LB) Leased line (terminal LB1) Table 7: Layout description Phoenix plug-in terminals Layout RJ45 Connection Signal Description Not connected...

  • Page 20: Cept Connection Back

    Connections INSYS 19“ 336 LL CEPT Connection Back Figure 3: CEPT connection on the back of the device Description Description Input/Output Ground DTR~ Data Terminal Ready; TTL level Input Ring indication TTL level Output Power Supply Power Supply Ground Ground...

  • Page 21: Function Overview

    V.42, MNP2, MNP3, MNP4, and MNP10  Storing the settings in the user profiles The INSYS 19“ 336 LL Modem can store the user settings in two dif- ferent "profiles". This means that two different configurations can be stored for special purposes and loaded as needed.

  • Page 22: Mounting

    Mounting INSYS 19“ 336 LL Mounting This section describes how to mount the INSYS 19“ 336 LL Modem in a suitable 19 inch rack and remove it again. Caution! Moisture and liquids from the environment may seep into the interior of the INSYS 19“ 336 LL Modem! Fire hazard and damage of the product.
  • Page 23 INSYS 19“ 336 LL Mounting Remove the slot plate.
  • Page 24 Mounting INSYS 19“ 336 LL Insert the projecting edge at the housing of the INSYS 19“ 336 LL Modem into the guide rail and push the INSYS 19“ 336 LL Modem slightly into the 19 inch rack until it latches.
  • Page 25 The power supply of the cabinet and the 19 inch rack is switched off and secured against being switched off accidentally. Loosen the fastening screw at the INSYS 19“ 336 LL Modem. Pull the INSYS 19“ 336 LL Modem out of the 19 inch rack using the grip handle.

  • Page 26: Initial Operation

    This chapter describes how to activate the INSYS 19“ 336 LL Modem, i.e. how to connect the INSYS 19“ 336 LL Modem to a PC and to a leased line, and how to test it. Connect the INSYS 19“ 336 LL Modem to a PC for configuration How to connect the INSYS 19“...
  • Page 27 The RX/TX LED on both devices will light up while you type.  If the RX/TX LED at the INSYS 19“ 336 LL Modem does not light up while you type, you may be connected to another modem (e.g. with the modem inte-...
  • Page 28  If you don't receive the response OK, check the connection and check if the DCD LED at the INSYS 19“ 336 LL Modem is still lit. If yes, repeat step 5.  The RX/TX LED lights up while you type.
  • Page 29 Enter the password "qwerty".  The character ">" is displayed as a prompt.  This is the prompt of the remote INSYS 19“ 336 LL Modem. Enter the command AT&V3.  You will receive a response which contains information about the configu- ration and the line quality, for example: TERMINATION REASON..

  • Page 30: Operating Principle

    INSYS 19“ 336 LL Operating Principle This chapter describes the basic procedures to operate and configure a INSYS 19“ 336 LL Modem. The INSYS 19“ 336 LL Modem is configured and operated via AT commands. You can enter these commands yourself with the help of a terminal program and the AT command reference.
  • Page 31 Save your entries with AT&W.  Not all settings at the INSYS 19“ 336 LL Modem must be actively stored by entering AT&W. Some settings are automatically saved immediately. We still recommend sending the command AT&W to the INSYS 19“ 336 LL Mo- dem as your last configuration step to ensure that all settings are stored safely and are available for the next restart.

  • Page 32: Functions

    The automatic baud rate detection enables a continuous automatic adjustment of all parameters (baud rate, data format) of the serial interface at the INSYS 19“ 336 LL Mo- dem in configuration mode. The device will detect during the operation in configuration mode, which baud rate and which data format is applied to the serial interface.

  • Page 33: Phone Connection

    The error correction and the data compression are in this case switched off as well. If the INSYS 19“ 336 LL Modem is operated in this mode, not all functions will be available. The remote configuration and all functions for which a password is required, will no longer be available.

  • Page 34: Data Flow Control (Handshake)

    When the buffer is emptied sufficiently for the INSYS 19“ 336 LL Modem to be able to receive data again, the CTS line is set to "HIGH". Reversely, the application can also indicate to the INSYS 19“ 336 LL Modem to interrupt the data flow.

  • Page 35: Data Compression

    11.4 Data Compression The INSYS 19“ 336 LL Modem supports various data compression types. During the con- nection setup, it will automatically detect the type of data compression used by the re- mote terminal, or it is set to a certain type of data compression. Data compression is only available for error corrected connections.

  • Page 36: Data Buffer For Serial Data Transmission

    When the buffer is activated, the data flow control should be active to avoid a buffer overflow in the INSYS 19“ 336 LL Modem. If the buffer overflows, the data gets lost. If the buffer overflows, the data gets lost. Operation without a buffer and error correction is only useful for special character framings.

  • Page 37: Error Correction

    Functions 11.6 Error correction The INSYS 19“ 336 LL Modem masters the V.42 error correction protocol including the Microcom Networking Protocol Levels 2/3/4 (MNP-2, MNP-3, MNP-4) and the data throughput optimization MNP-10. The V.42 error correction includes the protocols LAPM (Link Access Procedure for Modem) and MNP-4.

  • Page 38: Set Two-Wire Or Four-Wire Operation

    11.8 Adjusting the Transmission Level The transmission level of the INSYS 19“ 336 LL Modem at the leased line can be adjusted. This may be necessary to ensure flawless data transmissions via the leased line. For longer two-wire lines, a lower transmitting level than the preset one may be reasonable, as reflections and echoes in the line may impede the communication between the de- vices.

  • Page 39: Set The Operating Modes Answer Or Originate

    Despite the preset factory default, the INSYS 19“ 336 LL Modem can be reconfigured for the other mode. This may be reason- able if a leased line is being repaired, and a device with the wrong mode is available to replace the affected device.

  • Page 40: 11.10 Switching On The Remote Configuration

    "****" in the data stream and if no data traffic takes place after that for 1 second, the INSYS 19“ 336 LL Modem will switch to the remote configuration. It will then send a re- sponse and a prompt to enter the password of the remote configuration. A particular connection type is not mandatory.
  • Page 41 Complete the remote configuration by entering AT*E.  The INSYS 19“ 336 LL Modem is now in the normal data connection mode. You can now exchange data between your local modem and the INSYS 19“ 336 LL Modem, or terminate the connection.

  • Page 42: 11.12 Connection Safeguard

    <y>. 11.13 Reset There are several methods to reset the INSYS 19“ 336 LL Modem : by cutting off the sup- ply voltage, by pushing the reset button on the front of the device and by using an AT command.

  • Page 43: Maintenance

    INSYS 19“ 336 LL Modem. The firmware of the INSYS 19“ 336 LL Modem can be updated to add more functions to the INSYS 19“ 336 LL Modem or to improve the existing functions. A firmware update can be performed with the help of a terminal program that supports ASCII uploads (e.g.
  • Page 44 If you didn't receive the previous message for a successful upload, the upload has most probably failed. Try to reset the INSYS 19“ 336 LL Modem and to re- peat the process from step 4. If this fails and the INSYS 19“ 336 LL Modem does no longer react to AT commands, please contact the INSYS MICROELEC- TRONICS support department.

  • Page 45: Diagnosis And Testing Of The Path

    INSYS 19“ 336 LL Diagnosis and Testing of the Path Diagnosis and Testing of the Path 13.1 Line Optimization To query the line quality and the received signal level a connection must be estab- lished between the two modems (CONNECT).

  • Page 46: Waste Disposal

    Waste Disposal INSYS 19“ 336 LL Waste Disposal 14.1 Repurchasing of Legacy Systems According to the new WEEE guidelines, the repurchasing and recycling of legacy systems for our clients is regulated as follows: Please send those legacy systems to the following address, carriage prepaid:...

  • Page 47: Declaration Of Conformity

    INSYS 19“ 336 LL Declaration of Conformity Declaration of Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility 2004/108/EC and the Council Directive relating to Low Voltage 2006/95/EC as well as the Council Directive R&TTE 1999/5/EC.

  • Page 48: At Command Reference

    AT\B<n> For connections that were not error corrected, the INSYS 19“ 336 LL Modem sends a break signal to the other INSYS 19“ 336 LL Modem. The length of the signal is: the specified parameter times 1/10 of a second.
  • Page 49 AT Command Reference Command Description Enable data compression AT%C<n> Enable/disable a data compression type The INSYS 19“ 336 LL Modem can only perform data compressions for error cor- rected connections. No data compression enabled AT%C0 MNP-5 data compression enabled AT%C1 Enable V.42 bis and V.44 data compression...
  • Page 50 Connection setup takes place with 1,200 bps AT*H1 Connection setup takes place with 4800 bps AT*H2 Identification ATI<n> The INSYS 19“ 336 LL Modem sends an identification to the PC, according to the following parameter: Product code ATI0 Previously calculated EPROM checksum ATI1...
  • Page 51 The following baud rates are supported: 300, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600 and 115,200. The setting AT+IPR is not stored with AT&W. Select data flow control between the PC and the INSYS 19“ 336 LL Modem AT&K<n> (handshake) Fax operation default is RTS/CTS.
  • Page 52 Break control AT\K The INSYS 19“ 336 LL Modem reacts to a break (receive path off for a certain amount of time), which it receives from another modem or from the PC, or from the command AT\B according to the parameters.
  • Page 53 Display level of the received signal AT%L The value that is reported from the INSYS 19“ 336 LL Modem equals the already amplified level within the INSYS 19“ 336 LL Modem, not the phone line level. Large AT%L responses imply a low signal level; small values imply a high signal level.
  • Page 54 In the factory settings, the speed limitation is always switched on (AT*L0). If the limitation is switched off (AT*L1), the INSYS 19“ 336 LL Modem will always establish the connection on the phone side with the maximum possible speed (or the speed defined with AT+MS), irrespective of the data rate at the serial interface.
  • Page 55 AT+MR=2 the received data. If the display function is switched on the INSYS 19“ 336 LL Modem will display the modulation type and the line speed after the message CONNECT. After the message CONNECT the line "+MCR:" appears, followed by the modulation type (see command AT+MS and the line "+MRR: ", followed by the line speed.
  • Page 56 Return to online data mode ATO<n> If the INSYS 19“ 336 LL Modem is in online command mode, it will return to online data mode. If the INSYS 19“ 336 LL Modem is in offline command mode, it will report ERROR.
  • Page 57 INSYS 19“ 336 LL AT Command Reference Command Description Quiet control ATQ<n> This command toggles sending messages from the INSYS 19“ 336 LL Modem to the application ON and OFF. Send messages to application (default) ATQ0 Don't send messages to application ATQ1...
  • Page 58 ATS<n> Depending on the country settings, the S registries may only be changed within certain limits. The INSYS 19“ 336 LL Modem still reports OK although the value has not changed. We recommend checking the results after each write attempt, using the ATS<n>? command.
  • Page 59 2 stop bits AT*U9 Format of modem messages ATV<n> This command determines if the INSYS 19“ 336 LL Modem transmits messages to the application in short or long format. Messages in short format, i.e. only the error number ATV0 Messages in long format, i.e. the error text (default)
  • Page 60 AT Command Reference INSYS 19“ 336 LL Command Description Show the configurations AT&V<n> The active configuration of the modem, the saved user defaults and AT&V0 the saved phone numbers 0 to 3 (the parameter 0 may be omitted) are displayed.
  • Page 61 Extended result messages, dial tone detection ATX<n> The command determines which group of messages the INSYS 19“ 336 LL Mo- dem sends to the PC. This is important for PBXs, as a leading 0 or 9 must often be Blind dialing dialed before a dialing tone is heard on the line.
  • Page 62 The command causes the INSYS 19“ 336 LL Modem to perform a software reset. The INSYS 19“ 336 LL Modem will load the default saved by the user (according to the parameter). If no parameter is specified, the user default 0 is loaded.

  • Page 63: At Messages

    INSYS 19“ 336 LL AT Command Reference 16.1 AT Messages List of message numbers and messages texts depending on the command ATX. Message num- Message text in long form ATX<0> ATX<1> ATX<2> ATX<3> ATX<4> Short form +FCERROR CONNECT RING NO CARRIER...
  • Page 64 AT Command Reference INSYS 19“ 336 LL Message num- Message text in long form ATX<0> ATX<1> ATX<2> ATX<3> ATX<4> Short form CARRIER 12000 CARRIER 14400 CARRIER 16800 CARRIER 19200 CARRIER 21600 CARRIER 24000 CARRIER 26400 CARRIER 28800 CONNECT 16800 CONNECT 21600...
  • Page 65 INSYS 19“ 336 LL AT Command Reference Message num- Message text in long form ATX<0> ATX<1> ATX<2> ATX<3> ATX<4> Short form CONNECT 38000 CONNECT 40000 CONNECT 42000 CONNECT 44000 CONNECT 46000 CONNECT 48000 CONNECT 50000 CONNECT 52000 CONNECT 54000 CONNECT 56000...

  • Page 66: Registers

    S Registers INSYS 19“ 336 LL S Registers S registers may be read and written using the ATS<n> command. (See also AT Command Reference). Certain S registers may only be read; into others only a particular range of values may be entered.

  • Page 67: Description S Registers

    INSYS 19“ 336 LL S Registers Tabs Function Units Range Default S27* General settings Time period for modifier “flash” 10 ms 0-17 Time period until hang up due to silence 10 s 0-255 S31* General settings S36* Reset of error logs...
  • Page 68 S Registers INSYS 19“ 336 LL Backspace character Backspace character Waiting period dial tone Maximum waiting time for the dialing tone. After the modem went off-hook it waits 7 seconds for the dialing tone (fixed for approval purposes). If it detects a dialing tone during this waiting period it will start dialing.
  • Page 69 INSYS 19“ 336 LL S Registers S12* Transmission clock of the ESC characters Minimum pre and post run time and maximum interim time in 1/50 of seconds between two characters. This must be observed, if the modem is supposed to de- tect an abort sequence (usually +++).
  • Page 70 S Registers INSYS 19“ 336 LL S17* Initial character for remote configuration In S17, the ASCII code of a character which is used to start the remote con- figuration is defined. Values >127 switch the remote configuration off com- pletely. The default setting in S17 is “42”, which equals the ASCII character “*”.
  • Page 71 INSYS 19“ 336 LL S Registers Time period until switching into sleep mode The time after which the modem switches to energy saving mode (sleep) during inactivity is determined (in seconds) in S24. The energy saving mode will be quit as soon as characters are sent to the modem, or when a call comes in.
  • Page 72 S Registers INSYS 19“ 336 LL S31* General settings Meaning Bit 0 Reserved Bit 1 Description 0: 3 line message (\V0) Connect message 1: Expanded 1-line message (\V1) Bit 2-3 Error correction Messages: Messages 0: Only PC baud rate 1: PC and phone baud rate...
  • Page 73 INSYS 19“ 336 LL S Registers S39* Flow control Selection of the data flow control between the PC and the modem S39=0 No data flow control (AT&K0) S39=3 RTS/CTS data flow control (AT&K3) S39=4 XON/XOFF data flow control (AT&K4) S39=5 Transparent XON data flow control (AT&K5)
  • Page 74 S Registers INSYS 19“ 336 LL S48* V.42bis Connection setup protocol S48=0 Only LAPM connection possible S48=7 LAPM or MNP-4 connection S48=128 Connection protocol as laid down in S36 Error event code When a connection fails (NO CARRIER) an event code is written into this register.
  • Page 75 INSYS 19“ 336 LL S Registers S95* Result Code Control – Result code Meaning Bit 0 CONNECT message with line speed Bit 1 CONNECT/ARQ message for error corrected connection Bit 2 CARRIER messages enabled (messages 40 – 47) Bit 3...

  • Page 76: Tables And Diagrams

    Figure 2: Connections on the front panel of the device............18 Figure 3: CEPT connection on the back of the device............20 18.3 Certifications The INSYS 19“ 336 LL Modem has been developed according to the following guidelines and standards:  Electromagnetic Compatibility 2004/108/EC  Low Voltage 2006/95/EC...
