8.3
Installation of an MRcard
How to install an MRcard or a front cover:
The connectors are disconnected.
The MRX is not connected to the power supply.
1.
Place the MRX with its back onto the desktop.
2.
Insert the card with the board in the guides or the front cover from
above into the slot from above.
3.
Press on both sides slightly down (red arrows) until the tabs snap into
place appreciably. Slightly pressing on both sides (green arrows)
facilitate snapping.

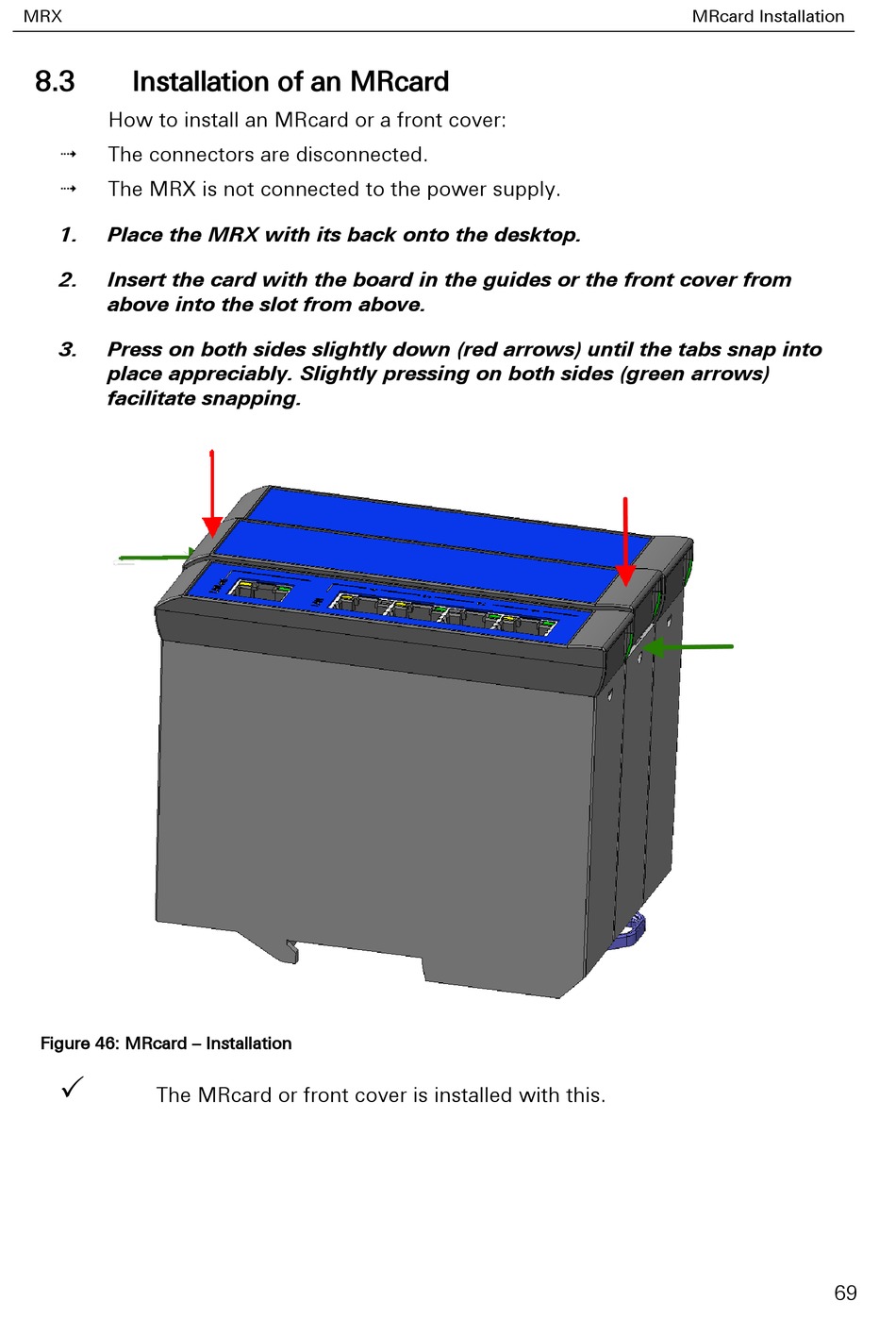

Figure 46: MRcard – Installation
The MRcard or front cover is installed with this.
MRcard Installation
69
