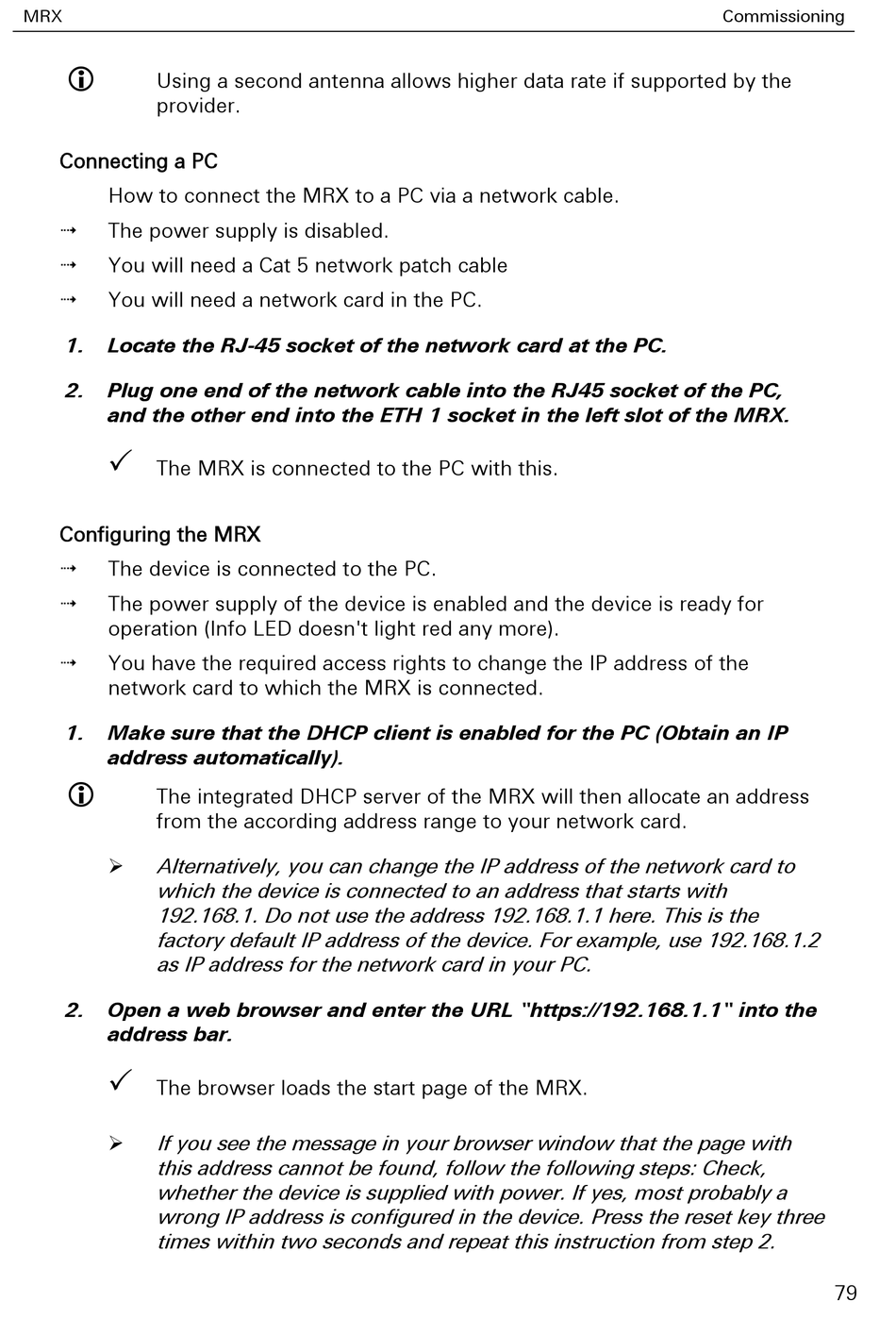

MRX
Using a second antenna allows higher data rate if supported by the
provider.
Connecting a PC
How to connect the MRX to a PC via a network cable.
The power supply is disabled.
You will need a Cat 5 network patch cable
You will need a network card in the PC.
1.
Locate the RJ-45 socket of the network card at the PC.
2.
Plug one end of the network cable into the RJ45 socket of the PC,
and the other end into the ETH 1 socket in the left slot of the MRX.
The MRX is connected to the PC with this.
Configuring the MRX
The device is connected to the PC.
The power supply of the device is enabled and the device is ready for
operation (Info LED doesn't light red any more).
You have the required access rights to change the IP address of the
network card to which the MRX is connected.
1.
Make sure that the DHCP client is enabled for the PC (Obtain an IP
address automatically).
The integrated DHCP server of the MRX will then allocate an address
from the according address range to your network card.
➢
Alternatively, you can change the IP address of the network card to
which the device is connected to an address that starts with
192.168.1. Do not use the address 192.168.1.1 here. This is the
factory default IP address of the device. For example, use 192.168.1.2
as IP address for the network card in your PC.
2.
Open a web browser and enter the URL "https://192.168.1.1" into the
address bar.
The browser loads the start page of the MRX.
➢
If you see the message in your browser window that the page with
this address cannot be found, follow the following steps: Check,
whether the device is supplied with power. If yes, most probably a
wrong IP address is configured in the device. Press the reset key three
times within two seconds and repeat this instruction from step 2.
Commissioning
79
