Assembly

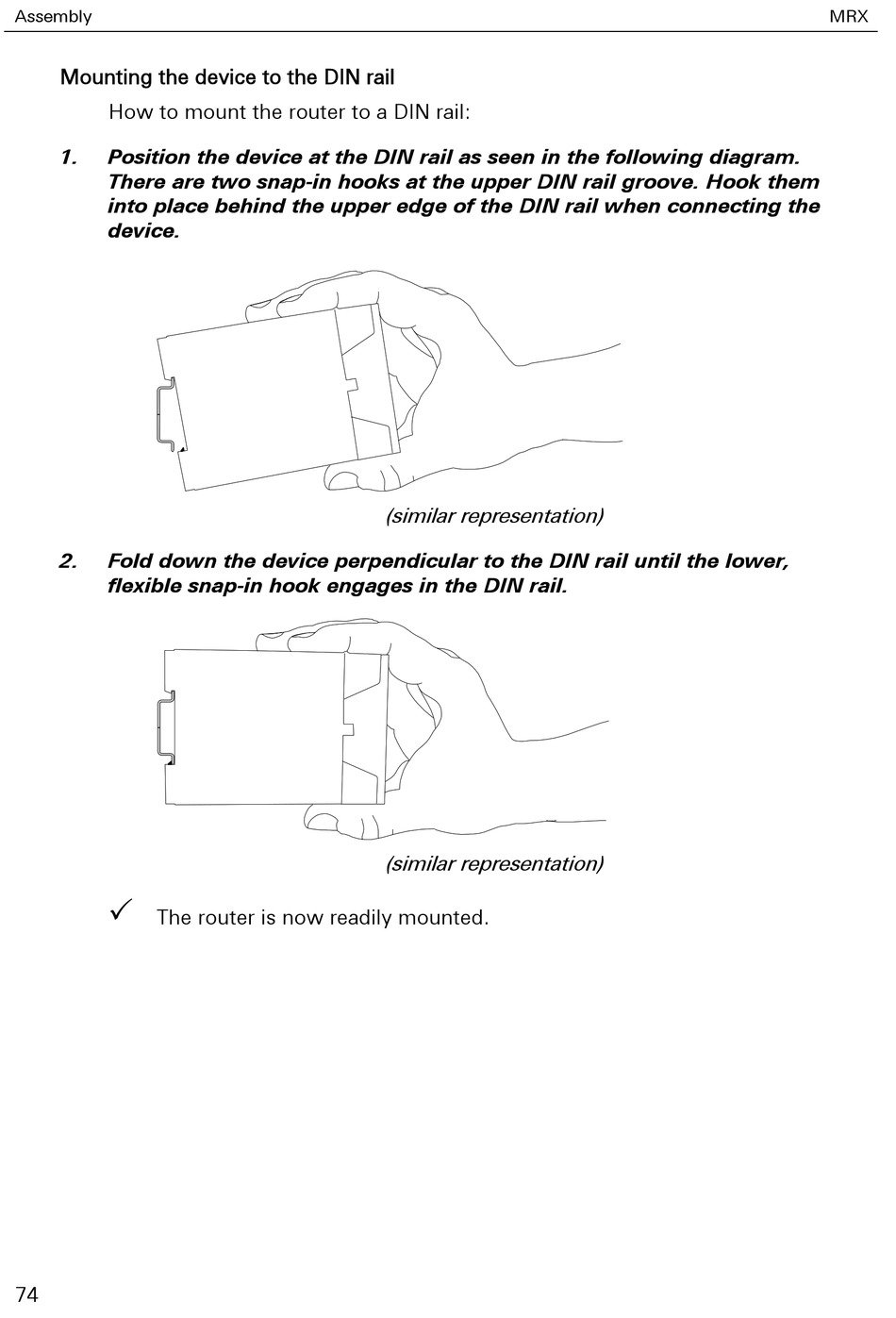

Mounting the device to the DIN rail
How to mount the router to a DIN rail:
1.
Position the device at the DIN rail as seen in the following diagram.
There are two snap-in hooks at the upper DIN rail groove. Hook them
into place behind the upper edge of the DIN rail when connecting the
device.
2.
Fold down the device perpendicular to the DIN rail until the lower,
flexible snap-in hook engages in the DIN rail.
The router is now readily mounted.
74
(similar representation)
(similar representation)
MRX
