F4+Set: Machine Setup
2-4-10.
Mode is displayed by pushing the F4+SET
Display
Not available when manufacturing containers
Function
Machine setup is used to set up the conditions and pa-
rameters required for proper operation when install the
most beginning to machine or change machine mode.
Commands
Machine setup is covered in detail in the DigiPack Ⅱ
Installation manual, 1-7. TOOLING SYSTEM SETUP
F5+Set: Communication Mode
2-4-11.
Mode is obtained by pressing F5+SET.
Display
Not available when manufacturing containers.
Function
Provides RS422 and Ethernet communication with a host
computer, using the parameters shown on the LCD display.
And also can be set internal clock in this display.
© MOOG 2010
This document is subject to MOOG INTELLECTUAL AND PROPRIETARY INFORMATION LEGEND . The details are on page II.

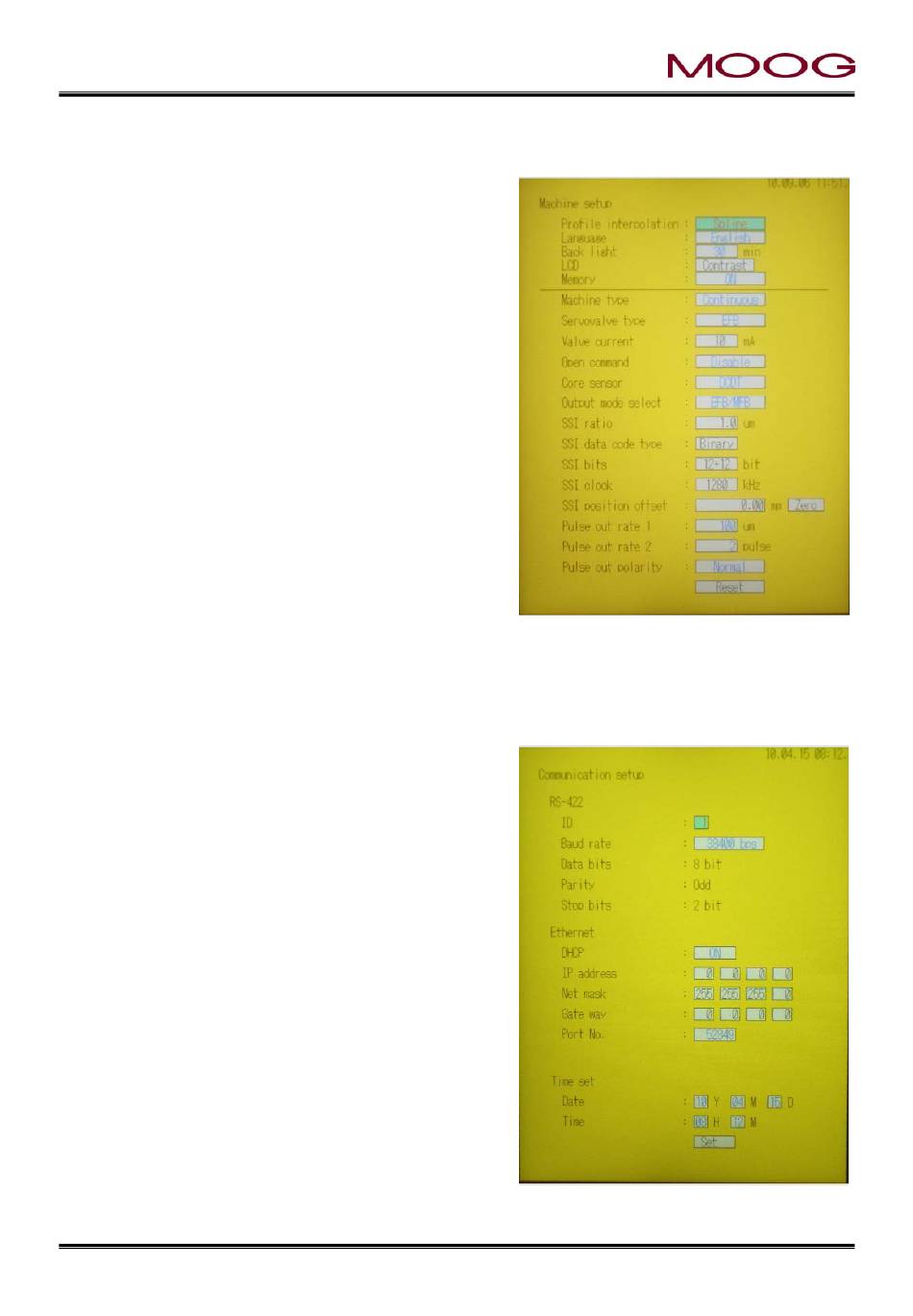

Figure 2-34 F4 + SET: Machine Setup Screen
Figure 2-35 F5 + SET: Communication Mode Screen
69
MRJ04410
