DCDT / SSI SETUP

1-7-6.
To access the DCDT / SSI setup screen, press SET. The
Figure 1-35
screen shown in "
CONVERGE/DIVERGE SETTING
The selection between Converge and Diverge tooling designs
implies that the selection between Converge and Diverge is
a simple one. This is not necessarily true.
If the Converge or Diverge tooling uses a moving mandrel
(inner part), then simply set Converge or Diverge as dictated
by the tooling design.
However, if the Converge or Diverge tooling uses a moving
die (outer part), then the other tooling type name must be
used. For example, if the tooling design is Converge and the
die is the moving part, the proper tooling selection for the
DigiPackⅡis Diverge. Example below.
Diverge
An alternate: if the tooling actuator moves in a downward
direction to make thicker parison walls, then select Diverge.
If the tooling actuator moves in an upward direction to make
thicker parison walls, select Converge as the tooling type
selection.
CONVERGE/DIVERGE SELECT
DCDT / SSI is highlighted. Press Set and the Tooling screen
Figure 1-35
appears " " with Converge highlighted. Select
DIVERGE or CONVERGE by rotating the ENTRY KNOB in a
cw or ccw direction. When the selection is made, push Set.
© MOOG 2010
This document is subject to MOOG INTELLECTUAL AND PROPRIETARY INFORMATION LEGEND . The details are on page II.
" will appear.
Converge

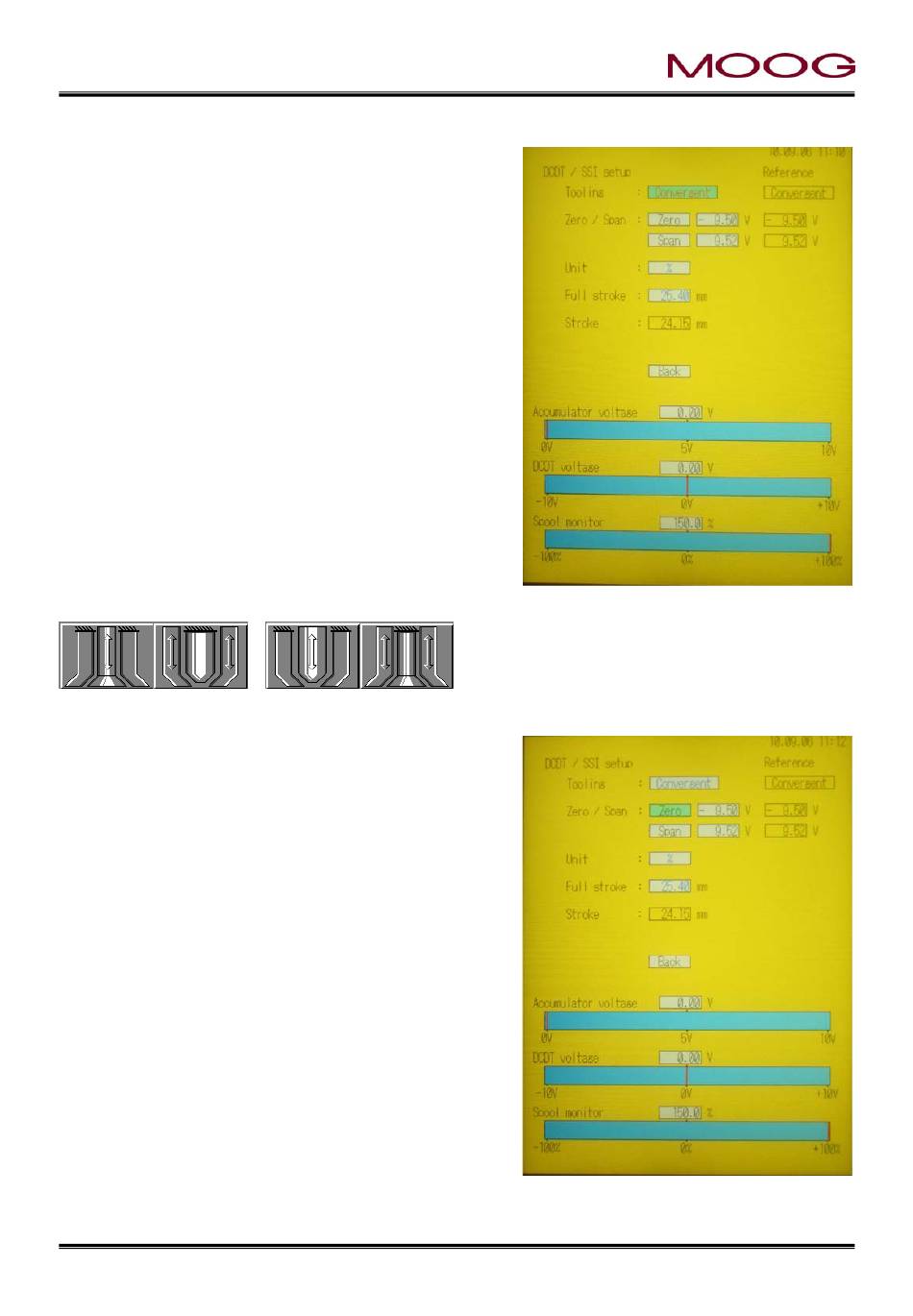

Figure 1-35 Die Converge/Diverge Setup

Figure 1-36 Die Gap Setup
