SD card slot
DigiPackⅡ FRONT PANEL
1-7-4.
OPERATIONS CONTROLS
The operator will setup and monitor the parison wall thickness program using the display, entry controls,
function switches and Led's on the DigiPackⅡ's front panel, shown in "
All of the functions normally required to program the parison and machine are available on the front panel.
|INPUT FUNCTION SELECTION AND VALUE
Entry Knob
Used to enter the value of various functions. Rotation in a clockwise
X10
Increases the sensitivity of the Entry Knob by a factor of 10
Set
Push to set value
Cursor
Used to scroll the items on the LCD in the direction indicated by the triangular shape
Highlighting is used to indicate the action FUNCTION or its VALUE to the operator. In "
1-33
" the value of Point No., 1 is highlighted as shown in this case highlighting indicates that the
value of Point No. may be changed by rotating the ENTRY KNOB.
© MOOG 2010
This document is subject to MOOG INTELLECTUAL AND PROPRIETARY INFORMATION LEGEND . The details are on page II.

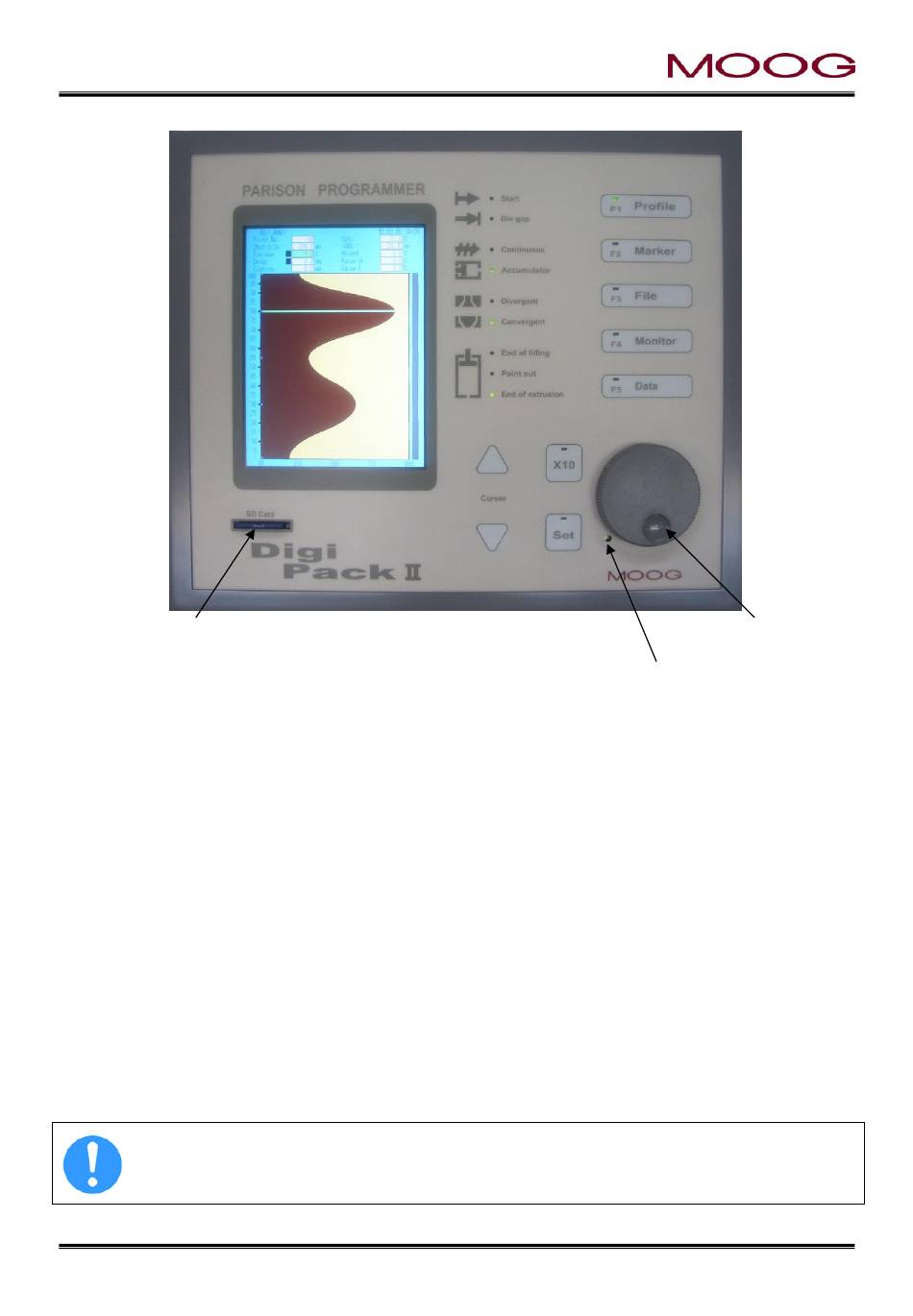

Figure 1-33 DigiPackⅡ Front Panel
32
Entry Knob
Beep sound speaker
Figure 1-33
"^,
MRJ04410
Figure
