F2: Marker Mode
2-4-3.
File Number and
Container Name
Current Cursor
Position
Year : Month : Day
Time: Minute
Set of time
Mode is obtained by pushing the F2 Key.
Display
Available when manufacturing containers.
Point No.
Set the profile point marker up to 10 points on the profile. To set these conditions, move from point to point
using the Cursor Key and set point number with the Entry Knob and press Set Key to confirm. The value
can be set from 0 to 100, and If set point number to "0", this mean not set this marker point.
Use
May be used to provide a pulse output occurring at a selectable point in the DigiPackⅡcycle to control
and/or synchronize machine functions or for other uses.
Die gap slope
The slope or velocity of the motion to the "Die Gap" setting
position, when the Die Gap signal is given. Setting range is 0.1 to
999.9%/sec.
© MOOG 2010
This document is subject to MOOG INTELLECTUAL AND PROPRIETARY INFORMATION LEGEND . The details are on page II.

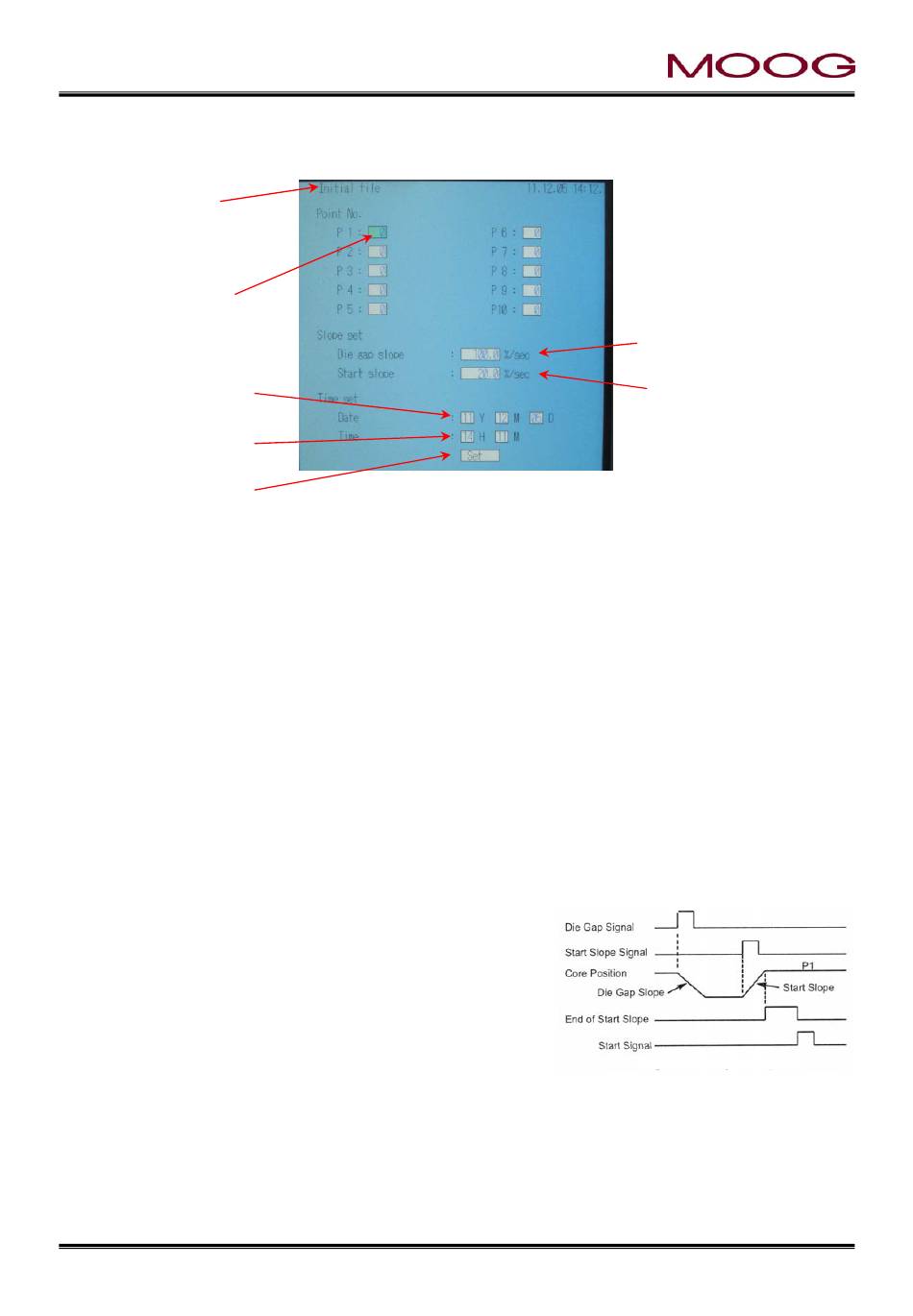

Figure 2-15 Marker Mode Screen
58
Die Gap Slope
Start Slope
Figure 2-16 Slope Timing
MRJ04410
