INSTALLATION TIME
1-2-3.
The time to install a DigiPackⅡvaries with the type and size of machine, mechanical constraints such as
the location of water lines and auxiliary equipment and the ability of the mechanic doing the installation.
Our experience has shown that typical maintenance men will require about 20 to 30 man hours. Smaller
machines will require less time.
Of this time, the actual machine shut down time can be held to 6 hours or less.
SOFTWARE UPDATE
1-2-4.
When the Software version is upgraded, we will release new software as "DIGIPK2.FWM". This is very easy
to upgraded, see following description.
Update Process
1.
Power OFF DigiPackⅡand take out SD card from slot.
2.
Save "DIGIPK2.FWM" file in to SD card with using your PC. (
3.
Put SD card in to DigiPackⅡagain. And Power ON DigiPackⅡ.
4.
While Power up process (before showing start up display, see
and "Cursor Down
5.
If display indicate "Updating firmware.........", update process running.
6.
Then showing startup display now, please check software version.(

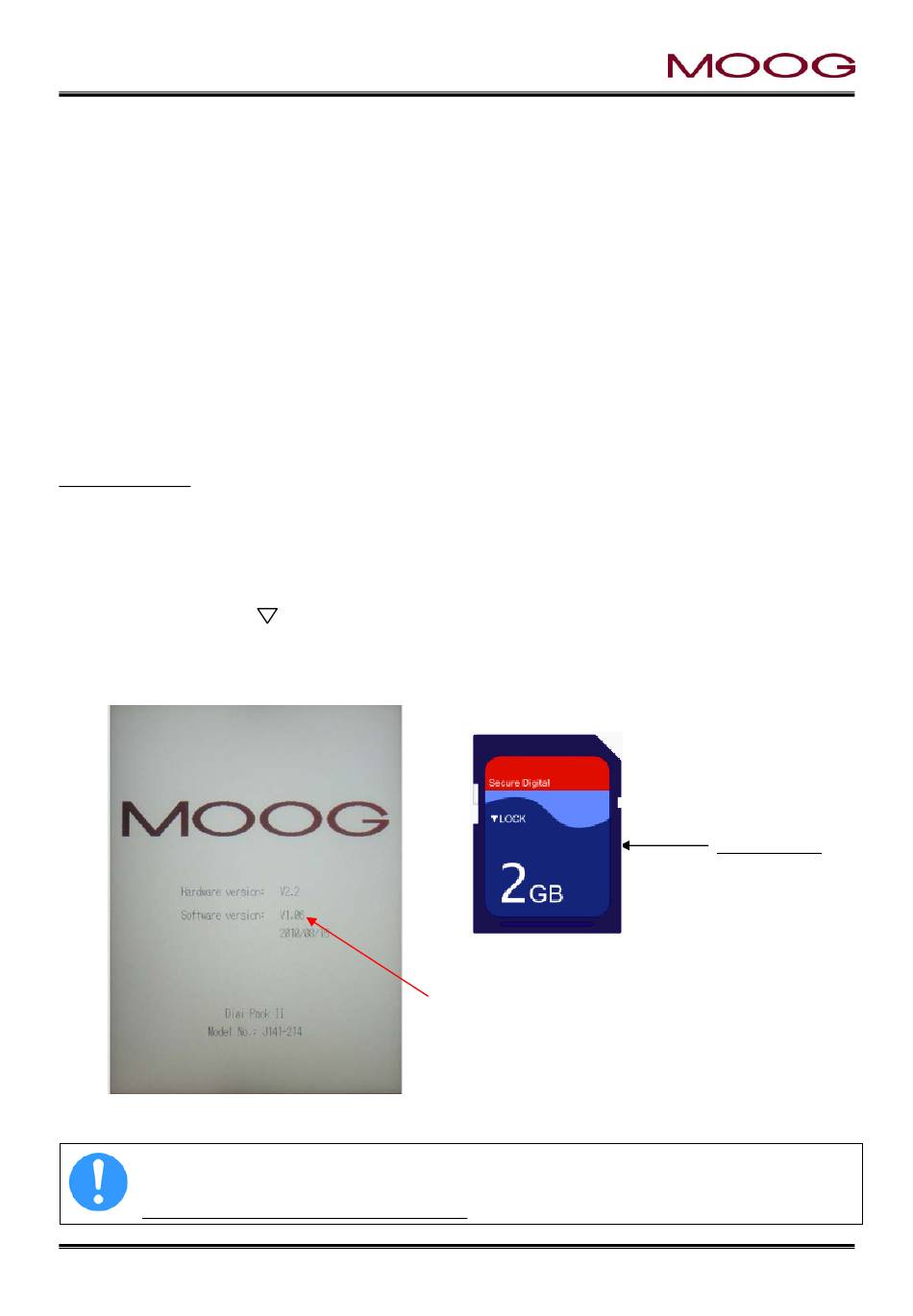

Figure 1-4 Start up Display
The SD card is enclosed with DigiPackⅡ. And "DIGIPK2.FWM" is already saved in SD card, if
released new file of "DIGIPK2.FWM", pleas overwriting new file.
SD card (2GByte) Parts No.; CA95932-001
© MOOG 2010
This document is subject to MOOG INTELLECTUAL AND PROPRIETARY INFORMATION LEGEND . The details are on page II.
" same time. The key location, please refer to
Software Version
Figure 1-3
Figure 1-4
Figure 1-33
Figure 1-4
Figure 1-3 SD card
5
)
), Press two keys "X10"
.
)
Save
DIGIPK2.FWM
MRJ04410
