Range L

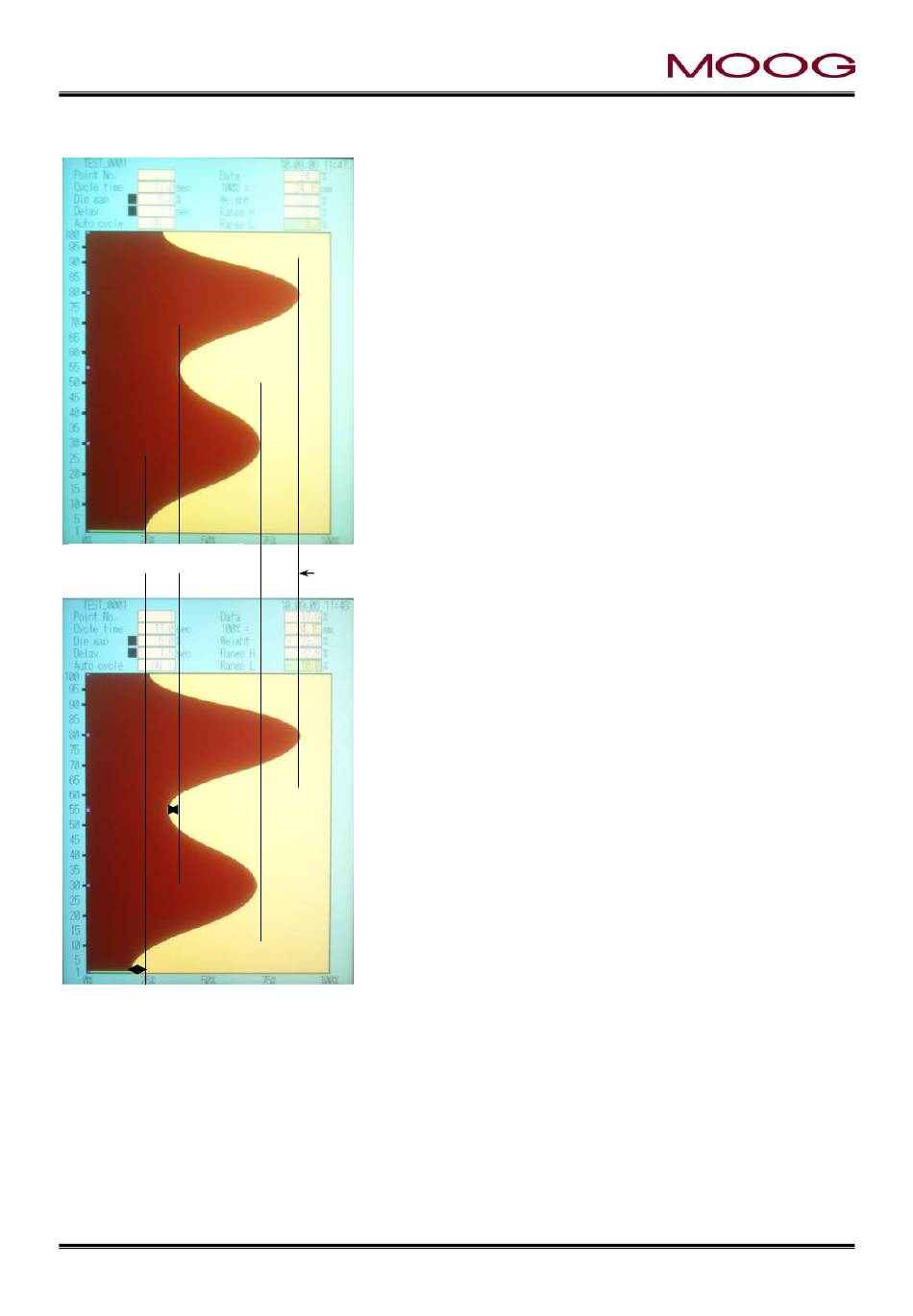

Figure 2-13 0% Range L
Figure 2-14 (-)10.0% Range L
© MOOG 2010
This document is subject to MOOG INTELLECTUAL AND PROPRIETARY INFORMATION LEGEND . The details are on page II.
Range L changes the value of all profile points by a percentage of
the difference between the thickest and thinnest points. The
value of the thickest profile point remains constant during a
Range L change. Range L can vary between –3276.7% and +100%.
Range L may be changed until the thinnest profile point reaches
zero. Use the Entry Knob and Set to change the Range L setting.
The percentage Range L change will remain displayed after being
Set. When the Entry Knob is turned again the new Range L
entry will start at zero using the current display as a reference. If
the Entry Knob is accidentally moved and the displayed Range L
value changed, it will revert to its former value if Set is not
pressed and the Cursor used.
Range L has the effect of allowing container weight changes while
retaining the containers maximum wall thickness distribution
pattern.
Thickest
Point
Figure 2-14
shows the effect of a Range L decrease of
from the Range L value of 0% in
easier to visualize, reference lines drawn between the figures
starting at four different parison wall thickness program points
have been included.
Range L will use the thickness parison wall thickness program
point as a reference and will not change its thickness. The Range
L change will be largest at the minimum parison wall thickness
point, and proportionately less at the intermediate parison wall
thickness points.
57
Figure 2-13
. To make the change
MRJ04410
–10.0%
