F4: Monitor Mode
2-4-5.
Mode obtained by pressing the F4 key.
Display
Available at all times. But not available to change manual
mode when manufacturing containers
Manual Mode is used to display and/or control the positions
of the tooling actuator (DCDT) and the value of the ser-
vovalve input current as well as the Output ON/OFF func-
tions. Auto Mode ONLY displays the above information.
Commands
The Cursor is used to move to the various commands only
in MANUAL mode. The Set Key is inactive. The displayed
values reflect the actual positions or servovalve current. (or
Spool position in EFB mode)
Output
There are 7 output commands which may be changed with the Entry Knob. Counter-clockwise rotation
produces a 0 (OFF) and Clockwise rotation a 1 (ON).
The functions controlled are: (1) End of Filling; (2) End of Extrusion; (3) Point out; (4) Production; (5) End of
Start slope; (6) Ready; (7) Alarm.
Input
There are 10 input commands to monitoring the following functions: (1) Start, (2) Die gap; (3) Reset; (4)
Stop; (5) Function 1; (6) Function 2; (7) Function 3; (8) Function 4, (9) Start Slope, (10) Servo off.
Core check
When the display Cursor points to "Core check", it is possible to control the tooling position in closed loop
using the Entry Knob between 0 to over 3276.7%. (100% = Span position)
Open command
When the display Cursor points to "Open command", it is possible to control the value of the servovalve
input current with the Entry Knob.
© MOOG 2010
This document is subject to MOOG INTELLECTUAL AND PROPRIETARY INFORMATION LEGEND . The details are on page II.

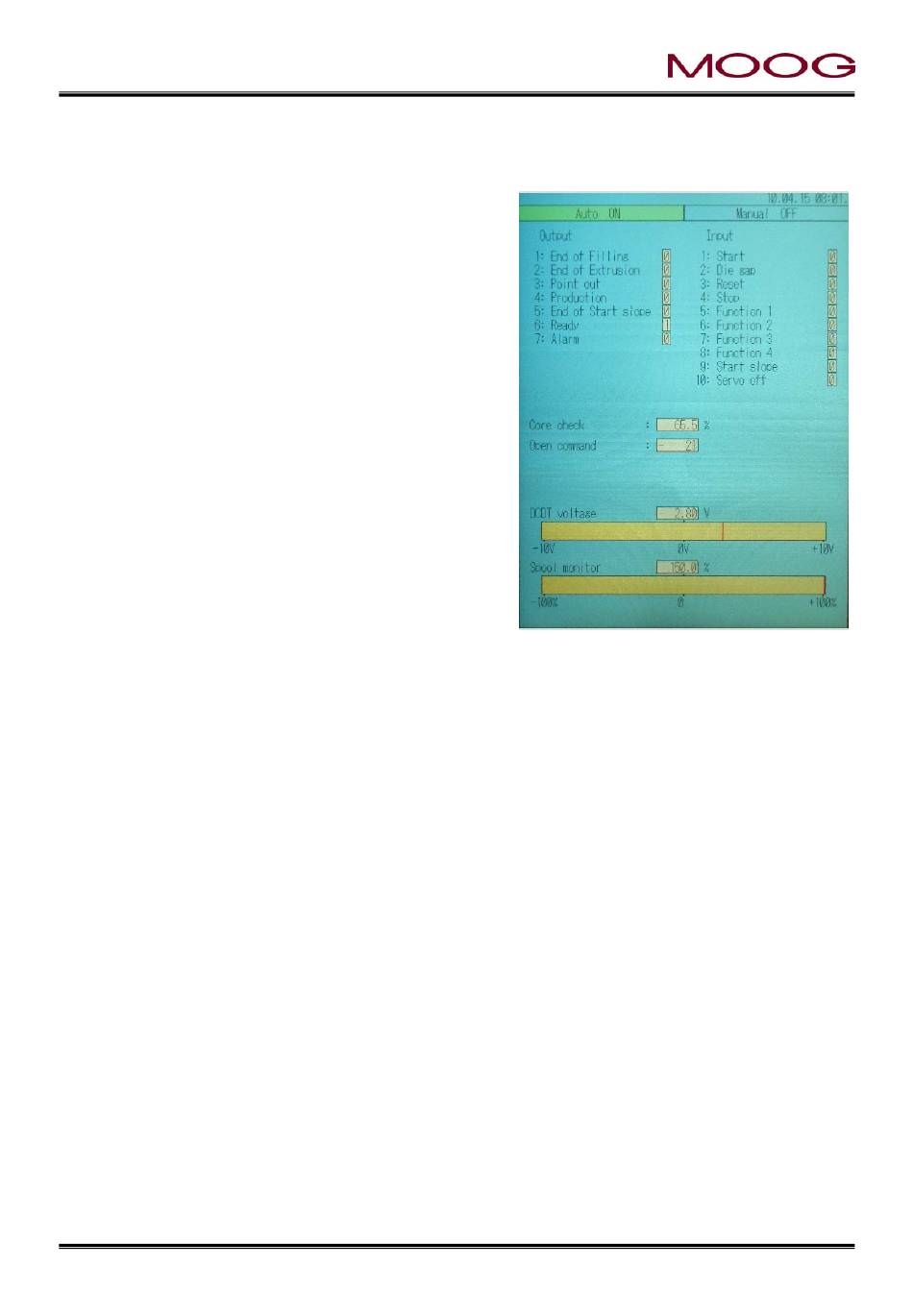

Figure 2-26 F4: Monitor Mode Screen
