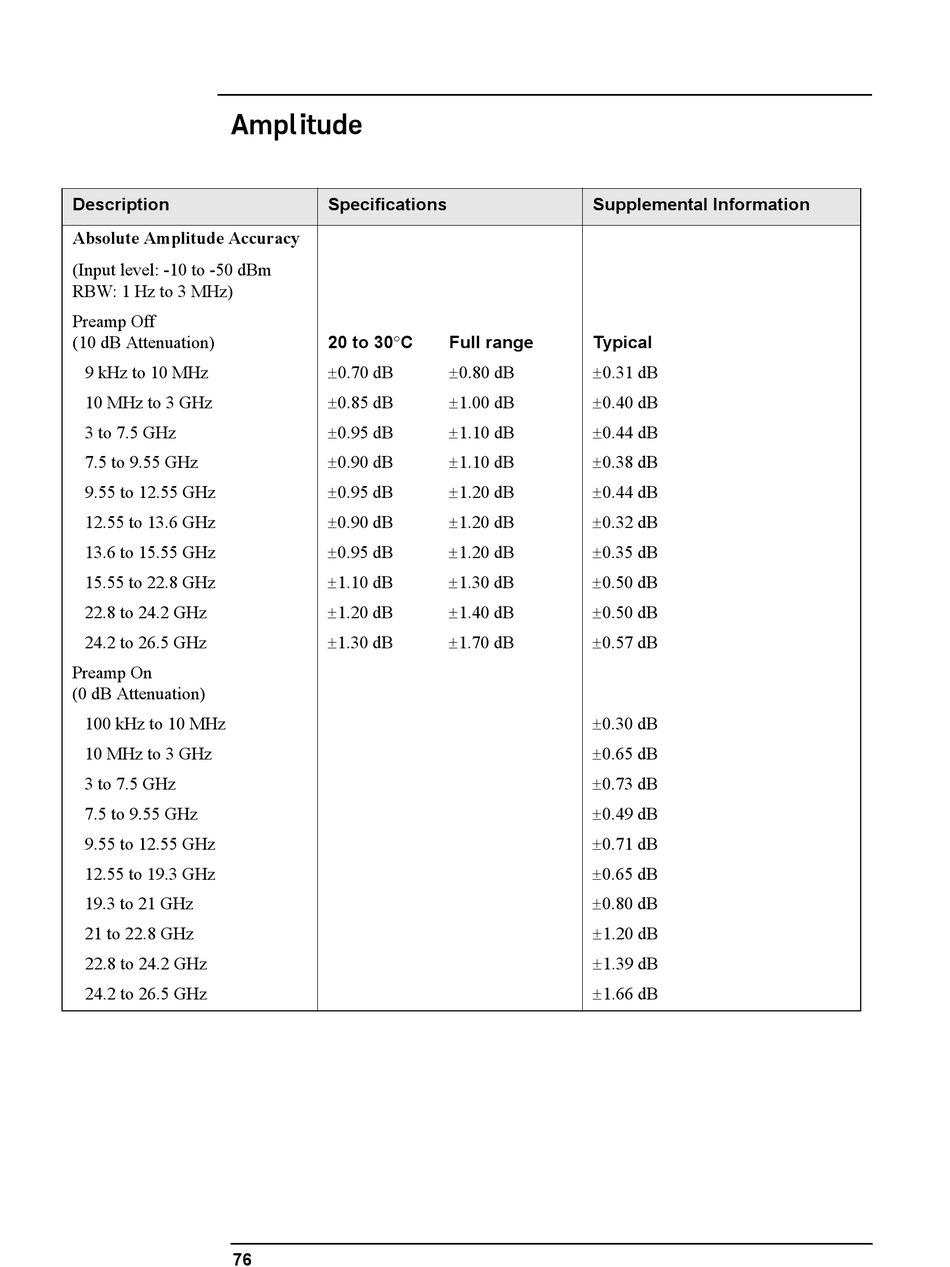

Amplitude

Description

Absolute Amplitude Accuracy

(Input level: -10 to -50 dBm
RBW: 1 Hz to 3 MHz)
Preamp Off
(10 dB Attenuation)
9 kHz to 10 MHz
10 MHz to 3 GHz
3 to 7.5 GHz
7.5 to 9.55 GHz
9.55 to 12.55 GHz
12.55 to 13.6 GHz
13.6 to 15.55 GHz
15.55 to 22.8 GHz
22.8 to 24.2 GHz
24.2 to 26.5 GHz
Preamp On
(0 dB Attenuation)
100 kHz to 10 MHz
10 MHz to 3 GHz
3 to 7.5 GHz
7.5 to 9.55 GHz
9.55 to 12.55 GHz
12.55 to 19.3 GHz
19.3 to 21 GHz
21 to 22.8 GHz
22.8 to 24.2 GHz
24.2 to 26.5 GHz
76
Specifications
20 to 30C Full range
0.70 dB 0.80 dB
0.85 dB 1.00 dB
0.95 dB 1.10 dB
0.90 dB 1.10 dB
0.95 dB 1.20 dB
0.90 dB 1.20 dB
0.95 dB 1.20 dB
1.10 dB 1.30 dB
1.20 dB 1.40 dB
1.30 dB 1.70 dB
Supplemental Information
Typical
0.31 dB
0.40 dB
0.44 dB
0.38 dB
0.44 dB
0.32 dB
0.35 dB
0.50 dB
0.50 dB
0.57 dB
0.30 dB
0.65 dB
0.73 dB
0.49 dB
0.71 dB
0.65 dB
0.80 dB
1.20 dB
1.39 dB
1.66 dB
