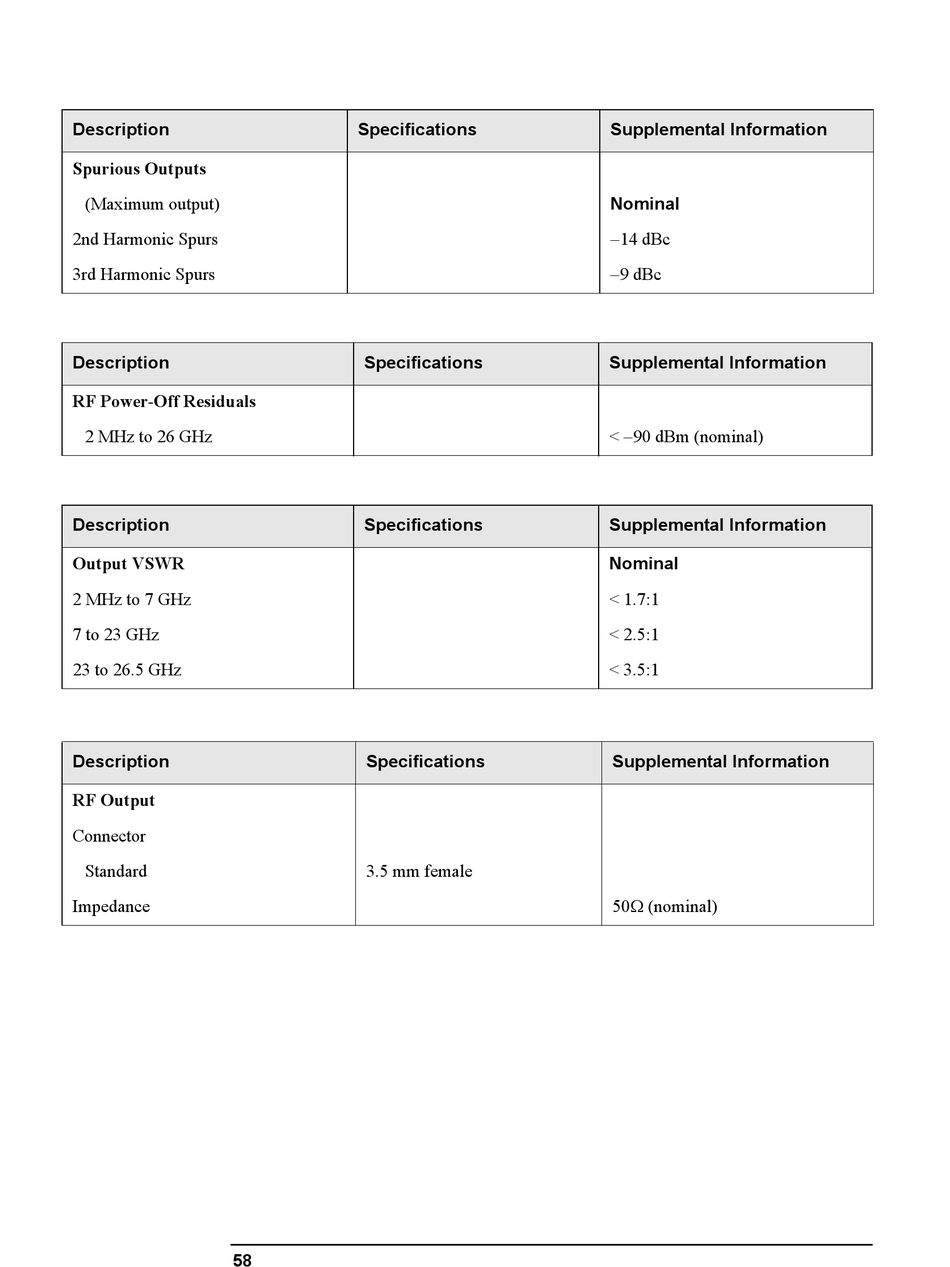

Description
Spurious Outputs
(Maximum output)
2nd Harmonic Spurs
3rd Harmonic Spurs
Description
RF Power-Off Residuals
2 MHz to 26 GHz
Description
Output VSWR
2 MHz to 7 GHz
7 to 23 GHz
23 to 26.5 GHz
Description
RF Output
Connector
Standard
Impedance
58
Specifications
Specifications
Specifications
Specifications
3.5 mm female
Supplemental Information
Nominal
14 dBc
9 dBc
Supplemental Information
< 90 dBm (nominal)
Supplemental Information
Nominal
< 1.7:1
< 2.5:1
< 3.5:1
Supplemental Information
50 (nominal)
