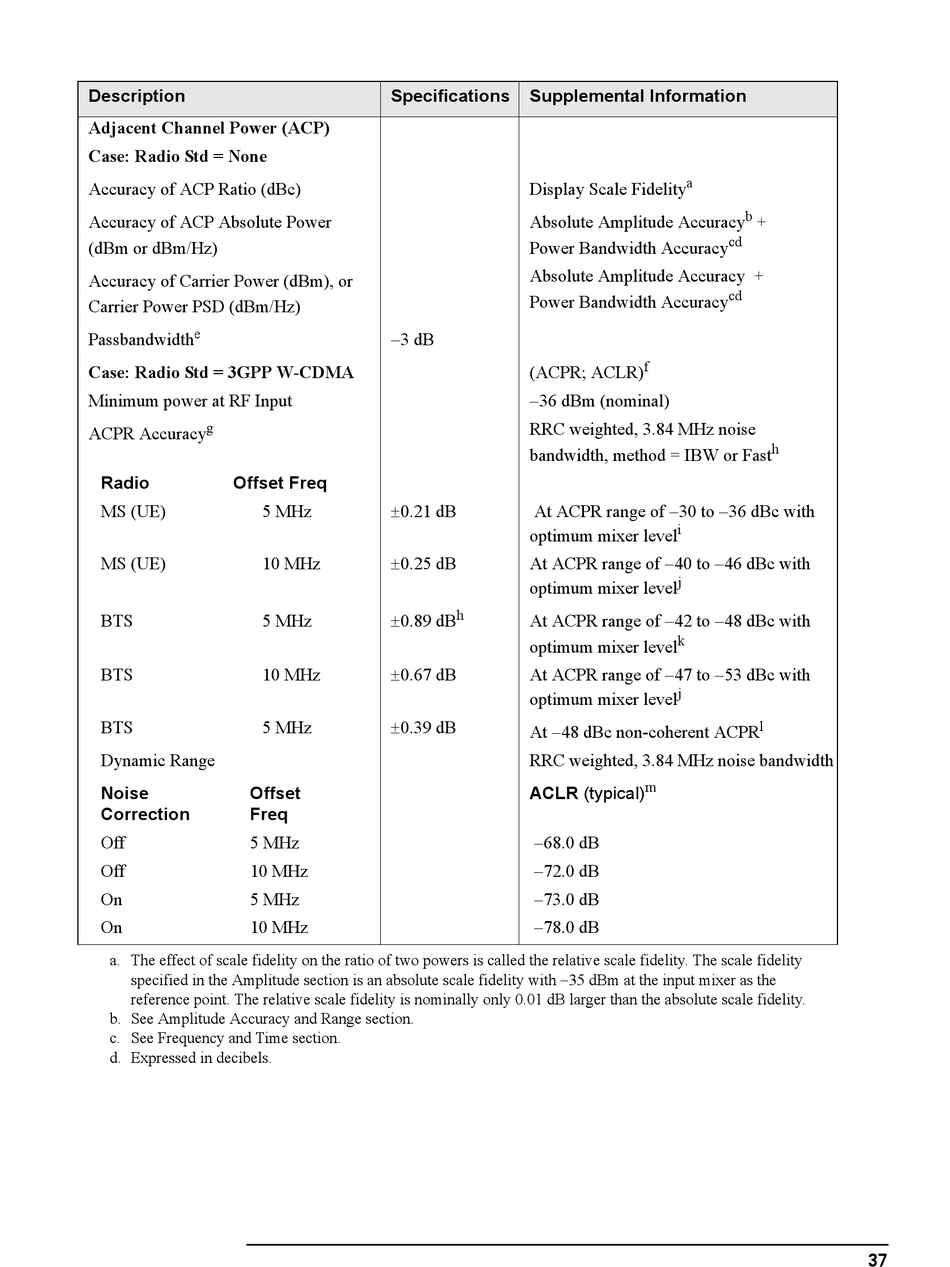

Adjacent Channel Power (Acp) - Keysight M9290A Manual

Description

Adjacent Channel Power (ACP)

Case: Radio Std = None
Accuracy of ACP Ratio (dBc)
Accuracy of ACP Absolute Power
(dBm or dBm/Hz)
Accuracy of Carrier Power (dBm), or
Carrier Power PSD (dBm/Hz)
e
Passbandwidth
Case: Radio Std = 3GPP W-CDMA
Minimum power at RF Input
g
ACPR Accuracy
Radio Offset Freq
MS (UE) 5 MHz
MS (UE) 10 MHz
BTS 5 MHz
BTS 10 MHz
BTS 5 MHz
Dynamic Range
Noise Offset
Correction Freq
Off 5 MHz
Off 10 MHz
On 5 MHz
On 10 MHz
a. The effect of scale fidelity on the ratio of two powers is called the relative scale fidelity. The scale fidelity
specified in the Amplitude section is an absolute scale fidelity with 35 dBm at the input mixer as the
reference point. The relative scale fidelity is nominally only 0.01 dB larger than the absolute scale fidelity.
b. See Amplitude Accuracy and Range section.
c. See Frequency and Time section.
d. Expressed in decibels.
Specifications Supplemental Information
Display Scale Fidelity
Absolute Amplitude Accuracy
Power Bandwidth Accuracy
Absolute Amplitude Accuracy +
Power Bandwidth Accuracy
3 dB
(ACPR; ACLR)
36 dBm (nominal)
RRC weighted, 3.84 MHz noise
bandwidth, method = IBW or Fast
0.21 dB At ACPR range of 30 to 36 dBc with
optimum mixer level
0.25 dB At ACPR range of 40 to 46 dBc with
optimum mixer level
h
0.89 dB At ACPR range of 42 to 48 dBc with
optimum mixer level
0.67 dB At ACPR range of 47 to 53 dBc with
optimum mixer level
0.39 dB
At 48 dBc non-coherent ACPR
RRC weighted, 3.84 MHz noise bandwidth
ACLR (typical)
68.0 dB
72.0 dB
73.0 dB
78.0 dB
a
b
+
cd
cd
f
h
i
j
k
j
l
m
37
