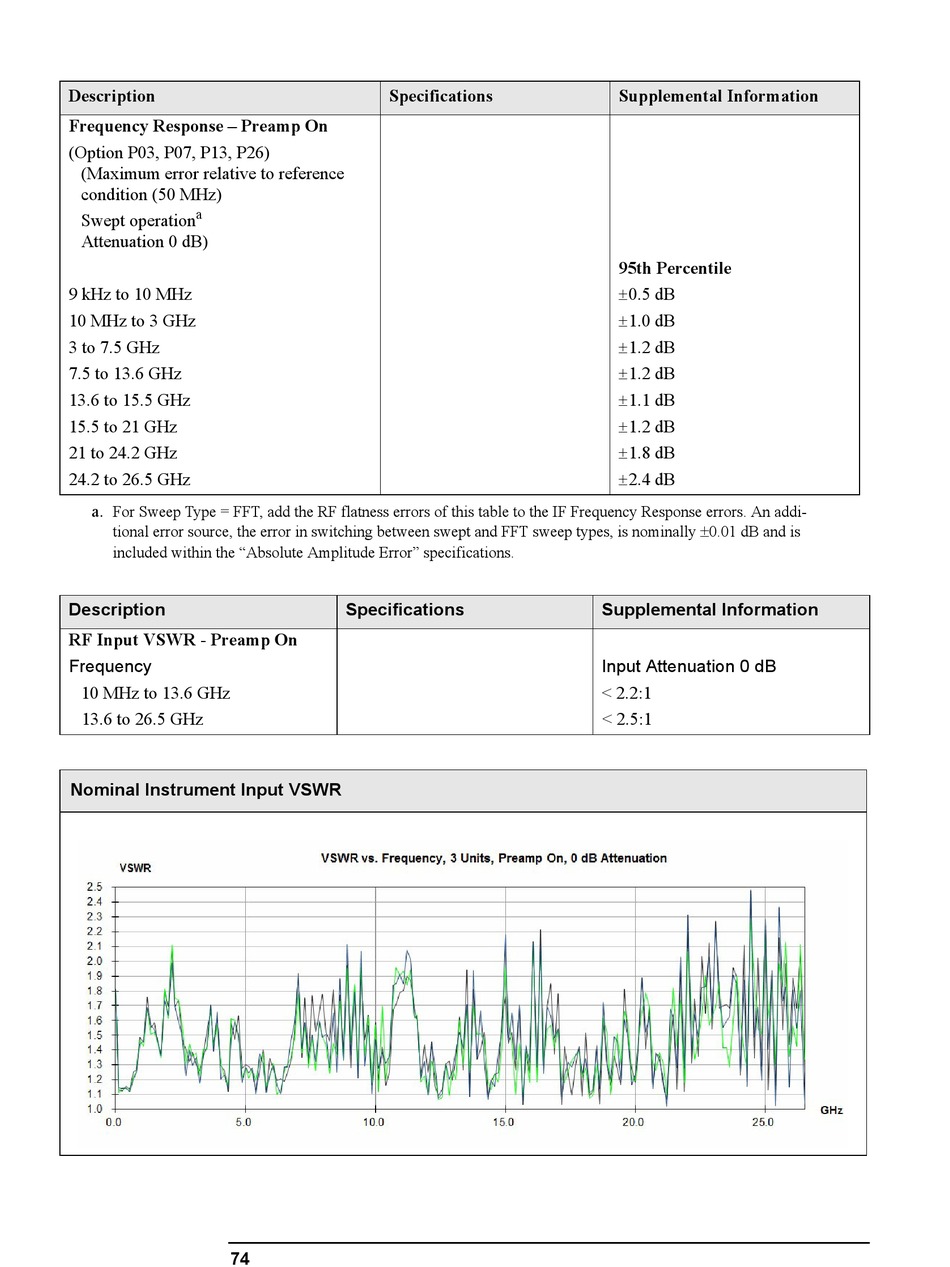

Description
Frequency Response – Preamp On
(Option P03, P07, P13, P26)
(Maximum error relative to reference
condition (50 MHz)
a
Swept operation
Attenuation 0 dB)
9 kHz to 10 MHz
10 MHz to 3 GHz
3 to 7.5 GHz
7.5 to 13.6 GHz
13.6 to 15.5 GHz
15.5 to 21 GHz
21 to 24.2 GHz
24.2 to 26.5 GHz
a.
For Sweep Type = FFT, add the RF flatness errors of this table to the IF Frequency Response errors. An addi-
tional error source, the error in switching between swept and FFT sweep types, is nominally 0.01 dB and is
included within the "Absolute Amplitude Error" specifications.
Description
RF Input VSWR - Preamp On
Frequency
10 MHz to 13.6 GHz
13.6 to 26.5 GHz
Nominal Instrument Input VSWR
74
Specifications
Specifications
Supplemental Information
95th Percentile
0.5 dB
1.0 dB
1.2 dB
1.2 dB
1.1 dB
1.2 dB
1.8 dB
2.4 dB
Supplemental Information
Input Attenuation 0 dB
< 2.2:1
< 2.5:1
