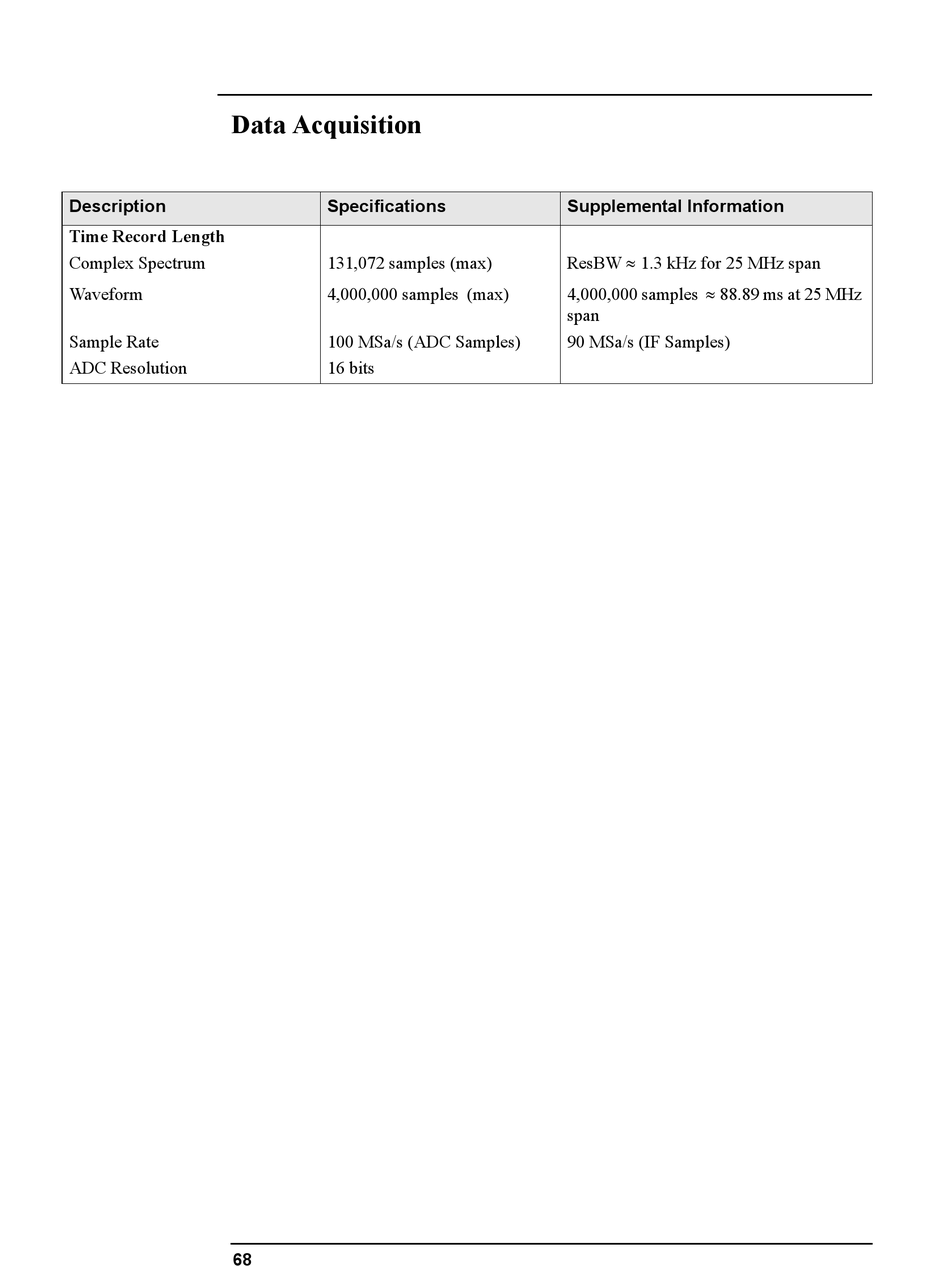

Data Acquisition
Description
Time Record Length
Complex Spectrum
Waveform
Sample Rate
ADC Resolution
68
Specifications
131,072 samples (max)
4,000,000 samples (max)
100 MSa/s (ADC Samples)
16 bits
Supplemental Information
ResBW 1.3 kHz for 25 MHz span
4,000,000 samples 88.89 ms at 25 MHz
span
90 MSa/s (IF Samples)
