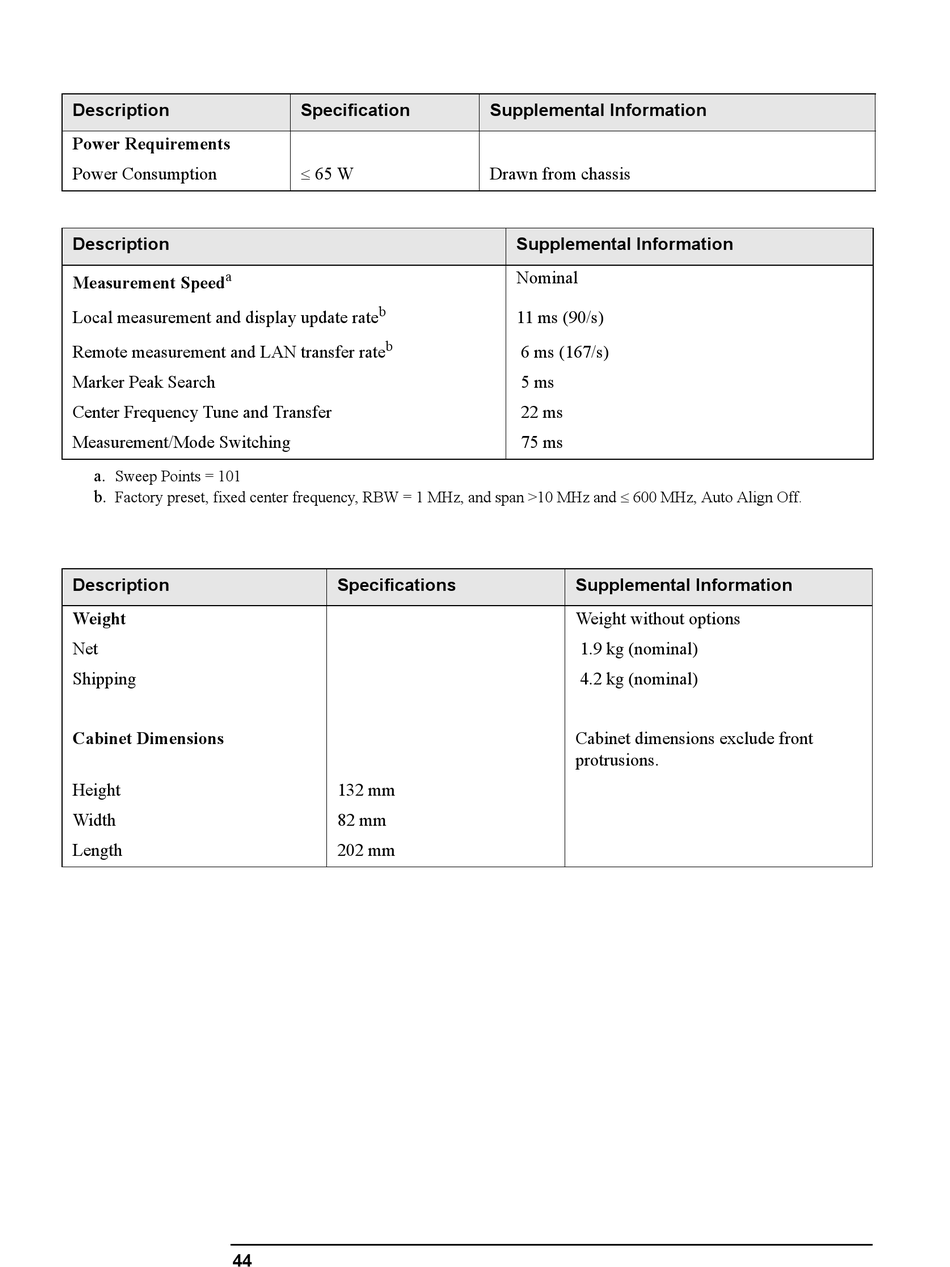

Description
Power Requirements
Power Consumption
Description
a
Measurement Speed
Local measurement and display update rate
Remote measurement and LAN transfer rate
Marker Peak Search
Center Frequency Tune and Transfer
Measurement/Mode Switching
a.
Sweep Points = 101
b.
Factory preset, fixed center frequency, RBW = 1 MHz, and span >10 MHz and 600 MHz, Auto Align Off.
Description
Weight
Net
Shipping
Cabinet Dimensions
Height
Width
Length
44
Specification
65 W
b
b
Specifications
132 mm
82 mm
202 mm
Supplemental Information
Drawn from chassis
Supplemental Information
Nominal
11 ms (90/s)
6 ms (167/s)
5 ms
22 ms
75 ms
Supplemental Information
Weight without options
1.9 kg (nominal)
4.2 kg (nominal)
Cabinet dimensions exclude front
protrusions.
