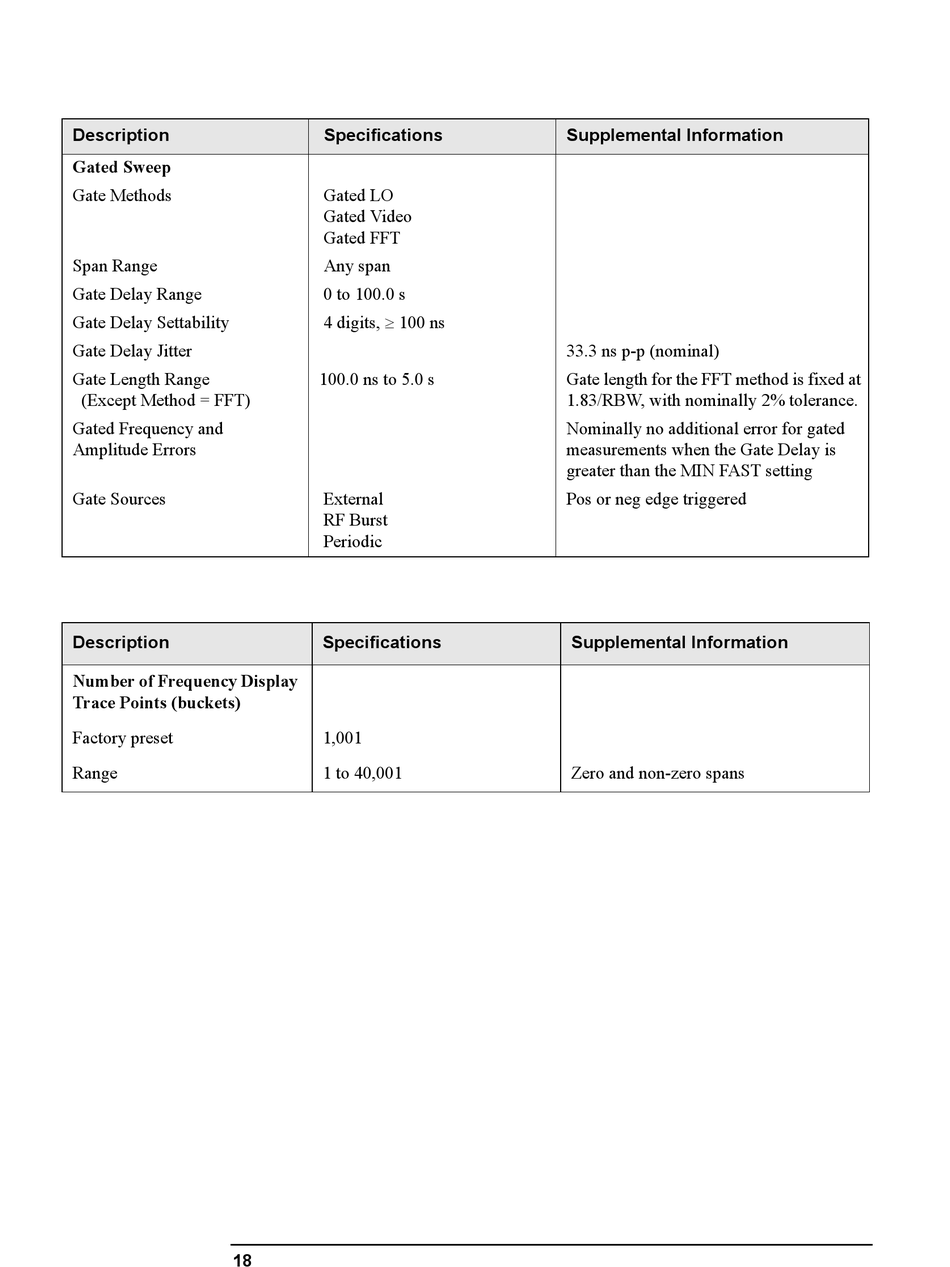

Description

Gated Sweep

Gate Methods
Span Range
Gate Delay Range
Gate Delay Settability
Gate Delay Jitter
Gate Length Range
(Except Method = FFT)
Gated Frequency and
Amplitude Errors
Gate Sources
Description
Number of Frequency Display
Trace Points (buckets)
Factory preset
Range
18
Specifications
Gated LO
Gated Video
Gated FFT
Any span
0 to 100.0 s
4 digits,  100 ns
100.0 ns to 5.0 s
External
RF Burst
Periodic
Specifications
1,001
1 to 40,001
Supplemental Information
33.3 ns p-p (nominal)
Gate length for the FFT method is fixed at
1.83/RBW, with nominally 2% tolerance.
Nominally no additional error for gated
measurements when the Gate Delay is
greater than the MIN FAST setting
Pos or neg edge triggered
Supplemental Information
Zero and non-zero spans
