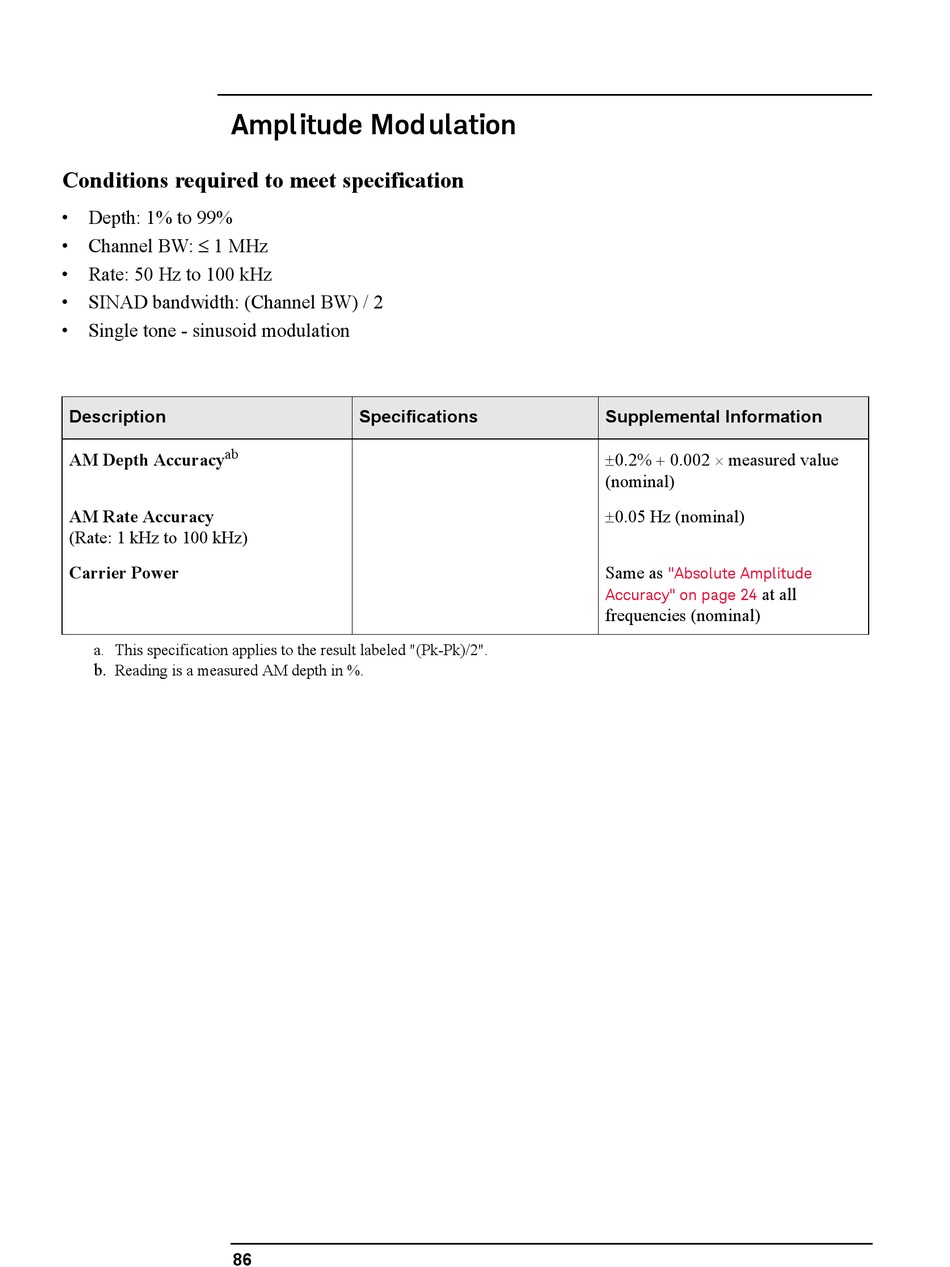

Amplitude Mod ulation
Conditions required to meet specification
• Depth: 1% to 99%
1 MHz
• Channel BW: 
• Rate: 50 Hz to 100 kHz
• SINAD bandwidth: (Channel BW) / 2
• Single tone - sinusoid modulation
Description
ab
AM Depth Accuracy
AM Rate Accuracy
(Rate: 1 kHz to 100 kHz)
Carrier Power
a. This specification applies to the result labeled "(Pk-Pk)/2".
b.
Reading is a measured AM depth in %.
86
Specifications Supplemental Information
0.2  0.002  measured value
(nominal)
0.05 Hz (nominal)
Same as "Absolute Amplitude
Accuracy" on page 24 at all
frequencies (nominal)
