Wire the Power Connector (If Needed)
If you ordered a Source Four LED Series 3 without a power connector, wire the connector in
accordance with all national and local electrical codes:
Brown = Live
•
Blue = Neutral
•
Green/Yellow = Protective earth
•

Focus the Fixture

1. Apply power to the fixture, and wait until the fixture has booted up (the ETC splash screen
displays during boot up).
2. Press any encoder to "wake" the display.
3. What screen is currently displayed?
DMX: Press any encoder to leave the view-only screen, and then press the Intensity
•
encoder to turn on the LED array. The display shows a timeout countdown to indicate
how long the LED array will remain on at 100% intensity. You can turn the Intensity
encoder to reset the timeout countdown to 5 minutes.
All other screens (Studio, Preset, etc.): Press the Intensity encoder to turn on the
•
LED array, and turn the Intensity encoder to adjust the intensity.
WARNING:
weight to the front of the fixture. Use caution to control unintended fixture
movement when adjusting the fixture tilt.
AVERTISSEMENT :
que le nez optique ajoute du poids à l'avant de l'appareil. Soyez prudent
afin de contrôler des mouvements involontaires du luminaire lors du réglage
de son inclinaison.

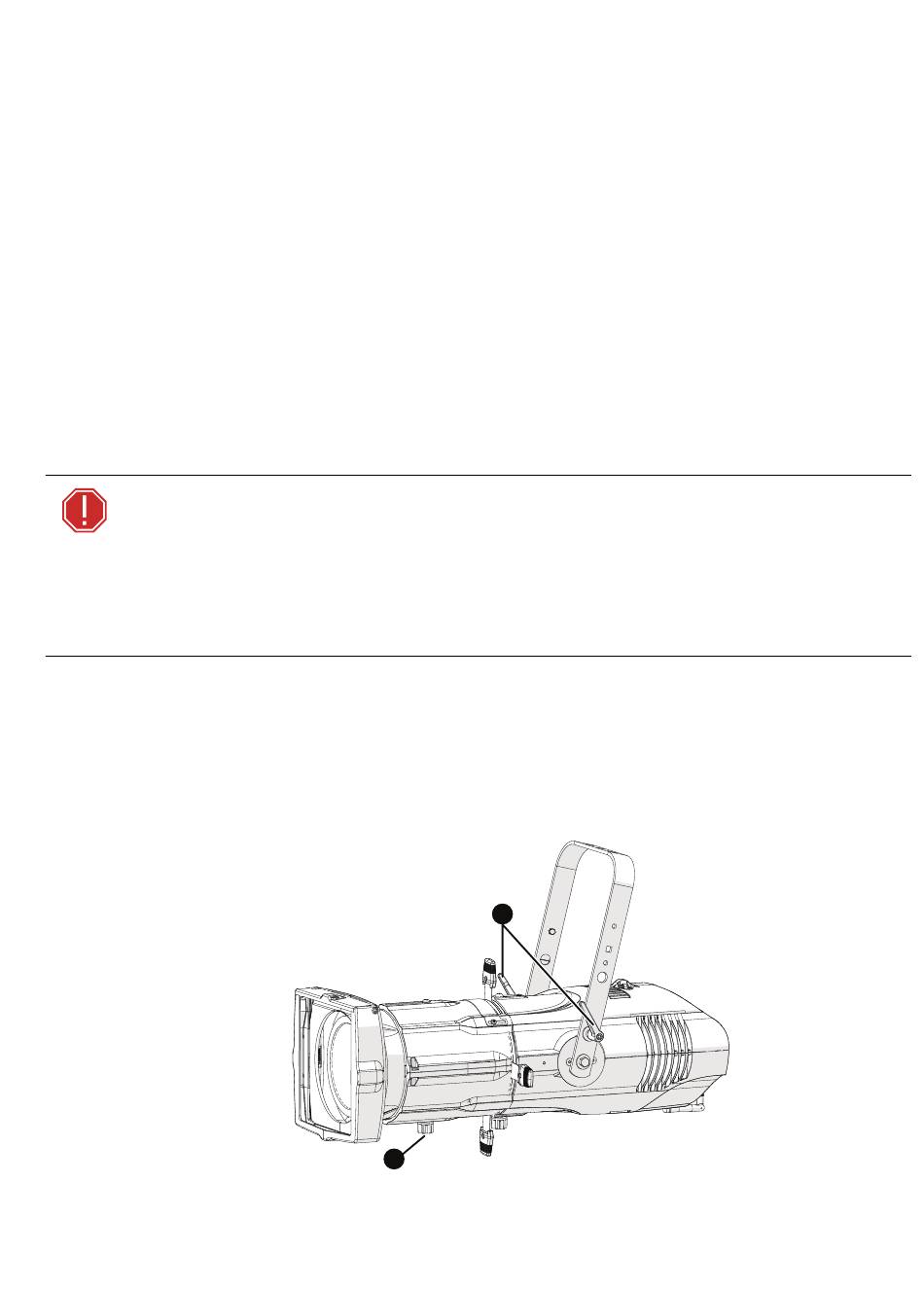

4. Adjust the fixture to the desired position:
a. Loosen the yoke tilt-locks (A), tilt the fixture as needed, and then tighten the tilt-
locks.
b. Loosen the beam focus knob (B), adjust the lens tube position as needed, and then
tighten the knob.
5. Press the Intensity encoder to turn off the LED array.
10
When adjusting the fixture tilt, be aware that a lens tube adds
Lorsque vous ajustez l'inclinaison de l'appareil, sachez
B
A
Source Four LED Series 3 User Manual
