ETC Installation Guide
ColorSource PAR v1.7
Overview

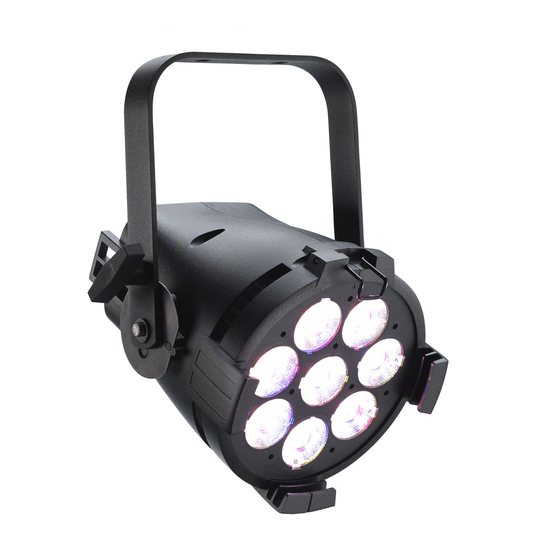

The ColorSource PAR is an affordable LED fixture that uses the RGB-L (red,
green, blue, and lime) color system to provide a rich, bright light.
The ColorSource PAR is available in both original and Deep Blue variants. The
Deep Blue uses an array that offers richer, more saturated blues and stronger
magentas in exchange for the more jewel-toned blues like sky or turquoise.
For more information, see the ETC website at etcconnect.com.
The ColorSource PAR is UL924 listed as a Directly Controlled Luminaire for
use in emergency lighting systems when used with the ETC DMX Emergency
Bypass Controller (DEBC).
Note:
of software. For information on updating fixture software, see
the Fixture Software on
Features described in this document require the latest version
page 11.
Corpora te He a dqua rte rs Middleton, WI, USA +1 608 831 4116
London, UK +44 (0)20 8896 1000 Holzk irc he n, DE +49 (80 24) 47 00-0
Rome , IT +39 (06) 32 111 683 Hong Kong +852 2799 1220 P a ris, FR +33 1 4243 3535
We b
etcconnect.com
Conta c t
etcconnect.com/contactETC
Product information and specifications subject to change. ETC intends this document
to be provided in its entirety. Trademark and patent
7 4 1 2 M 2 1 0 0 -1 .7 Rev D Released 2020-12
Support
support.etcconnect.com
© 2020 Electronic Theatre Controls, Inc.
Update
info: etcconnect.com/ip

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ColorSource PAR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ETC ColorSource PAR

Summary of Contents for ETC ColorSource PAR

  • Page 1 ColorSource PAR v1.7 Overview The ColorSource PAR is an affordable LED fixture that uses the RGB-L (red, green, blue, and lime) color system to provide a rich, bright light. The ColorSource PAR is available in both original and Deep Blue variants. The Deep Blue uses an array that offers richer, more saturated blues and stronger magentas in exchange for the more jewel-toned blues like sky or turquoise.
  • Page 2 RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La source lumineuse de ce projecteur n'est pas remplaçable par l'utilisateur et ne doit être remplacée seulement par un technicien qualifié. Contactez le service client ETC pour obtenir de l’assistance. ColorSource PAR Page 2 of 12...

  • Page 3: Important Safeguards

    ETC Installation Guide ColorSource PAR v1.7 IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS Do not use outdoors. The use of accessory • • Do not let power supply cords touch hot equipment not •...

  • Page 4: Typical Power Consumption

    ETC Installation Guide ColorSource PAR v1.7 Environment The ColorSource PAR operates in ambient temperatures of 0°C–40°C and comes with a variable-speed fan. The ColorSource PAR is for indoor use only. Maximum recommended ambient operating temperature: Ta = 40°C  • (104°F) Maximum anticipated external surface temperature at 40°C ambient: •...

  • Page 5: Installation

    ColorSource PAR to full illumination. Mounting The ColorSource PAR ships with a standard yoke for mounting with a clamp. An expandable floor stand yoke is available as an optional accessory. Contact your local dealer for more information.

  • Page 6: Adjust The Tilt

    ETC Installation Guide ColorSource PAR v1.7 Set Up the Fixture 1. Plug the power cord into the powerCON In connector on the rear of the fixture. 2. Make any power-thru cable connections prior to applying a power source. 3. Make any DMX connections, and if the fixture is the last in a DMX line, terminate the fixture.

  • Page 7: Set The Dmx Address

    ETC Installation Guide ColorSource PAR v1.7 Set the DMX Address 1. Press any button to wake the display. The display shows the DMX address. 2. Use the Up and Down buttons to select the DMX address for the fixture. You can also use RDM for DMX addressing. See RDM Values on page 12...

  • Page 8: Dmx Control Channels

    Strobe** Lime Strobe** *Original ColorSource PAR fixture uses blue in channel 4; Deep Blue fixture uses indigo in channel 4. **Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate from 1 per second up to 33 per second.
  • Page 9 ETC Installation Guide ColorSource PAR v1.7 Pre-configured Presets Preset Name Preset Name 3200 K White Magenta 5600 K White Yellow Orange Green Light Yellow Blue Light Blue Cyan Light Pink Pre-configured Sequences Sequence Name Rainbow Fast Rainbow Slow Warm Colors Fast Cool Colors Fast...
  • Page 10 ETC Installation Guide ColorSource PAR v1.7 Adjust the Intensity of Presets 1. Ensure that DMX data is not present. 2. Press the Mode button to access the Presets/Sequences menu, and then press the Up button or Down button to select the preset that you want to edit.
  • Page 11 ETC Installation Guide ColorSource PAR v1.7 Update the Fixture Software ETC recommends using UpdaterAtor software to manage software updates. For more information on UpdaterAtor, see the UpdaterAtor Software Quick Guide , which you can download for free from etcconnect.com. When you add a ColorSource fixture running a newer software version or...

  • Page 12: Restore Factory Defaults

    : Screen toggles between to indicate a problem with • the color calibration. The fixture will need to be returned to the ETC factory; contact your local dealer to set up a repair. : Screen toggles between to indicate that the fixture •...
