ETC Source Four User Manual

Source Four
User Manual

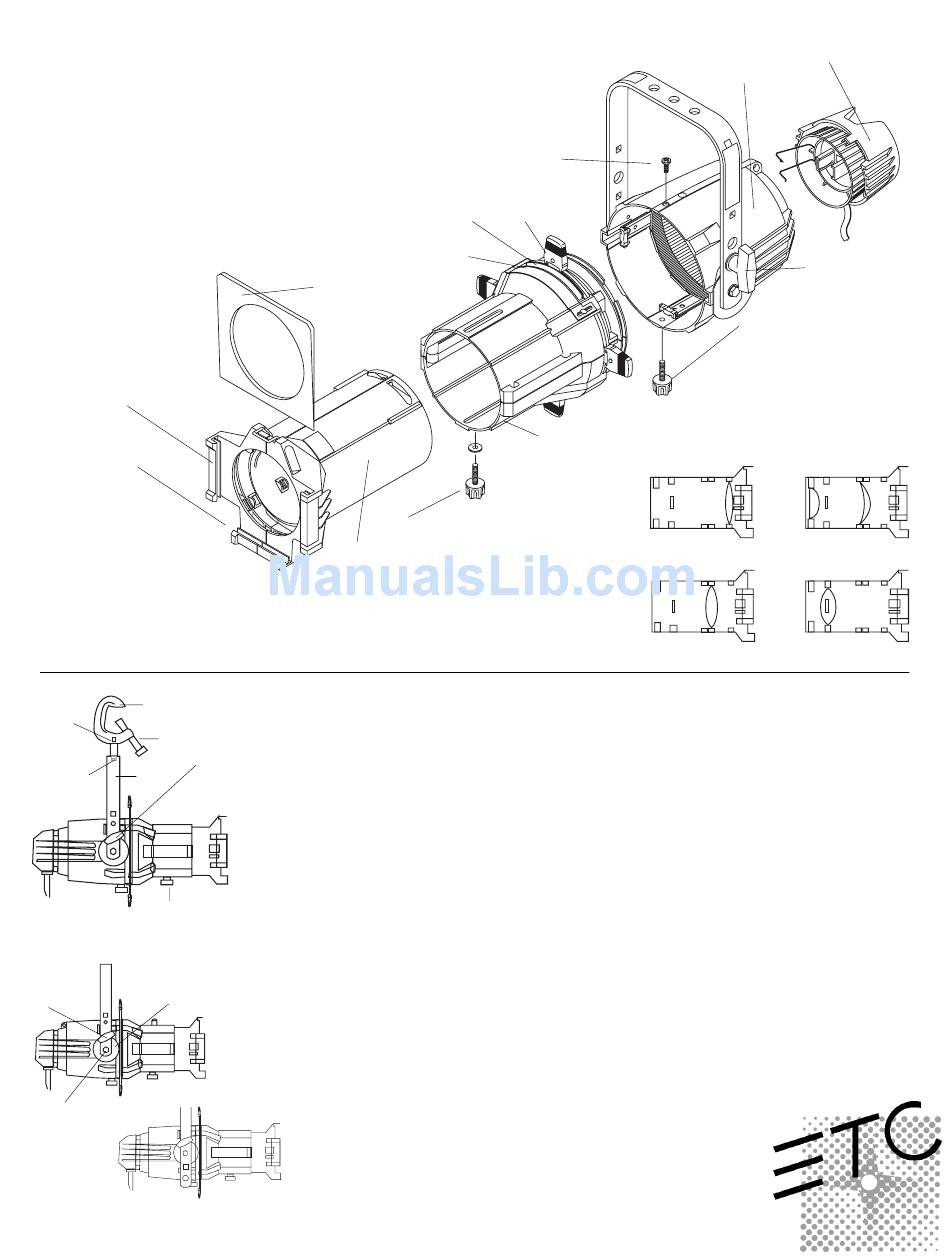

Retaining clip
Gel frame holder
C-clamp
Pan screw
Pipe bolt
Yoke bolt and
Yoke
lock washer
Beam focus knob
Yoke
Clutch disc
locking knob
Hex bolt
Optional yoke mounting position
Pattern holder slot
Gel frame
Lens tube
Adjusting the C-clamp
The C-clamp attaches the fixture to the mounting pipe and allows you to adjust the
position of the fixture once it is mounted.
Yoke locking
knob
1. Tightly fasten the C-clamp to the yoke with the yoke bolt and lock washer
provided.
2. Place the C-clamp on mounting pipe, then tighten the pipe bolt to secure it.
3. Loosen the C-clamp pan screw and rotate the yoke to the desired position.
4. Tighten the pan screw to lock the fixture into position.
Adjusting the yoke
To adjust the fixture's position, loosen the yoke locking knob and tilt the fixture to
the desired position. Retighten the yoke locking knob to secure it.
Source Four's two-position yoke allows you to modify the overall height of the
fixture in the yoke.
1. To change the yoke position, remove the yoke locking knob, then remove the
Figure A
hex bolts on either side of the fixture.
Note: Removing the hex bolts releases a nut in the
yoke channels on each side of the fixture. If the nuts
Figure B
come out, you may need to remove the barrel to
replace them.
2. Move the fixture to the desired position. (See Figure B)
3. Replace and tighten the hex bolts and the locking knob.
Retainer bolt
Shutters
Drop-in iris slot
Barrel
Beam focus knob
Lamp housing
Reflector housing
Yoke locking knob
Barrel rotation knob
Lens locations
Note: Lenses are not interchangeable.
19° (6x16)
36° (6x9)
26° (6x12)
50° (4.5x6)
