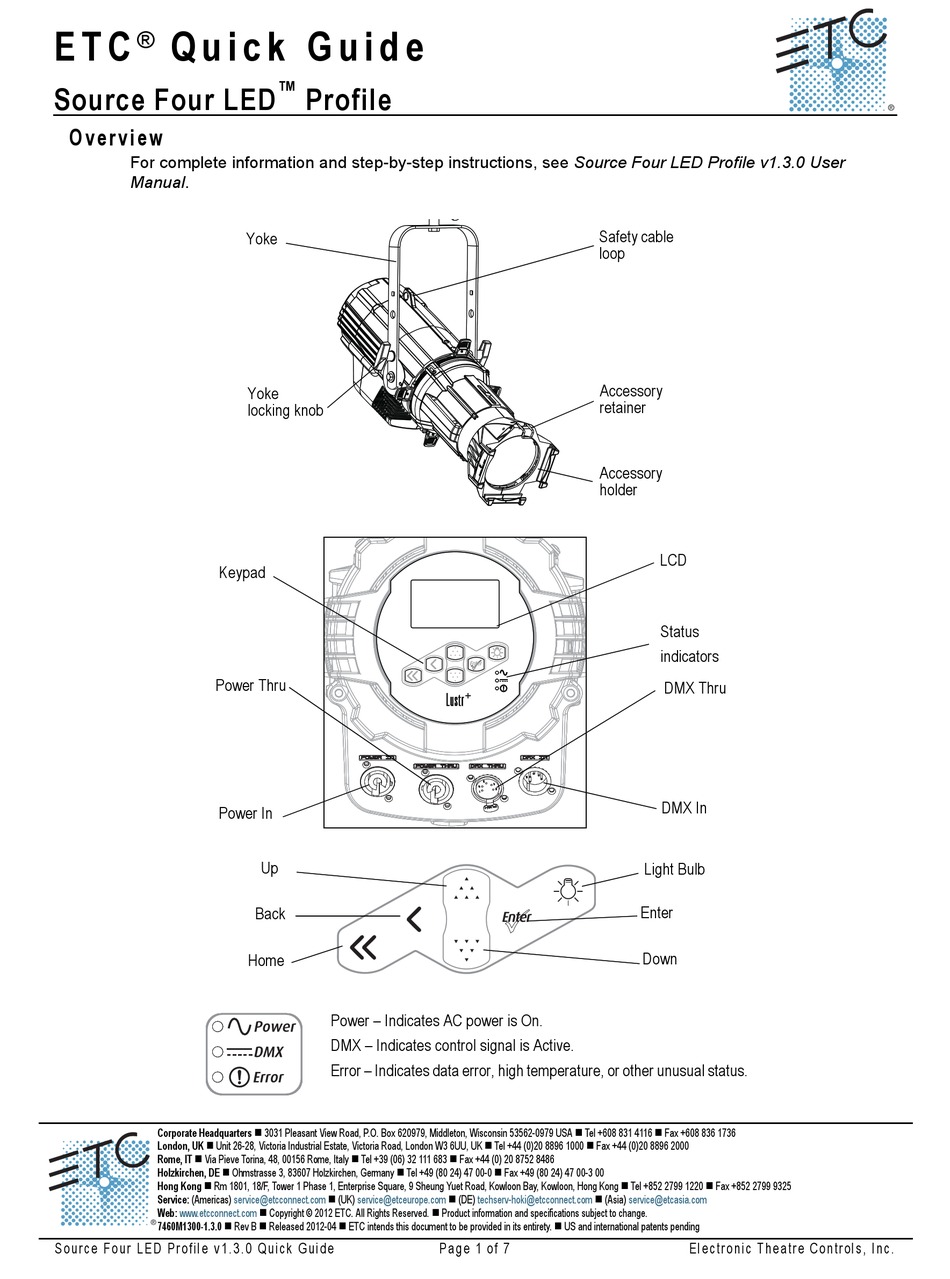

E T C
Q u i c k G u i d e
®
Source Four LED
O v e r v i e w
For complete information and step-by-step instructions, see Source Four LED Profile v1.3.0 User
Manual.
Keypad
Power Thru
Power In
Corporate Headquarters 3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA Tel +608 831 4116 Fax +608 836 1736
London, UK Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK Tel +44 (0)20 8896 1000 Fax +44 (0)20 8896 2000
Rome, IT Via Pieve Torina, 48, 00156 Rome, Italy Tel +39 (06) 32 111 683 Fax +44 (0) 20 8752 8486
Holzkirchen, DE Ohmstrasse 3, 83607 Holzkirchen, Germany Tel +49 (80 24) 47 00-0 Fax +49 (80 24) 47 00-3 00
Hong Kong Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Tel +852 2799 1220 Fax +852 2799 9325
Service: (Americas)
service@etcconnect.com
Web:
www.etcconnect.com
7460M1300-1.3.0 Rev B Released 2012-04 ETC intends this document to be provided in its entirety. US and international patents pending
Sou rc e Fo ur LED Pr o fi le v1. 3. 0 Qu ic k Gui de
™
Profile
Yoke
Yoke
locking knob
Up
Back
Home
Power – Indicates AC power is On.
DMX – Indicates control signal is Active.
Error – Indicates data error, high temperature, or other unusual status.
(UK)
service@etceurope.com
Copyright © 2012 ETC. All Rights Reserved. Product information and specifications subject to change.
Safety cable
loop
Accessory
retainer
Accessory
holder
(DE)
techserv-hoki@etcconnect.com
(Asia)
Pag e 1 of 7
LCD
Status
indicators
DMX Thru
DMX In
Light Bulb
Enter
Down
service@etcasia.com
El ect r on ic T he at r e Con t ro ls , I nc .
Advertisement
Table of Contents
Related Manuals for ETC Source Four LED Profile
Summary of Contents for ETC Source Four LED Profile
-
Page 1: Accessory Holder
Copyright © 2012 ETC. All Rights Reserved. Product information and specifications subject to change. 7460M1300-1.3.0 Rev B Released 2012-04 ETC intends this document to be provided in its entirety. US and international patents pending Sou rc e Fo ur LED Pr o fi le v1. - Page 2 Step 2: Attach safety cable. Step 3: Insert additional accessories such as a top hat, etc. W A R N I N G : Use only hardware rated for total weight of fixture and accessories. A safety cable (or other approved safety device) must be securely attached to the safety cable loop before loosening the clamp.
- Page 3 Link additional fixtures via Power Thru and DMX Thru connectors. W A R N I N G : No more than nine Source Four LED fixtures per circuit (non-dimming, 100 to 240 VAC, 50/60 Hz) Up to 32 device loads on the DMX daisy-chain.
-
Page 4: Soft Focus Diffuser
Individual features and settings are adjustable under the Advanced menu. Consult the User Manual for more information on advanced features of Source Four LED fixtures. Sou rc e Fo ur LED Pr of i le v 1. 3. 0 Qu ic k Gui de Page 4 of 7 El ect r on ic T he at r e Con tr o ls , I nc. -
Page 5: Quick Setups
E T C S o u r c e F o u r L E D Q u i c k G u i d e Quick Setups Q u i c k S e t u p s Lustr + Quick Setup Features Recommended For:... - Page 6 E T C S o u r c e F o u r L E D Q u i c k G u i d e Quick Setups Tung st en and Daylight Quick Setup Features Recommended For: Linear dimming, simple standalone operation Video or film lighting, installations without Studio via the UI.
- Page 7 E T C S o u r c e F o u r L E D Q u i c k G u i d e DMX Profiles D M X P r o f i l e s Tung st en and Daylight Channel Control Intensity...
