Mount the Fixture

Mount the fixture using appropriate hardware. If necessary, adjust the yoke position to
accommodate a low-clearance mount.
Adjust the Yoke Position
1. Remove the yoke tilt-locks, washers, and hex bolts from both sides of the fixture.
2. Remove the antenna storage accessory on the side of the yoke, and retain for future use.
Store the Antenna on page 28
See
3. Raise or lower the fixture to the desired position within the yoke.
4. Reinstall the hex bolts, washers, and tilt-locks.
5. Tighten the yoke tilt-locks to secure the fixture in position.
yoke position

Connect Power and Data

If you ordered a Source Four fixture without a power connector, first see
Connector (If Needed) on the next page
1. Attach 5-pin XLR cable to the DMX In connector (A)
if you are using external control.
2. Plug the XLR cable (if using) into the DMX source or
data daisy-chain.
3. Use the Power Thru and DMX Thru connectors (B) to
connect other fixtures using the following
guidelines:
Link up to 5 fixtures via Power Thru connector
•
when used with R20 Relay Module, ER15 Relay
Module, or Unison Echo Relay Panel (consult
breaker-trip curves when used with other
equipment). When linking fixtures, do not exceed
the rating of the power connectors (20 A in
120 V/60 Hz regions and 16 A in 240 V/50 Hz
regions).
Link up to 32 device loads on the DMX daisy chain. Source Four LED Series 3 fixtures
•
are self-terminating when a DMX cable is not connected to the DMX Thru connector.
4. Supply power to the fixture by attaching the power cable to the Power In connector (C),
and then plugging the power cable into AC power (100–240 VAC, 50/60 Hz) on a non-
dimmable circuit.
Set Up and Focus the Fixture

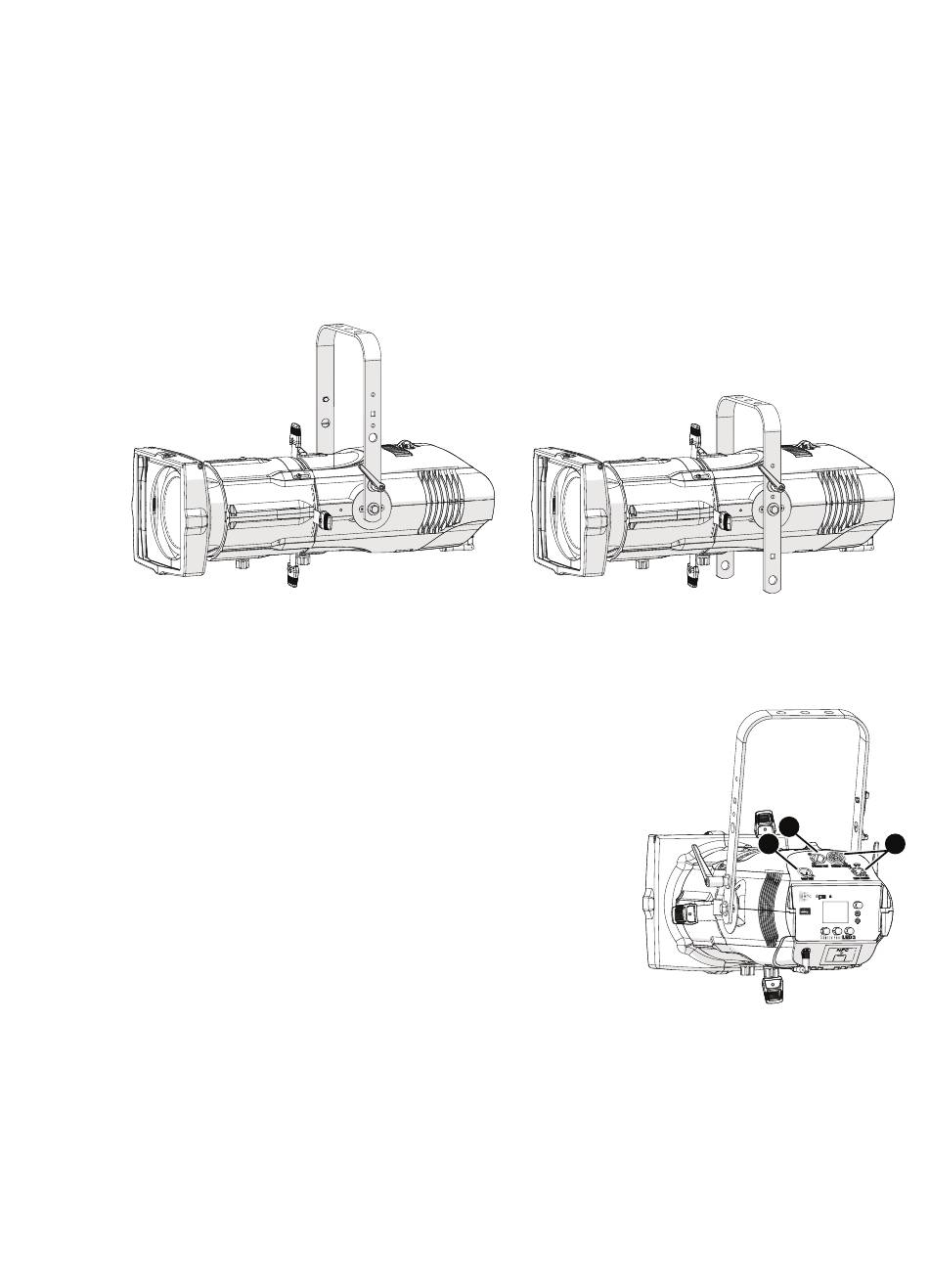

Standard
.
