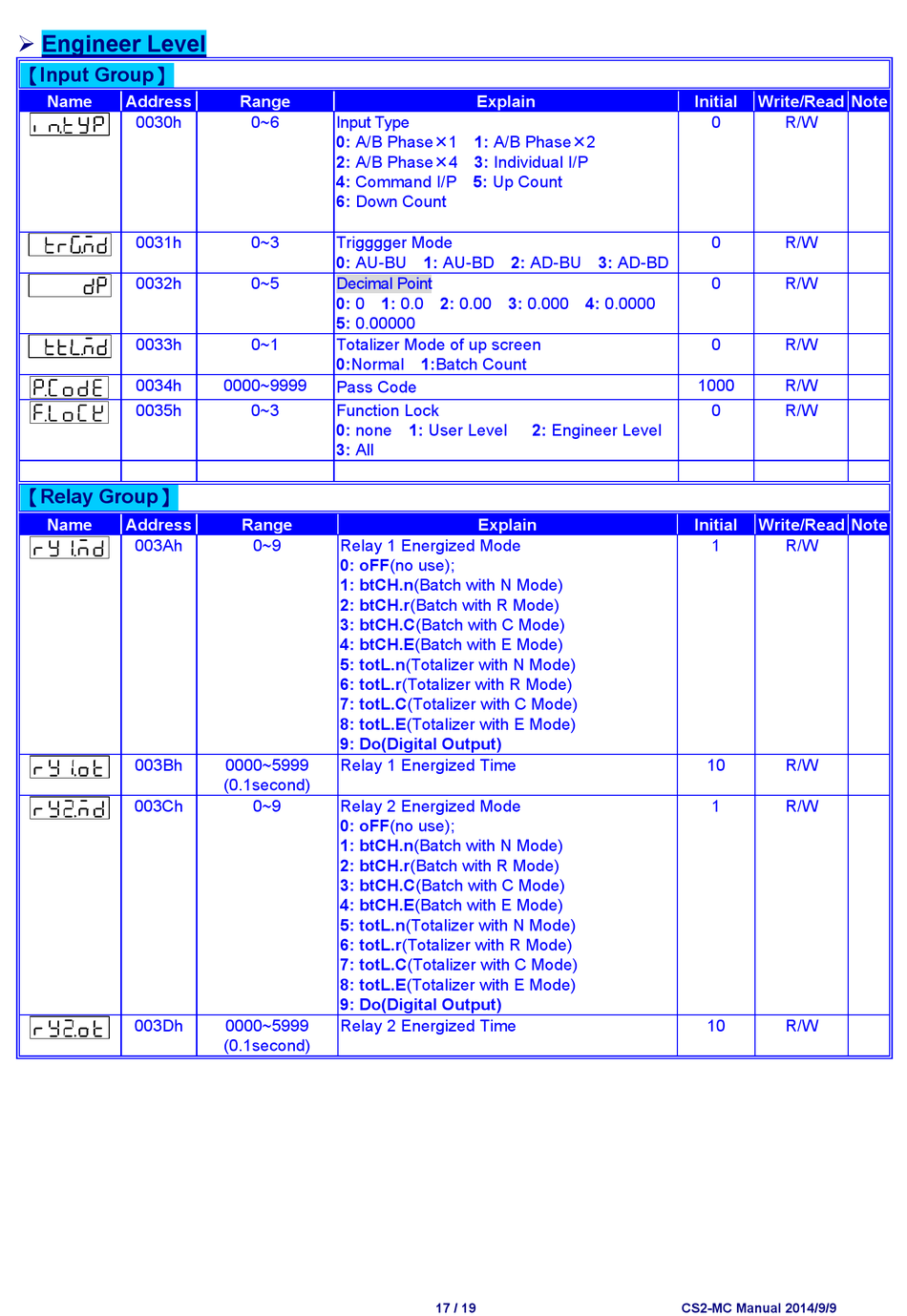

 Engineer Level
【Input Group】
Name Address
0030h
0031h
0032h
0033h
0034h
0035h

【Relay Group】

Name Address
003Ah
003Bh
003Ch
003Dh
Range
0~6 Input Type
0: A/B Phase1 1: A/B Phase2
2: A/B Phase4 3: Individual I/P
4: Command I/P 5: Up Count
6: Down Count
0~3 Trigggger Mode
0: AU-BU 1: AU-BD 2: AD-BU 3: AD-BD
0~5 Decimal Point
0: 0 1: 0.0 2: 0.00 3: 0.000 4: 0.0000
5: 0.00000
0~1 Totalizer Mode of up screen
0:Normal 1:Batch Count
0000~9999
Pass Code
0~3 Function Lock
0: none 1: User Level
3: All
Range
0~9 Relay 1 Energized Mode
0: oFF(no use);
1: btCH.n(Batch with N Mode)
2: btCH.r(Batch with R Mode)
3: btCH.C(Batch with C Mode)
4: btCH.E(Batch with E Mode)
5: totL.n(Totalizer with N Mode)
6: totL.r(Totalizer with R Mode)
7: totL.C(Totalizer with C Mode)
8: totL.E(Totalizer with E Mode)
9: Do(Digital Output)
0000~5999 Relay 1 Energized Time
(0.1second)
0~9 Relay 2 Energized Mode
0: oFF(no use);
1: btCH.n(Batch with N Mode)
2: btCH.r(Batch with R Mode)
3: btCH.C(Batch with C Mode)
4: btCH.E(Batch with E Mode)
5: totL.n(Totalizer with N Mode)
6: totL.r(Totalizer with R Mode)
7: totL.C(Totalizer with C Mode)
8: totL.E(Totalizer with E Mode)
9: Do(Digital Output)
Relay 2 Energized Time
0000~5999
(0.1second)
Explain
2: Engineer Level
Explain
17 / 19
Initial Write/Read Note
0 R/W
0 R/W
0 R/W
0 R/W
1000 R/W
0 R/W
Initial Write/Read Note
1 R/W
10 R/W
1 R/W
10 R/W
CS2-MC Manual 2014/9/9
