STM32L151xC/C-A STM32L152xC/C-A
Pin descriptions

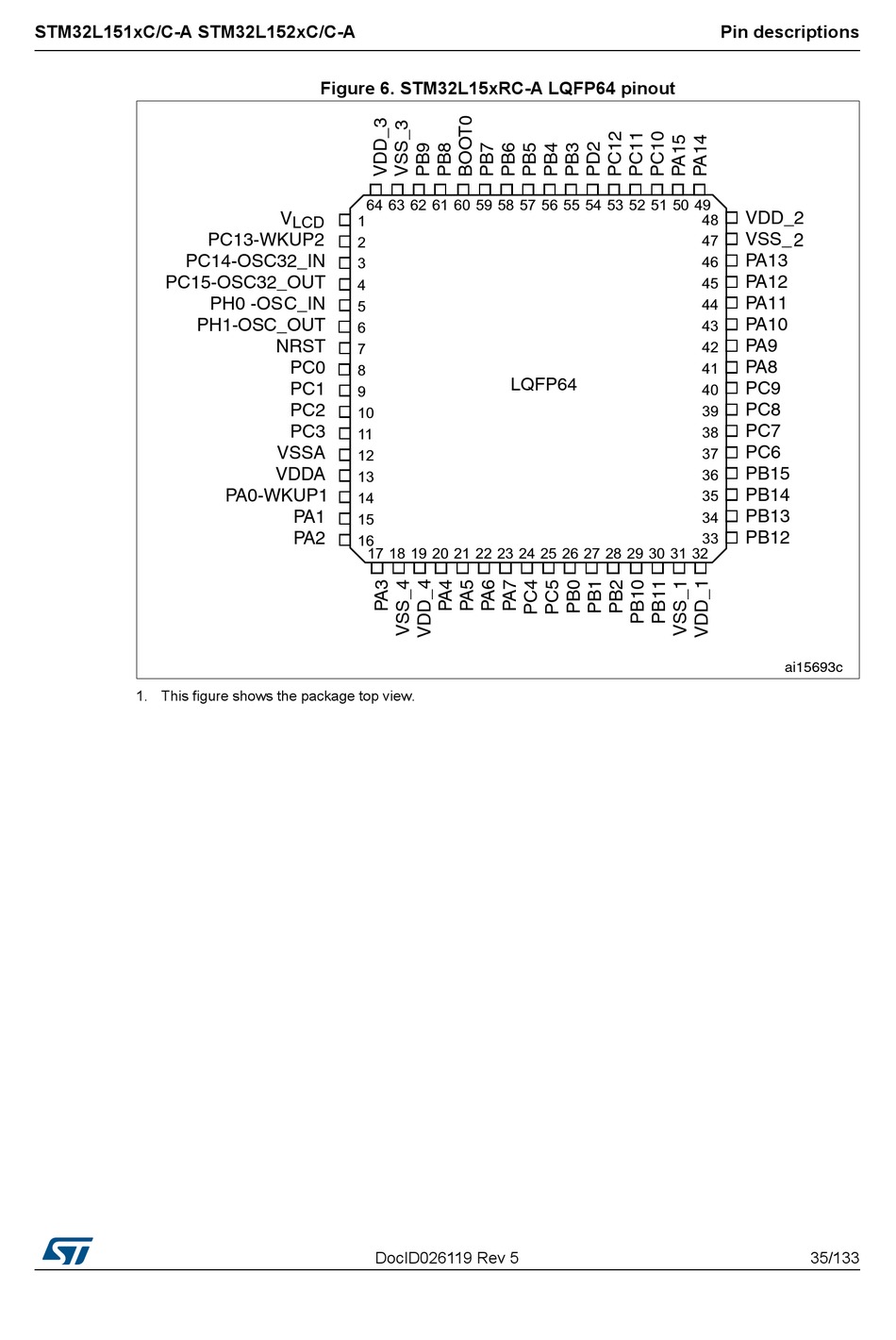

Figure 6. STM32L15xRC-A LQFP64 pinout
1. This figure shows the package top view.
