STM32L151xC/C-A STM32L152xC/C-A

Electrical characteristics

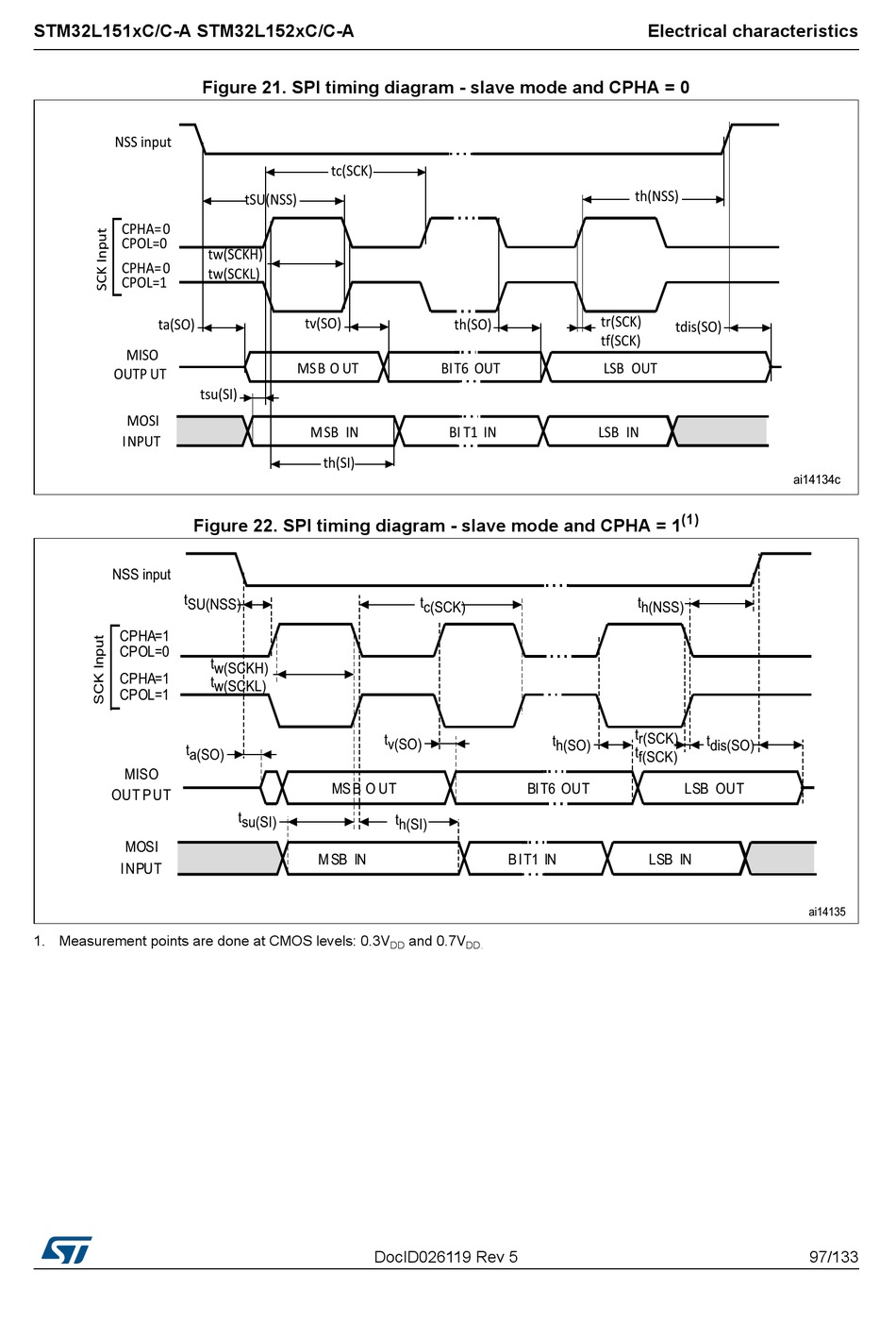

Figure 21. SPI timing diagram - slave mode and CPHA = 0

(1)

1. Measurement points are done at CMOS levels: 0.3V

and 0.7V

DD.

DocID026119 Rev 5

97/133

113
