STM32L151xC/C-A STM32L152xC/C-A
7.4 UFBGA132, 7 x 7 mm, 132-ball ultra thin, fine-pitch ball grid
array package information

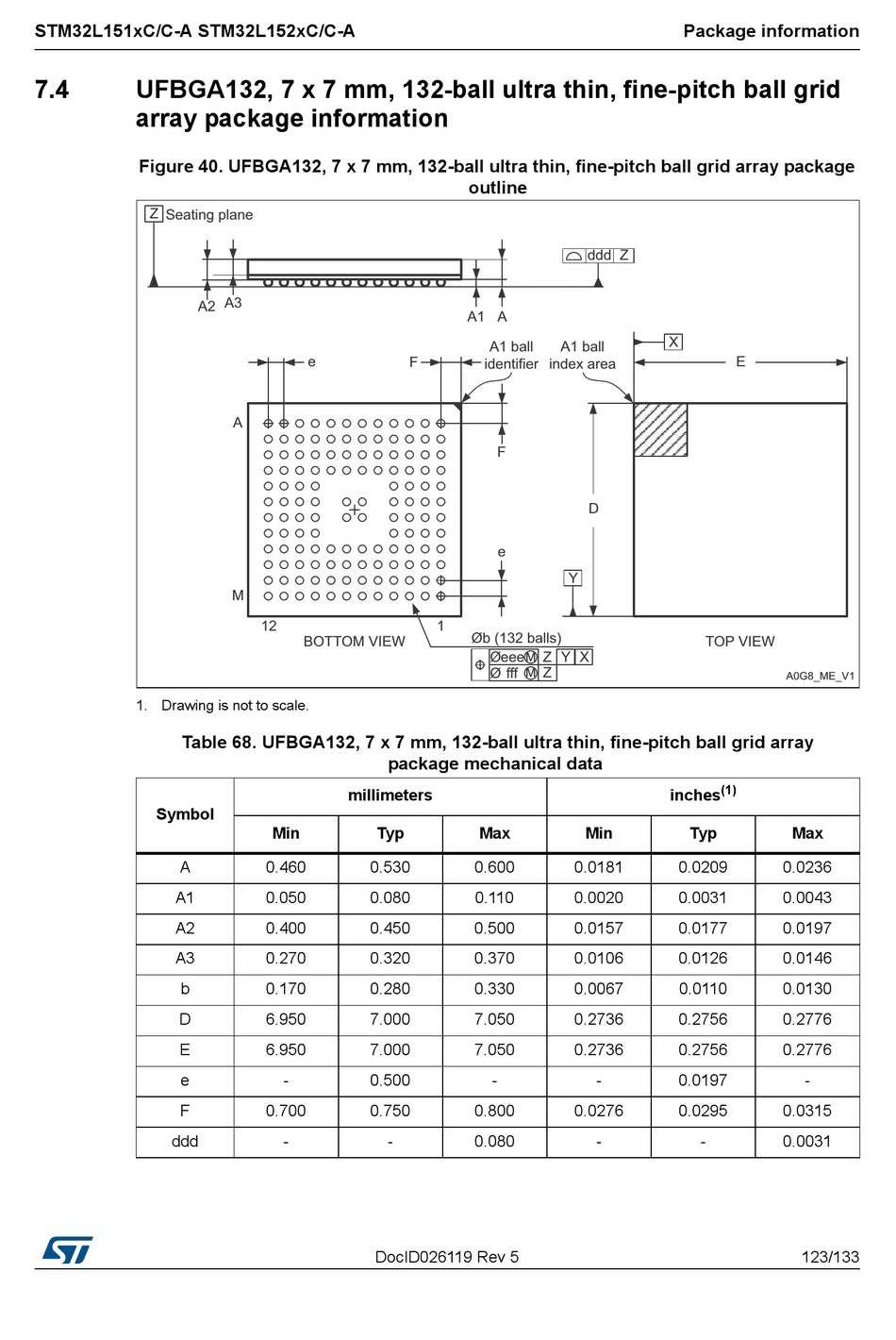

Figure 40. UFBGA132, 7 x 7 mm, 132-ball ultra thin, fine-pitch ball grid array package
1. Drawing is not to scale.

Table 68. UFBGA132, 7 x 7 mm, 132-ball ultra thin, fine-pitch ball grid array

Symbol
A
A1
A2
A3
b
D
E
e
F
ddd

package mechanical data

millimeters
Min Typ
0.460 0.530
0.050 0.080
0.400 0.450
0.270 0.320
0.170 0.280
6.950 7.000
6.950 7.000
- 0.500
0.700 0.750
- -
DocID026119 Rev 5
outline
Max Min
0.600 0.0181
0.110 0.0020
0.500 0.0157
0.370 0.0106
0.330 0.0067
7.050 0.2736
7.050 0.2736
- -
0.800 0.0276
0.080 -
Package information
(1)
inches
Typ Max
0.0209 0.0236
0.0031 0.0043
0.0177 0.0197
0.0126 0.0146
0.0110 0.0130
0.2756 0.2776
0.2756 0.2776
0.0197 -
0.0295 0.0315
- 0.0031
123/133
