STM32L151xC/C-A STM32L152xC/C-A
7.2

LQFP100, 14 x 14 mm, 100-pin low-profile quad flat package

information

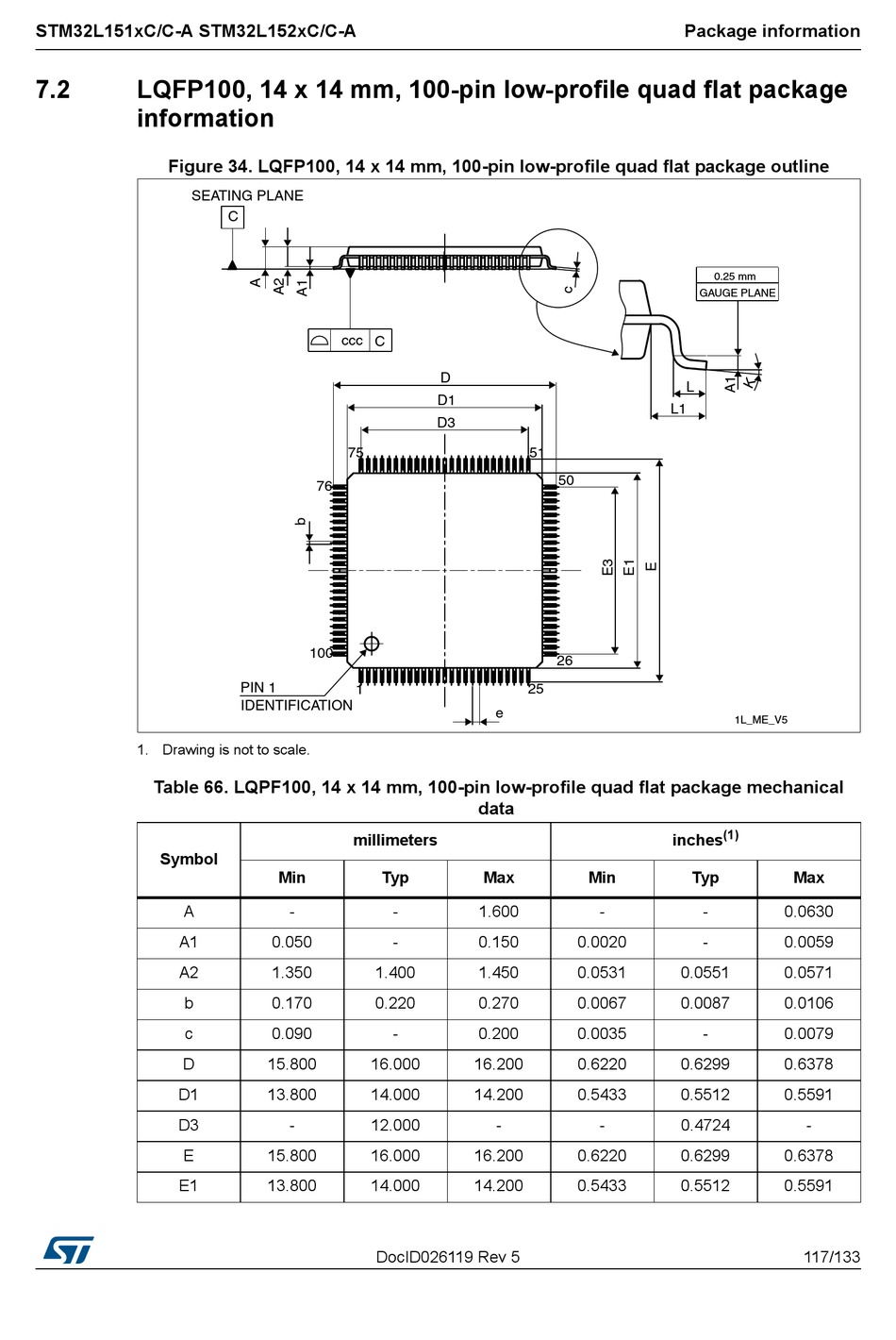

Figure 34. LQFP100, 14 x 14 mm, 100-pin low-profile quad flat package outline

1. Drawing is not to scale.
Table 66. LQPF100, 14 x 14 mm, 100-pin low-profile quad flat package mechanical
Symbol
A
A1
A2
b
c
D
D1
D3
E
E1
millimeters
Min Typ
- -
0.050 -
1.350 1.400
0.170 0.220
0.090 -
15.800 16.000
13.800 14.000
- 12.000
15.800 16.000
13.800 14.000
DocID026119 Rev 5
data
Max Min
1.600 -
0.150 0.0020
1.450 0.0531
0.270 0.0067
0.200 0.0035
16.200 0.6220
14.200 0.5433
- -
16.200 0.6220
14.200 0.5433
Package information
(1)
inches
Typ Max
- 0.0630
- 0.0059
0.0551 0.0571
0.0087 0.0106
- 0.0079
0.6299 0.6378
0.5512 0.5591
0.4724 -
0.6299 0.6378
0.5512 0.5591
117/133
