G8-S0/G3-S0-I

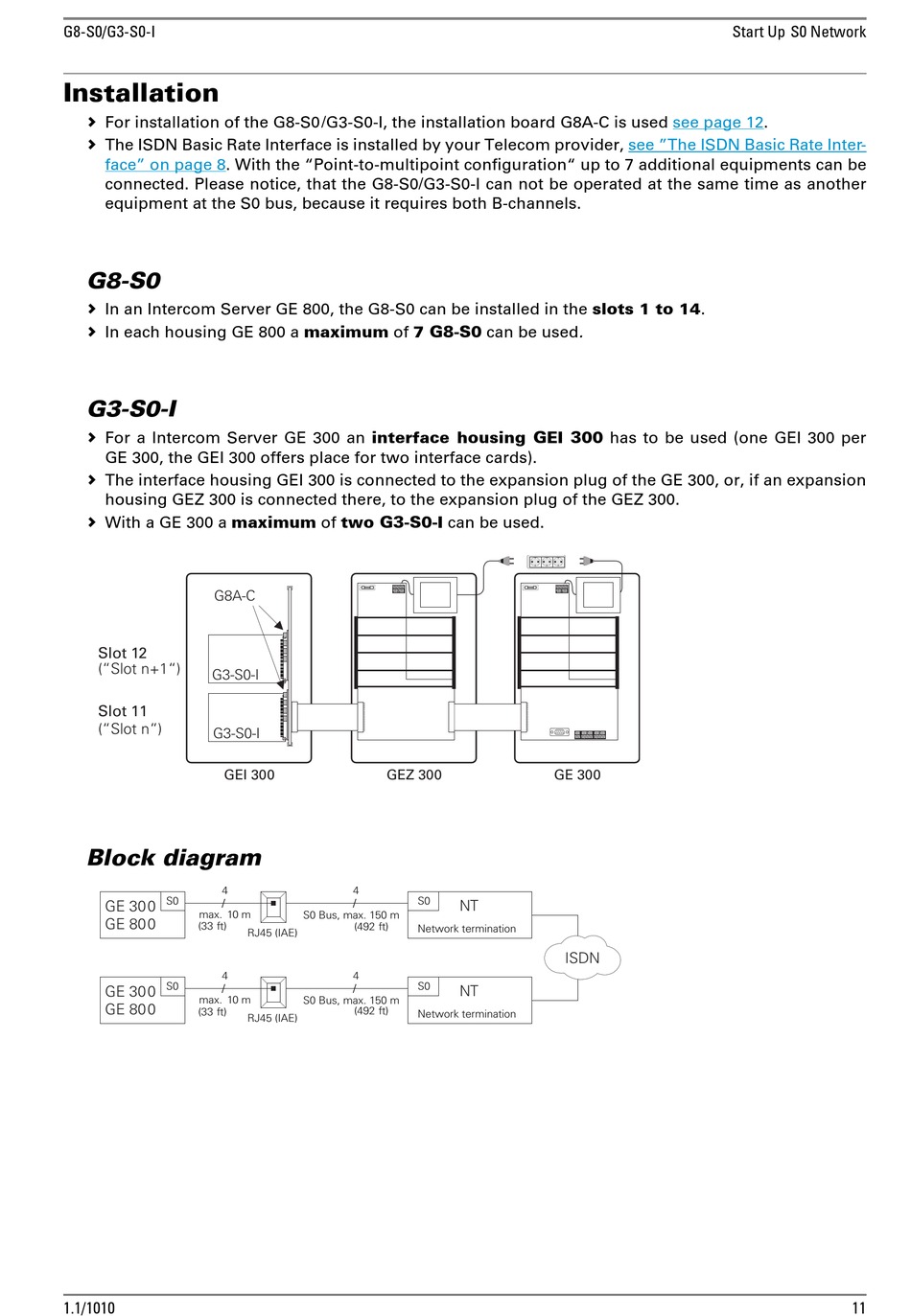

Installation

 For installation of the G8-S0/G3-S0-I, the installation board G8A-C is used
 The ISDN Basic Rate Interface is installed by your Telecom provider,
face" on page 8. With the "Point-to-multipoint configuration" up to 7 additional equipments can be
connected. Please notice, that the G8-S0/G3-S0-I can not be operated at the same time as another
equipment at the S0 bus, because it requires both B-channels.
G8-S0
 In an Intercom Server GE 800, the G8-S0 can be installed in the slots 1 to 14.
 In each housing GE 800 a maximum of 7 G8-S0 can be used.
G3-S0-I
 For a Intercom Server GE 300 an interface housing GEI 300 has to be used (one GEI 300 per
GE 300, the GEI 300 offers place for two interface cards).
 The interface housing GEI 300 is connected to the expansion plug of the GE 300, or, if an expansion
housing GEZ 300 is connected there, to the expansion plug of the GEZ 300.
 With a GE 300 a maximum of two G3-S0-I can be used.
G8A-C
Slot 12
("Slot n+1")
G3-S0-I
Slot 11
("Slot n")
G3-S0-I
GEI 300
Block diagram
4
S0
/
GE 300
max. 10 m
GE 800
(33 ft)
4
S0
/
GE 300
max. 10 m
GE 800
(33 ft)
1.1/1010
GEZ 300
4
S0
/
S0 Bus, max. 150 m
(492 ft)
Network termination
RJ45 (IAE)
4
S0
/
S0 Bus, max. 150 m
(492 ft)
Network termination
RJ45 (IAE)
see "The ISDN Basic Rate Inter-
GE 300
NT
ISDN
NT
Start Up S0 Network
see page 12.
