Telephone Interface

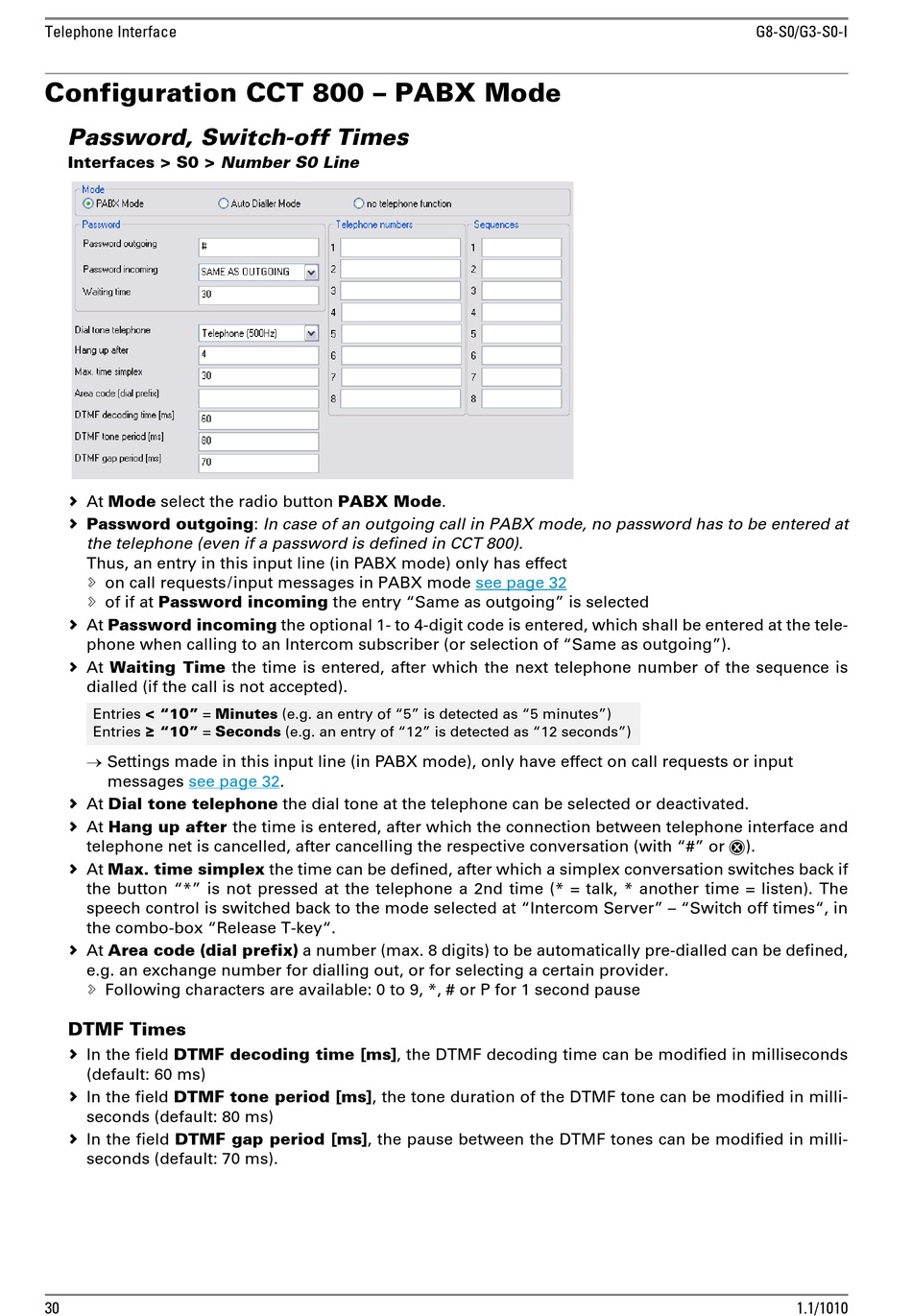

Configuration CCT 800 – PABX Mode
Password, Switch-off Times
Interfaces > S0 > Number S0 Line
 At Mode select the radio button PABX Mode.
 Password outgoing: In case of an outgoing call in PABX mode, no password has to be entered at
the telephone (even if a password is defined in CCT 800).
Thus, an entry in this input line (in PABX mode) only has effect
 on call requests/input messages in PABX mode
 of if at Password incoming the entry "Same as outgoing" is selected
 At Password incoming the optional 1- to 4-digit code is entered, which shall be entered at the tele-
phone when calling to an Intercom subscriber (or selection of "Same as outgoing").
 At Waiting Time the time is entered, after which the next telephone number of the sequence is
dialled (if the call is not accepted).
Entries < "10" = Minutes (e.g. an entry of "5" is detected as "5 minutes")
Entries ≥ "10" = Seconds (e.g. an entry of "12" is detected as "12 seconds")
 Settings made in this input line (in PABX mode), only have effect on call requests or input
messages see page
 At Dial tone telephone the dial tone at the telephone can be selected or deactivated.
 At Hang up after the time is entered, after which the connection between telephone interface and
telephone net is cancelled, after cancelling the respective conversation (with "#" or X).
 At Max. time simplex the time can be defined, after which a simplex conversation switches back if
the button "*" is not pressed at the telephone a 2nd time (* = talk, * another time = listen). The
speech control is switched back to the mode selected at "Intercom Server" – "Switch off times", in
the combo-box "Release T-key".
 At Area code (dial prefix) a number (max. 8 digits) to be automatically pre-dialled can be defined,
e.g. an exchange number for dialling out, or for selecting a certain provider.
 Following characters are available: 0 to 9, *, # or P for 1 second pause
DTMF Times
 In the field DTMF decoding time [ms], the DTMF decoding time can be modified in milliseconds
(default: 60 ms)
 In the field DTMF tone period [ms], the tone duration of the DTMF tone can be modified in milli-
seconds (default: 80 ms)
 In the field DTMF gap period [ms], the pause between the DTMF tones can be modified in milli-
seconds (default: 70 ms).
30
32.
see page 32
G8-S0/G3-S0-I
1.1/1010
