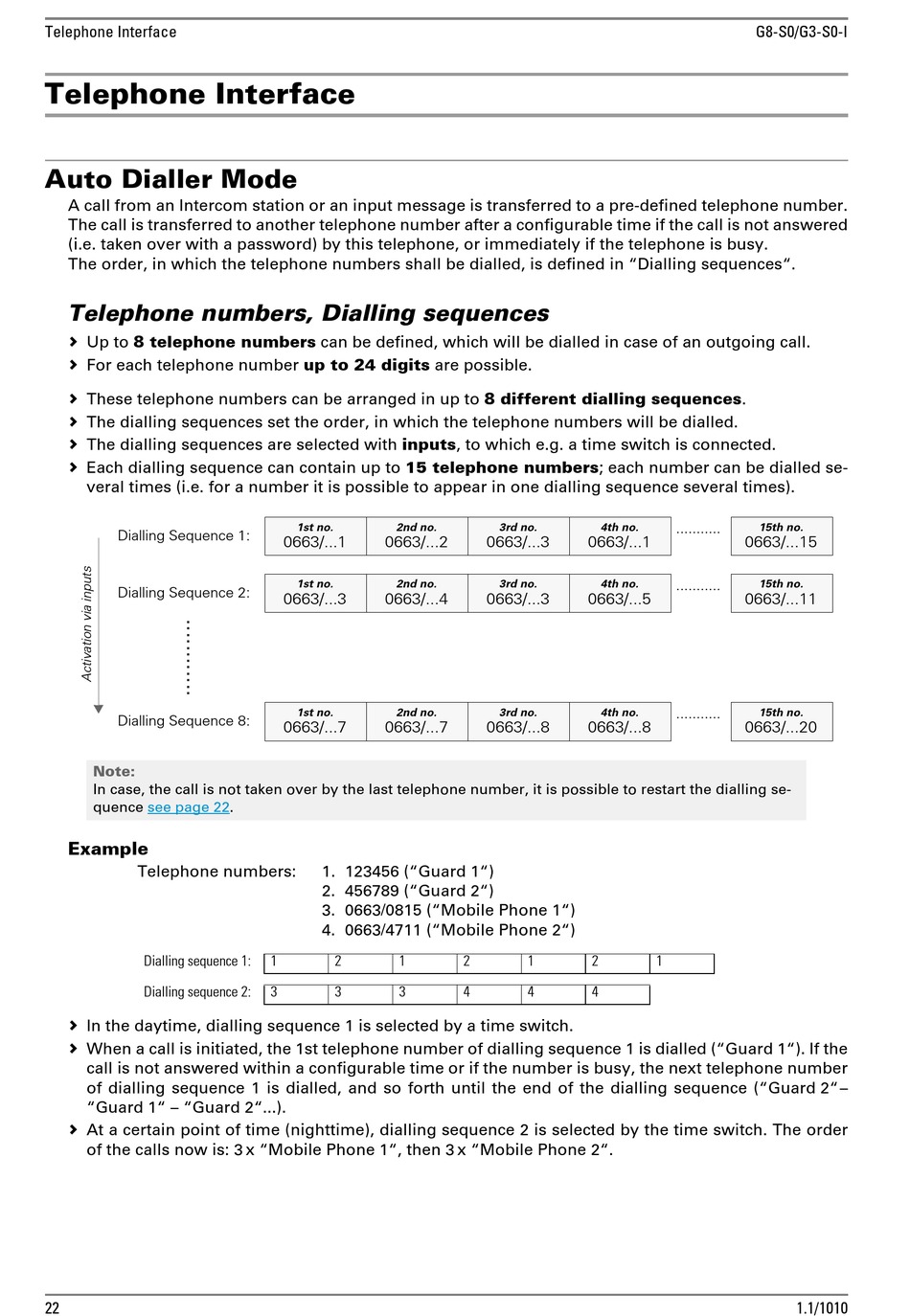

Telephone Interface

Telephone Interface

Auto Dialler Mode

A call from an Intercom station or an input message is transferred to a pre-defined telephone number.
The call is transferred to another telephone number after a configurable time if the call is not answered
(i.e. taken over with a password) by this telephone, or immediately if the telephone is busy.
The order, in which the telephone numbers shall be dialled, is defined in "Dialling sequences".
Telephone numbers, Dialling sequences
 Up to 8 telephone numbers can be defined, which will be dialled in case of an outgoing call.
 For each telephone number up to 24 digits are possible.
 These telephone numbers can be arranged in up to 8 different dialling sequences.
 The dialling sequences set the order, in which the telephone numbers will be dialled.
 The dialling sequences are selected with inputs, to which e.g. a time switch is connected.
 Each dialling sequence can contain up to 15 telephone numbers; each number can be dialled se-
veral times (i.e. for a number it is possible to appear in one dialling sequence several times).
Dialling Sequence 1:
Dialling Sequence 2:
:
:
:
:
:
:
Dialling Sequence 8:
Note:
In case, the call is not taken over by the last telephone number, it is possible to restart the dialling se-
quence see page 22.
Example
Telephone numbers:
Dialling sequence 1:
Dialling sequence 2:
 In the daytime, dialling sequence 1 is selected by a time switch.
 When a call is initiated, the 1st telephone number of dialling sequence 1 is dialled ("Guard 1"). If the
call is not answered within a configurable time or if the number is busy, the next telephone number
of dialling sequence 1 is dialled, and so forth until the end of the dialling sequence ("Guard 2"–
"Guard 1" – "Guard 2"...).
 At a certain point of time (nighttime), dialling sequence 2 is selected by the time switch. The order
of the calls now is: 3 x "Mobile Phone 1", then 3 x "Mobile Phone 2".
22
1st no. 2nd no.
0663/...1 0663/...2
1st no. 2nd no.
0663/...3 0663/...4
1st no. 2nd no.
0663/...7 0663/...7
1. 123456 ("Guard 1")
2. 456789 ("Guard 2")
3. 0663/0815 ("Mobile Phone 1")
4. 0663/4711 ("Mobile Phone 2")
1 2 1
3 3 3
3rd no. 4th no.
0663/...3 0663/...1
3rd no. 4th no.
0663/...3 0663/...5
3rd no. 4th no.
0663/...8 0663/...8
2 1 2
4 4 4
G8-S0/G3-S0-I
........... 15th no.
0663/...15
...........
15th no.
0663/...11
........... 15th no.
0663/...20
1
1.1/1010
