- Page 1 PRODUCT MANUAL ENGLISH Industrial Stations EE 8000 VERSION 3.1/0614...
- Page 2 Industrial Stations EE 8000 Manufacturer’s Reference: This equipment fulfils the requirements of the EU standard 89/336/EWG (EN 55022, EN 55024). Therefore this equipment is CE-labelled. Please keep this description in safe custody! Application: With regard to the CE mark, the Intercom Server is suitable for the following types of application: residen- tial buildings, office and commercial premises, small businesses and industrial premises with public low- voltage mains supply.
-
Page 3: Table Of Contents
Industrial Stations EE 8000 Content Planning Information Connection and Settings Features Configuration CCT 800 Concept and Components Basic Settings EE 8000 The modular Concept Button Definitions Basic and Expansion Housings Templates Modules Predefined Functions Module Positions Manual Button- / Indication Functions... -
Page 4: Planning Information
Rugged construction – IP 65 rated Connection possibility for handset Note: The volume control settings are programmed in CCT, see page Note: For technical data and system requirements please see current version of the EE 8000 datasheet. 3.1/0614... -
Page 5: Concept And Components
Industrial Stations EE 8000 Concept and Components Concept and Components The modular Concept The modular concept of this system allows a flexible, customer specific configuration of digital heavy industrial stations. There are modules for dialling, modules with inscribable direct dialling buttons, microphone modules and a loudspeaker module. -
Page 6: Basic And Expansion Housings
Concept and Components Industrial Stations EE 8000 Basic and Expansion Housings One basic and two expansion housings can be combined. Thus, industrial stations with up to 50 freely programmable direct dialling buttons can be configured. The modules (see page 7) are connected to the PCB of the housing and can be combined according to... -
Page 7: Modules
Module code: E Modules In total, 11 different modules for the modular concept of the digital heavy industrial series EE 8000 are available. For a list of possible module positions, see page Loudspeaker module EM 650 Loudspeaker module for industrial stations. - Page 8 Concept and Components Industrial Stations EE 8000 Button module EM 602 Button module with buttons 1 to 6 as part of a full keypad. The buttons can be programmed with various functions. Industrial push buttons with micro-switch. Technical data: Measurements: 140 x 100 x 50 mm (5.5 x 3.9 x 2 in)
- Page 9 Industrial Stations EE 8000 Concept and Components Button module EM 605 Button module with 6 LED direct dialling buttons. The buttons can be programmed with various functions. For labelling of the buttons exchangeable tags are included. Industrial push buttons with micro-switch.
- Page 10 Concept and Components Industrial Stations EE 8000 Microphone module EM 681 Microphone module with universal microphone, 1 LED button and a big red mushroom button with “SOS“ print. The DSP provides the possibility, to have a single microphone working for omnidirectio- nal and noise-cancelling characteristics.
-
Page 11: Module Positions
Industrial Stations EE 8000 Concept and Components Module Positions ..Module can be used in the respective module place. ..Module cannot be used in the respective module place..connected to EE 8999M ..not possible in combination with EM 660, EM 6B0... -
Page 12: Standard Stations

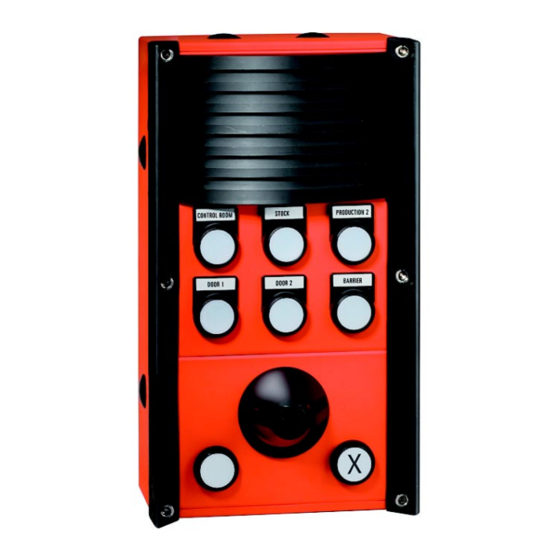

Concept and Components Industrial Stations EE 8000 Standard Stations 4 different standard stations of the digital heavy industrial stations series EE 8000 are available. Industrial station EE 8158M Industrial master station with 6 programmable LED direct dialling buttons, as well as integrated loudspeaker, universal microphone and 2 programmable LED buttons. - Page 13 Industrial Stations EE 8000 Concept and Components Industrial station EE 8238M Industrial master station with a programmable full keypad, universal microphone and 2 programmable LED buttons. The DSP provides the possibility, to use a single microphone with omnidirectional and noise-cancelling characteristics.
-
Page 14: Installation
Installation Industrial Stations EE 8000 Installation Measurements Measuring units in mm (inch), not scale! 60 (2.36) 175 (6.89) / 177 (6.97) with covers 120 (4.72) (0.08) 65 (2.56) 173 (6.81) 86 (3.39) 50 (1.97) 0.79 60 (2.36) 3.1/0614... -
Page 15: Mounting Notes
Industrial Stations EE 8000 Installation Industrial station with microphone module etc.: Measuring units in mm (inch), not scale! Mounting Notes Regardless if a single industrial station or a combination of stations in vertical or horizontal order is used: The station(s) shall be mounted in a way, that the microphone is about 1.40 m (4.6 ft) above the floor. -
Page 16: Mounting Instruction "Combination Of Housings
Installation Industrial Stations EE 8000 Outdoor mounting In case of outdoor mounting, it is recommended to cut out the two water outlets on the bottom of the housing. Mounting instruction “combination of housings” For the mounting of housings (an EE 8999S to an EE 8999M) the mounting material EE 8999-KIT is used ... -
Page 17: Mounting Gland
Industrial Stations EE 8000 Installation Vertical direction Before mounting, the two overhead openings Put in the space ring with the flat side above have to be broken out with a blunt object! Put in the gasket into the mounting opening... -
Page 18: Mounting The Modules
Installation Industrial Stations EE 8000 Mounting the Modules General Mounting with housings Rev. “BA” max. 1.5 Nm Both sheet metal brackets Screw on sheet metal Insert sheet metal have to be used brackets and modules bracket The sheet metal brackets have to be used for the housings (EE 8999M, EE8999M-SOS, EE 8999S and EDI 600) of Rev. “BA”... - Page 19 Industrial Stations EE 8000 Installation Mounting Microphone Modules Installation of microphone modules in basic housing EE 8999M only! Use of the microphone modules in bottom module place only! Note: For use of the different microphone modules, the correct jumper positions must be set,...
-
Page 20: Connection And Settings
Connection and Settings Industrial Stations EE 8000 Connection and Settings EE 8999M: loudspeaker module handset: module place loudspeaker top position microphone OUT1 OUT1 EC300 module place centre position microphone sensitivity (preset) Intercom Server (A,B) PWR switch: OUT2 must be set for... - Page 21 Industrial Stations EE 8000 Connection and Settings Power Supply 24 – 42 V AC; connection to terminals “PWR1“ and “PWR2“. 22 – 60 V DC; connection to terminals “PWR1“ and “PWR2“. Attention: The precautions for handling with 60 V direct current must be observed! ...
- Page 22 (AWG 9) central power supply unit 230V AC 60V DC shield not + − fuse connected min. 6 mm² terminal block (AWG 9) shield connected to ground (just one side) to EE 8000 / EE 6000 (shield not connected) 3.1/0614...
- Page 23 Industrial Stations EE 8000 Connection and Settings Connection of Modules The different modules are connected with the PCB of the basic housing EE 8999M / the expansion housing EE 8999S, by means of a ribbon cable. For each module place an appropriate connector is available (module place top position / centre position / bottom position, see “Connection and...
- Page 24 Connection and Settings Industrial Stations EE 8000 Jumper for Microphone Modules For use of the different microphone modules, the correct jumper positions must be set at the 6-way pin connector on the PCB of the EE 8999M (next to the 16-way connector for the bottom position module).
- Page 25 Industrial Stations EE 8000 Connection and Settings Connection of Handset At a handset with hook-switch the microphone is only active, while the handset is lifted. This also means, that the microphone of the industrial station is deactivated, while the handset is lifted.
-
Page 26: Configuration Cct 800
The internal inputs of the EE 8000 can indicate only 2 switch steps: “Open” and “Short”. Tab General In the field Number of modules the number of (button) modules connected to the industrial station is defined (this is recognised automatically when reading out the Intercom Server). -
Page 27: Button Definitions
The most common functions (e.g. direct dialling button with indication of call requests) can easily be defined in the folder “Predefined functions” in the folder of the respective EE 8000 at “Station proper- ties”. For most applications these functions are sufficient, see ”Predefined Functions”... -
Page 28: Templates
LED Template Conversation indication Three templates can be defined for conversation indication: Subscriber > Station Properties > EE 8000 > Station > Templates > tab Conversation indication In the combo-box Conversation colour a colour can be selected for indication of conversations. -
Page 29: Predefined Functions
Predefined Functions The most common functions (e.g. direct dialling button with indication of call requests) can easily be defined in the folder “Predefined functions” in the folder of the respective EE 8000 at “Station proper- ties”. Subscriber > Station properties > EE 8000 > Station > Predefined functions > Module Attention: The term “module“... - Page 30 Configuration CCT 800 Industrial Stations EE 8000 Single button In the field “Call number / Button” the desired button is entered. In standard the button behaves as follows: The defined button is pressed and released This behavior can be changed, see ”Single button”...
-
Page 31: Manual Button- / Indication Functions
Configuration CCT 800 Manual Button- / Indication Functions Open the folder Button- / Indication function in the folder of the desired EE 8000 station. Direct dialling, Call- / Conversation indication In the field Call number the desired call number is entered. -
Page 32: Volume
Configuration CCT 800 Industrial Stations EE 8000 Volume In general an industrial station requires a lot of more volume than a normal station, e.g. because of high ambient noises. Therefore it is possible to define different volume settings for the industrial station by programming in CCT 800. - Page 33 Industrial Stations EE 8000 Configuration CCT 800 In the combo-box Reduction the volume reduction value is set. This setting defines how much the volume is reduced at level “Low“ contrary to level “High“ (0 to –9). If the checkbox Level “Low“ at start of Intercom Server is activated, then an automatic switch to level “Low“...
- Page 34 Configuration CCT 800 Industrial Stations EE 8000 Recommended Settings from praxis tests: Simplex: Loudspeaker Settings Background noise loudspeaker max. 9 internal approx. 100 dBA microphone - 15 dB maximal speaker distance to the device: 2 to 3 cm (0.79in to 1.18in)
-
Page 35: Technical Support
Industrial Stations EE 8000 Technical Support Technical Support For more information about our products and services visit: www.software-manuals.com 3.1/0614...
